Center fascia upper panel

CAUTION: Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Lower the steering wheel.

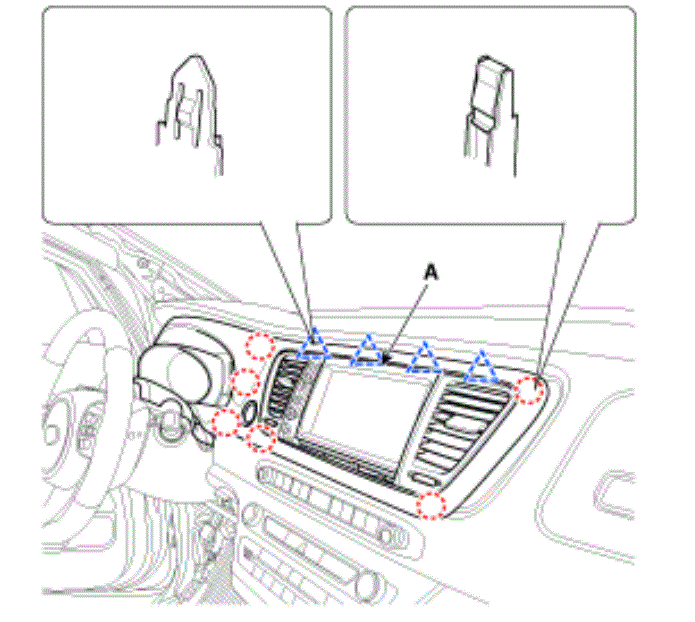

  2. Using a screwdriver or remover, remove the center fascia upper panel (A).
    G13045942Courtesy of KIA MOTORS AMERICA, INC.
    G13045943Courtesy of KIA MOTORS AMERICA, INC.

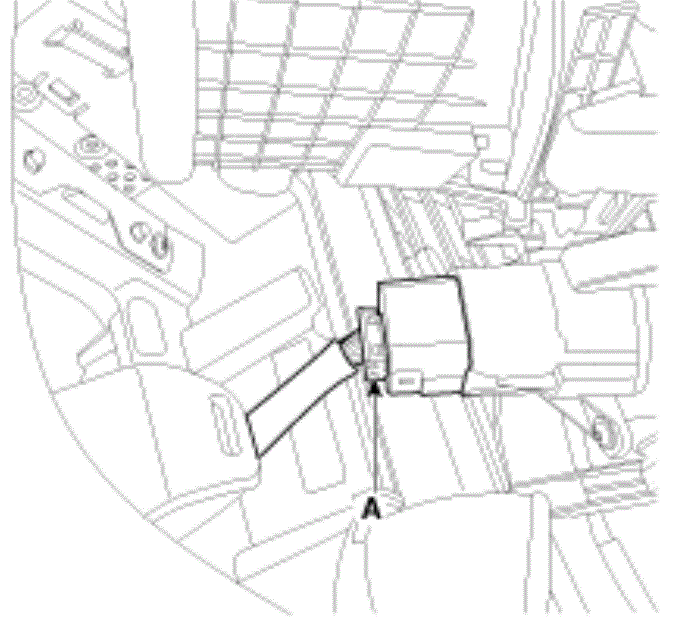

  3. Disconnect the start/stop button connector (A).
    G13045944Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
