Monitor KDS Data
WARNING: This page is about a different variant/trim than selected.
- Connect KDS to Data Link Connector (DLC).
- Ignition "ON" & Engine "ON"

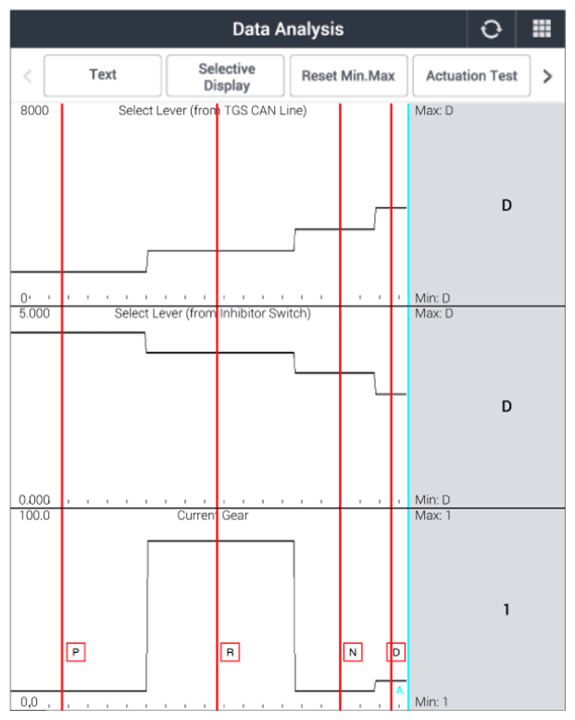

- Drive Vehicle in accordance with figure below.
- Monitor "Select Lever (from TGS CAN Line)", "Select Lever (from Inhibitor Switch)" and "Current Gear" parameters in A/T system "Current Data" with KDS.
Specification: Refer to Figure below
- Is parameter displayed within specification?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Check for Engine related DTC and perform applicable troubleshooting and then re-do this troubleshooting guide steps.
- If Engine related DTCs are corrected and the problem still occurs, go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
