Monitor DTC Status

WARNING: This page is about a different variant/trim than selected.
  1. Connect KDS to Data Link Connector (DLC).
  2. Ignition "ON"
  3. Select correct Vehicle Model, Year, and Engine Type.
  4. Select "Engine" and "A/T", "ESP" and "BCM (Cluster Module)" system.(1)

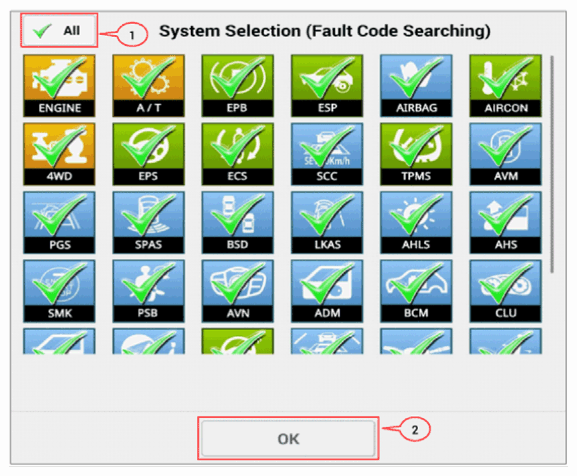

  5. Select "Fault Code Searching".(2)
    G12937459Courtesy of KIA MOTORS AMERICA, INC.

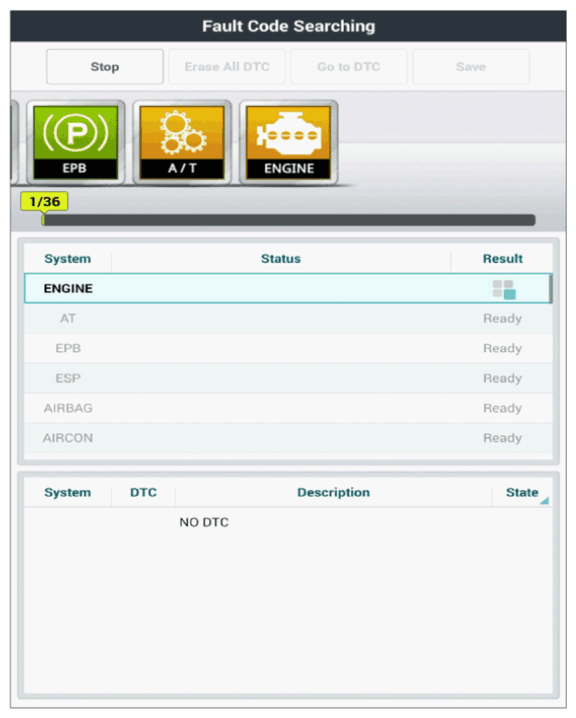

  6. Monitor DTCs in selected systems.
    G12937460Courtesy of KIA MOTORS AMERICA, INC.
  7. Does selected system have any CAN related DTCs or failed to communicate via KDS?

    YES

    • Repair any CAN related DTCs first and then carefully re-do this troubleshooting guide steps.
    • If problem still occurs, go to "TERMINAL AND CONNECTOR INSPECTION " procedure.

    NO

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
