Monitor KDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect KDS to Data Link Connector (DLC).
  2. Engine "ON"
  3. Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition.
  4. Monitor "Input Speed 1, 2", "Shift Lever Switch", "Current Gear" and "Engine RPM" parameter in "Current Data" with KDS.

    Specification:  Refer to Figure below

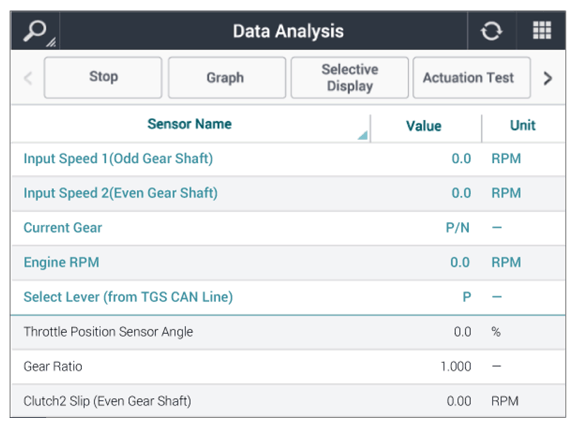

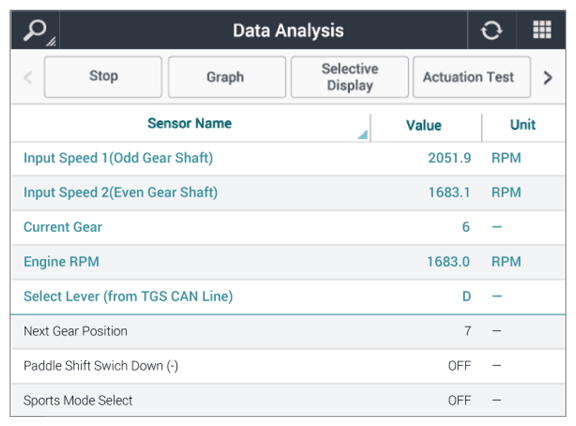

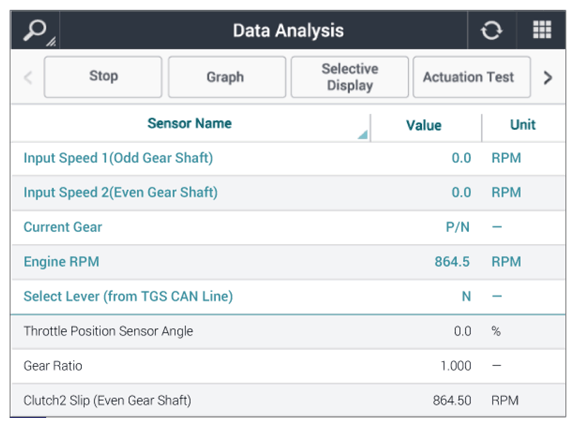

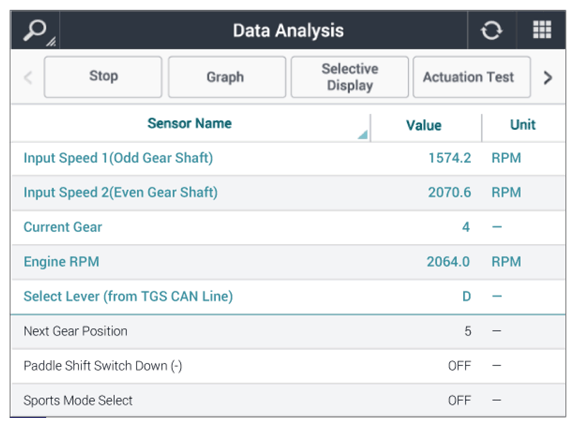

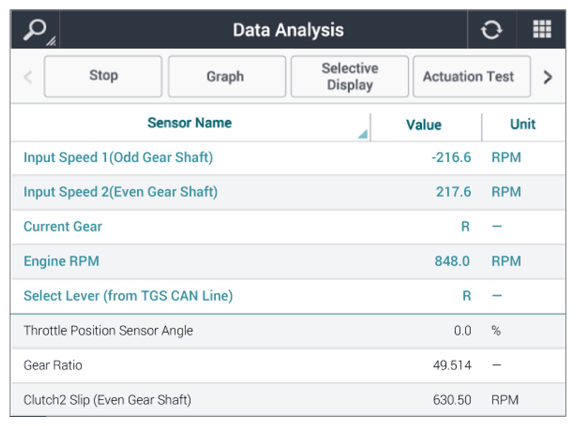

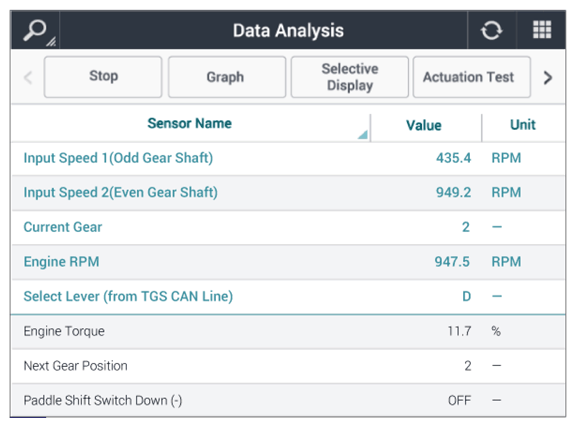

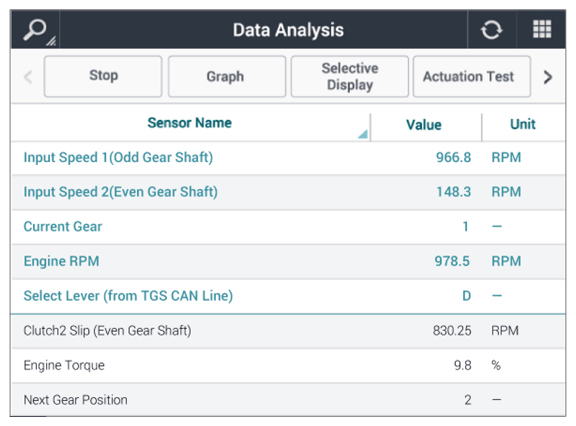

    G12937434Courtesy of KIA MOTORS AMERICA, INC.
    G12937435Courtesy of KIA MOTORS AMERICA, INC.
    G12937436Courtesy of KIA MOTORS AMERICA, INC.
    G12937437Courtesy of KIA MOTORS AMERICA, INC.
    G12937438Courtesy of KIA MOTORS AMERICA, INC.
    G12937439Courtesy of KIA MOTORS AMERICA, INC.
    G12937440Courtesy of KIA MOTORS AMERICA, INC.
    G12937441Courtesy of KIA MOTORS AMERICA, INC.
    G12937442Courtesy of KIA MOTORS AMERICA, INC.
    G12937443Courtesy of KIA MOTORS AMERICA, INC.
  5. Is displayed parameter within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
