Monitor KDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect KDS to Data Link Connector (DLC).
  2. Engine "ON"
  3. Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition.
  4. Monitor "Input Speed 1, 2", "Shift Lever Switch", "Current Gear" and "Engine RPM" parameter in "Current Data" with KDS.

    Specification:  Refer to Figure below

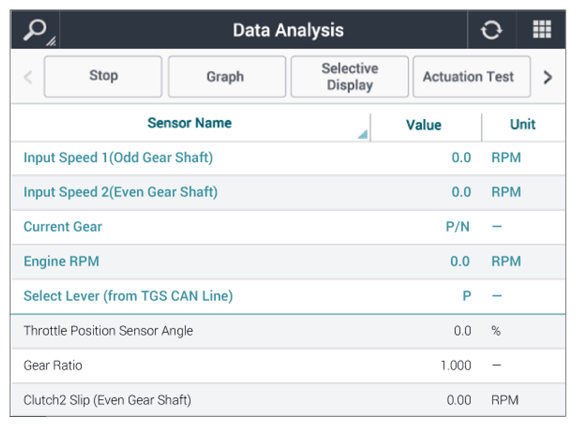

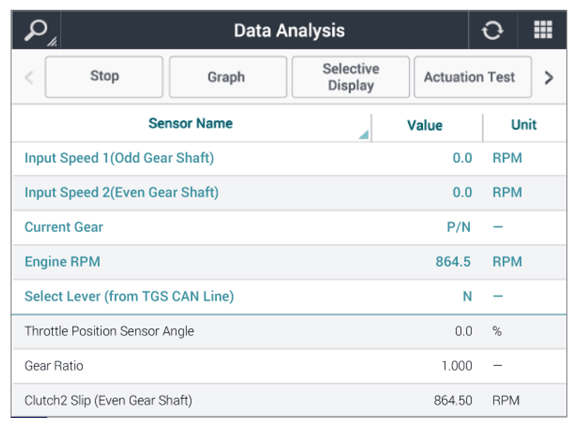

    G12937408Courtesy of KIA MOTORS AMERICA, INC.

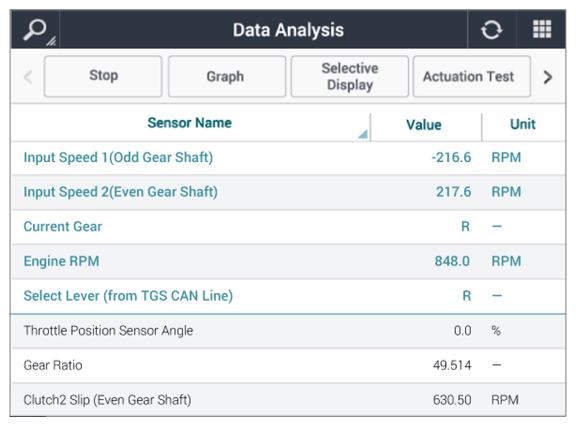

    G12937409Courtesy of KIA MOTORS AMERICA, INC.

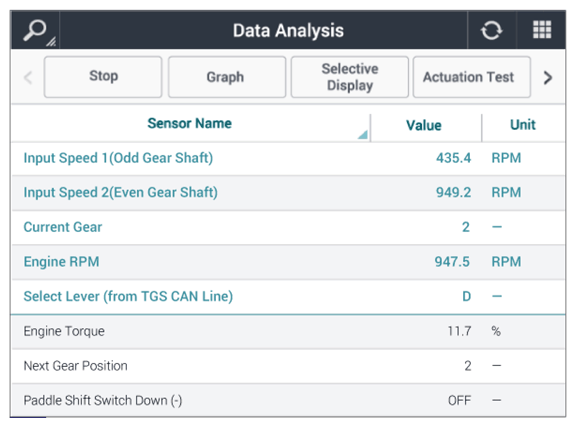

    G12937410Courtesy of KIA MOTORS AMERICA, INC.

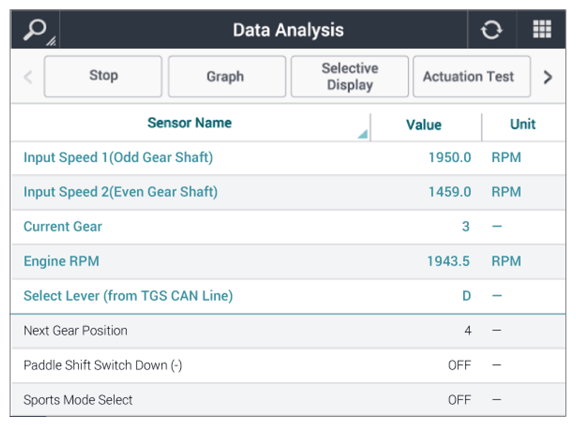

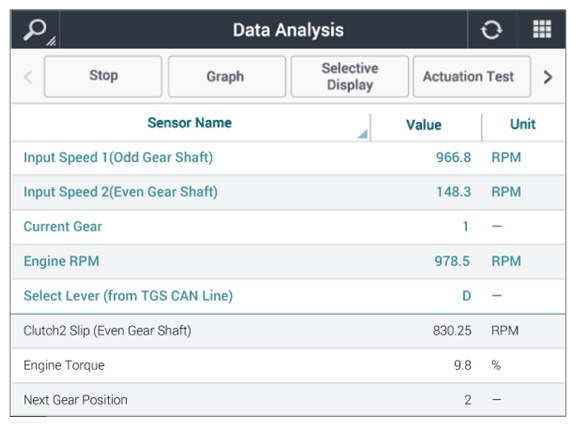

    G12937411Courtesy of KIA MOTORS AMERICA, INC.

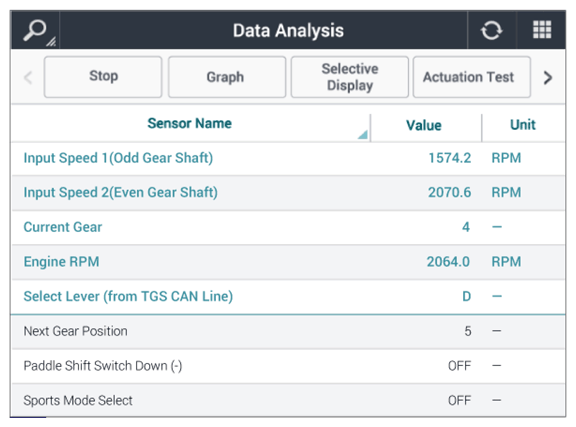

    G12937412Courtesy of KIA MOTORS AMERICA, INC.
    G12937413Courtesy of KIA MOTORS AMERICA, INC.

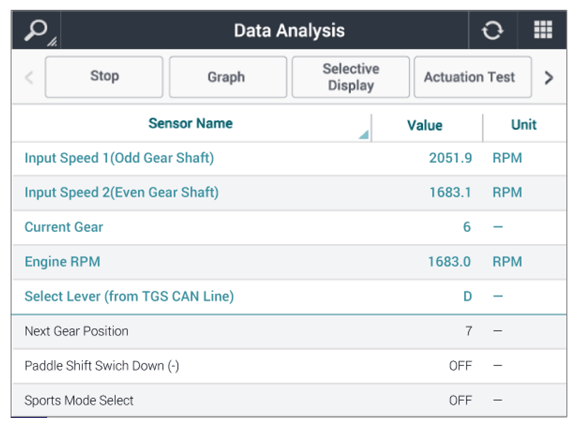

    G12937414Courtesy of KIA MOTORS AMERICA, INC.
    G12937415Courtesy of KIA MOTORS AMERICA, INC.
    G12937416Courtesy of KIA MOTORS AMERICA, INC.
    G12937417Courtesy of KIA MOTORS AMERICA, INC.
  5. Is displayed parameter within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
