Monitor KDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect KDS to Data Link Connector (DLC).
  2. Engine "ON"
  3. Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition.
  4. Monitor "Input Speed 1, 2", "Shift Lever Switch", "Current Gear" and "Engine RPM" parameter in "Current Data" with KDS.

    Specification:  Refer to Figure below

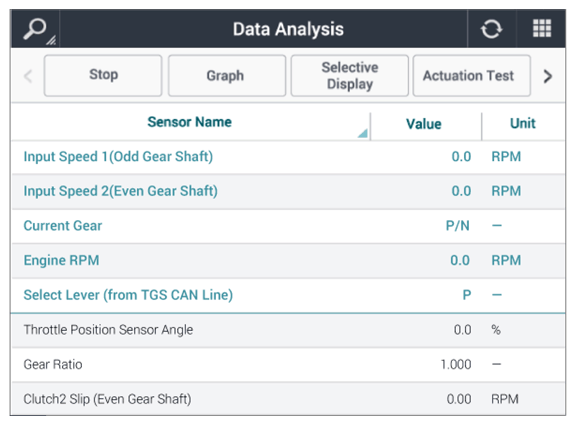

    G12937395Courtesy of KIA MOTORS AMERICA, INC.

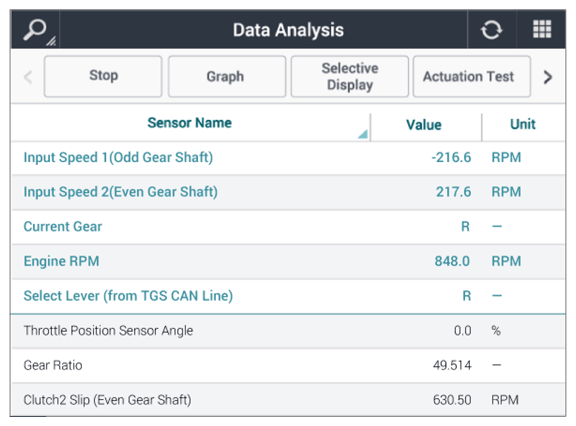

    G12937396Courtesy of KIA MOTORS AMERICA, INC.

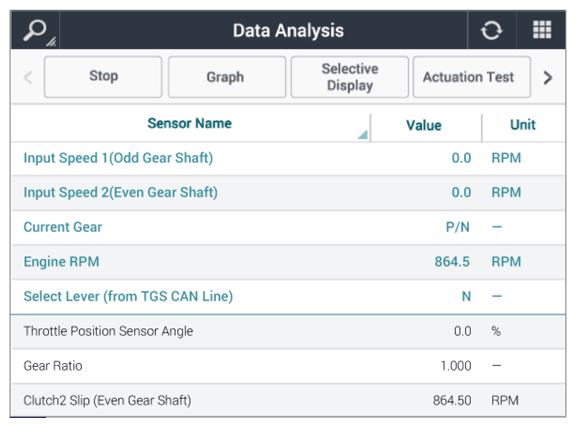

    G12937397Courtesy of KIA MOTORS AMERICA, INC.

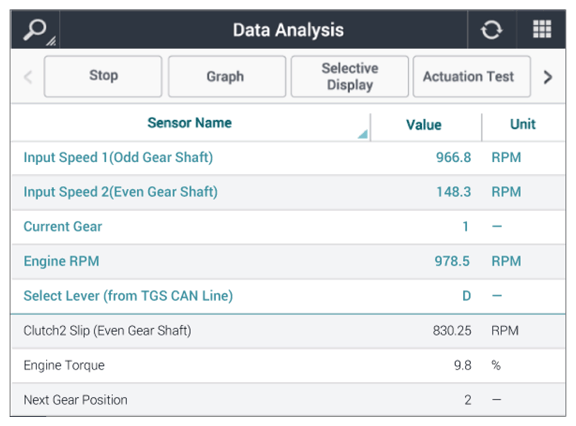

    G12937398Courtesy of KIA MOTORS AMERICA, INC.

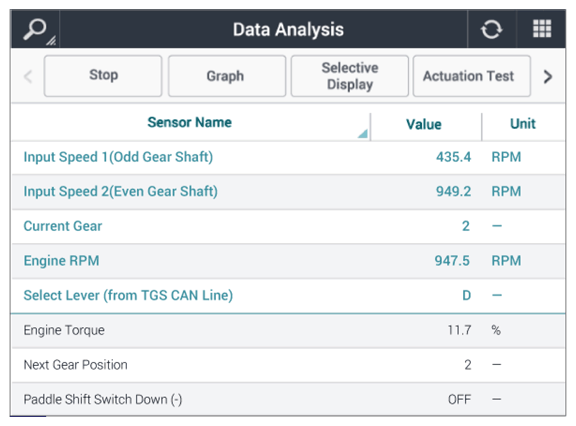

    G12937399Courtesy of KIA MOTORS AMERICA, INC.
    G12937400Courtesy of KIA MOTORS AMERICA, INC.

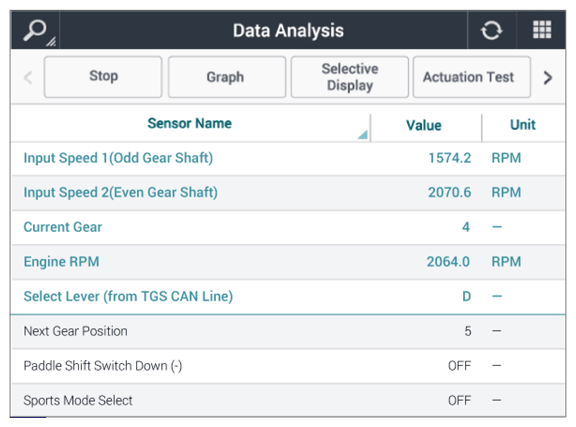

    G12937401Courtesy of KIA MOTORS AMERICA, INC.
    G12937402Courtesy of KIA MOTORS AMERICA, INC.

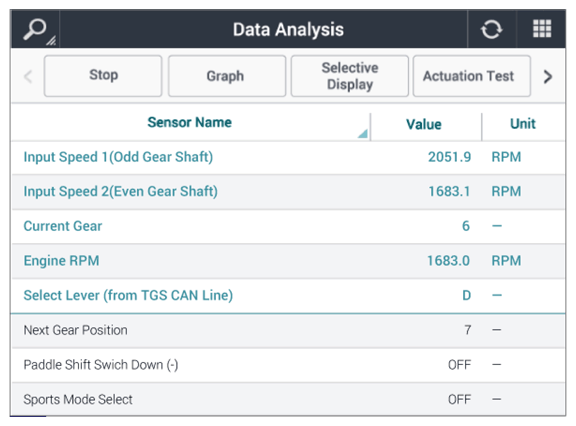

    G12937403Courtesy of KIA MOTORS AMERICA, INC.

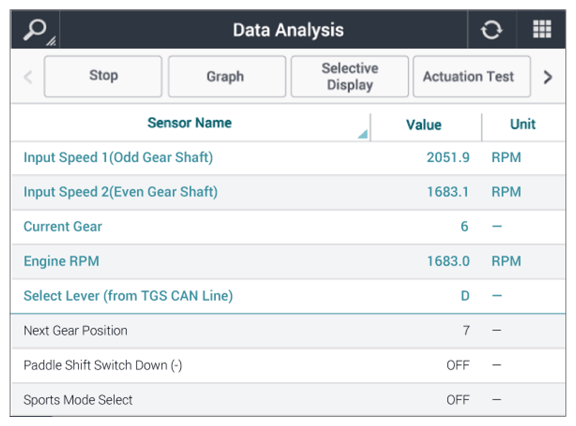

    G12937404Courtesy of KIA MOTORS AMERICA, INC.
  5. Is displayed parameter within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
