Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.

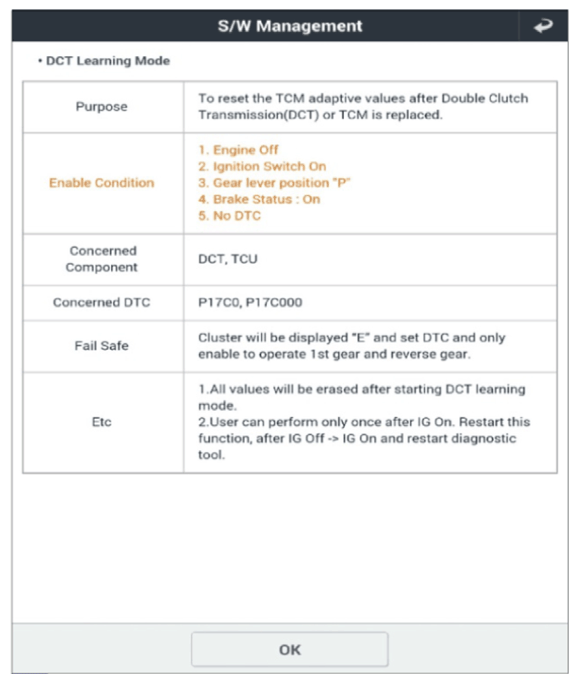

G12937383Courtesy of KIA MOTORS AMERICA, INC.

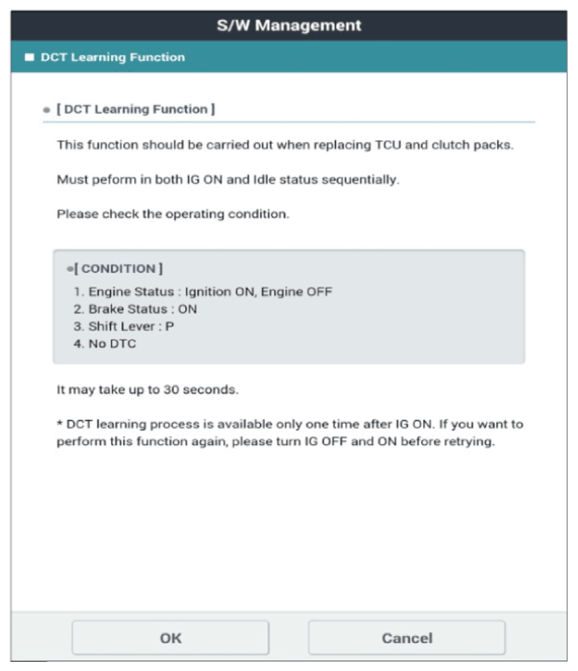

G12937384Courtesy of KIA MOTORS AMERICA, INC.

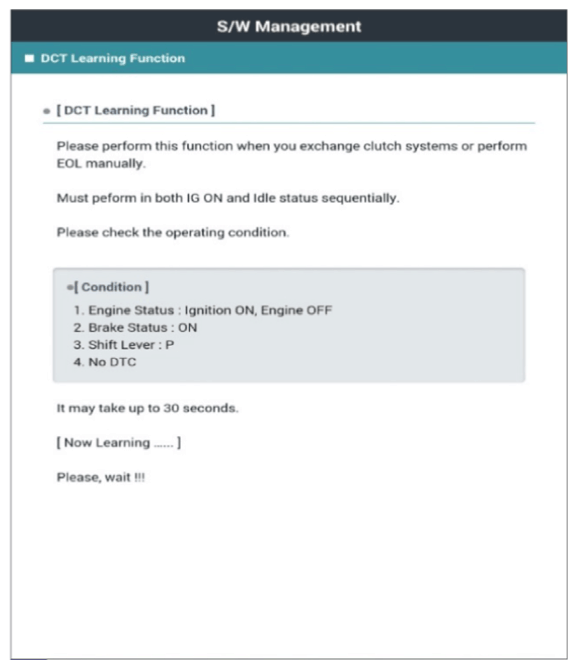

G12937385Courtesy of KIA MOTORS AMERICA, INC.

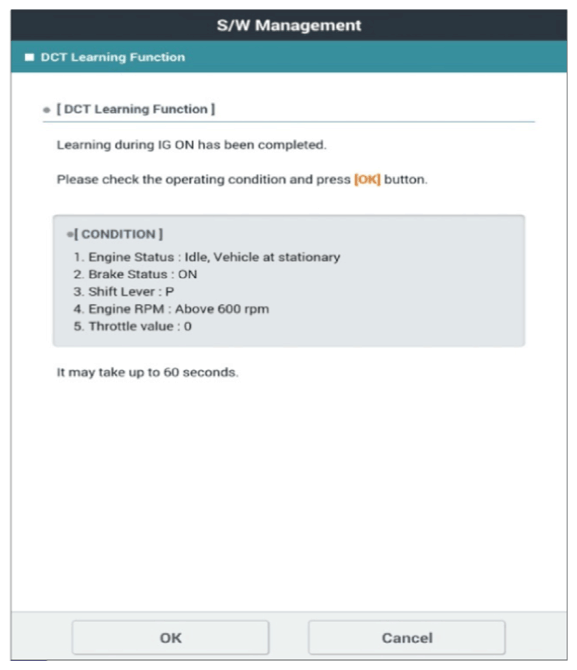

G12937386Courtesy of KIA MOTORS AMERICA, INC.

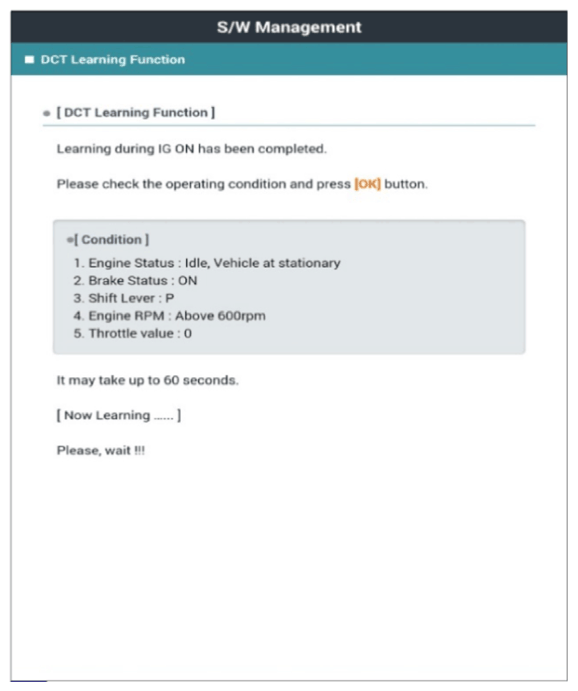

G12937387Courtesy of KIA MOTORS AMERICA, INC.

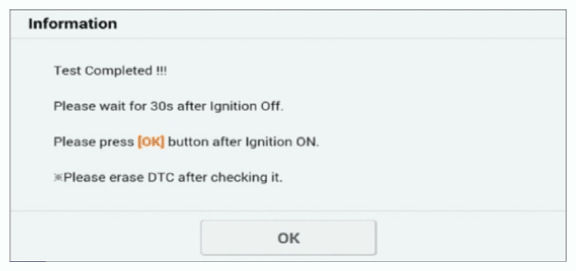

G12937388Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.

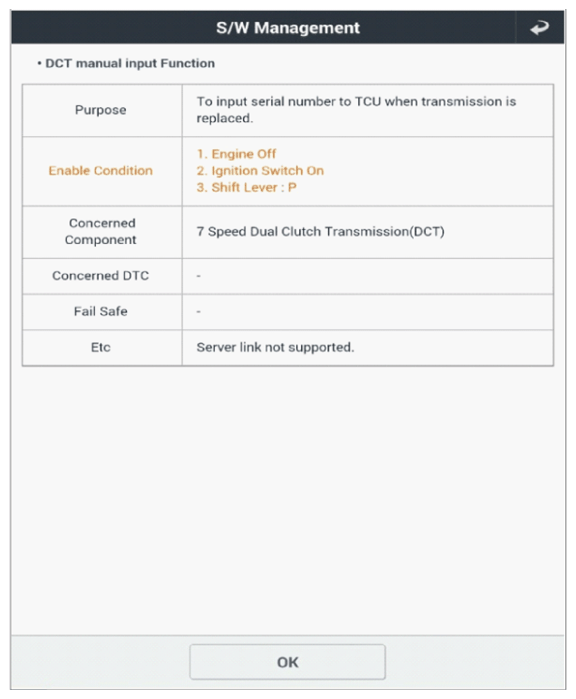

G12937389Courtesy of KIA MOTORS AMERICA, INC.

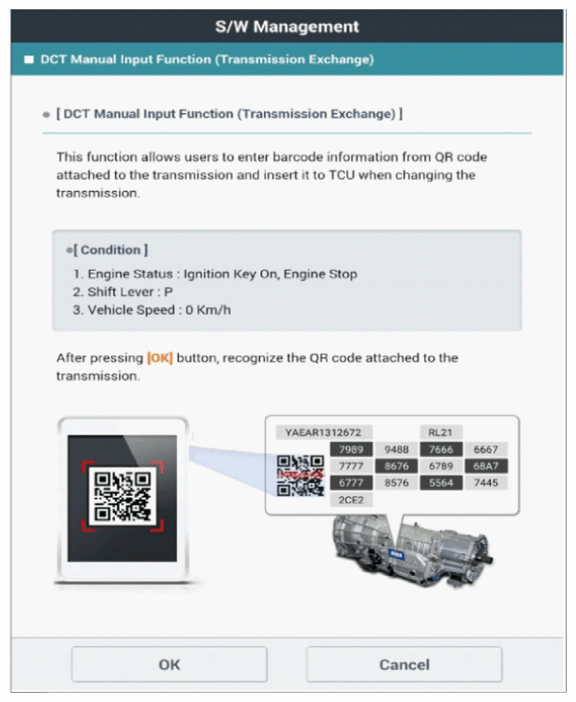

G12937390Courtesy of KIA MOTORS AMERICA, INC.

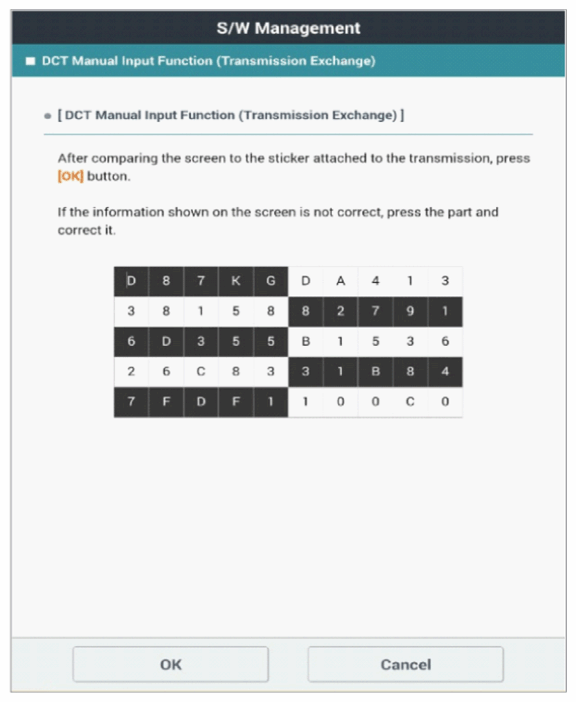

G12937391Courtesy of KIA MOTORS AMERICA, INC.

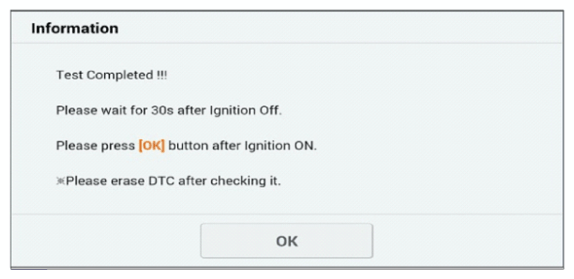

G12937392Courtesy of KIA MOTORS AMERICA, INC.
