Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.

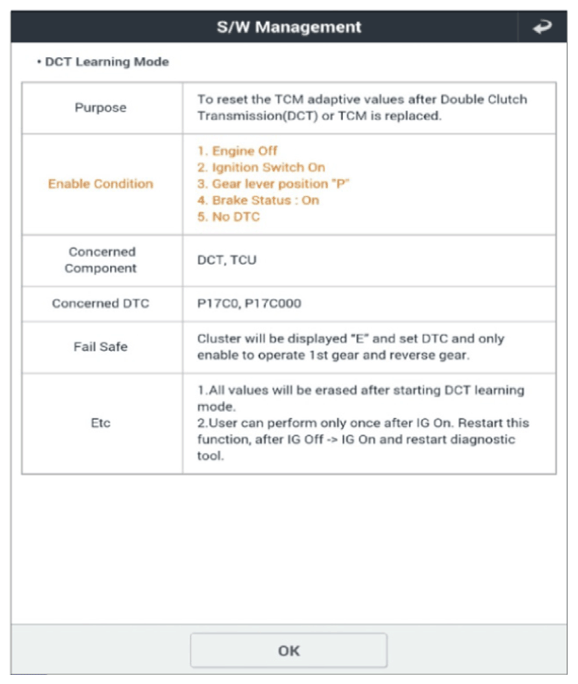

G12937367Courtesy of KIA MOTORS AMERICA, INC.

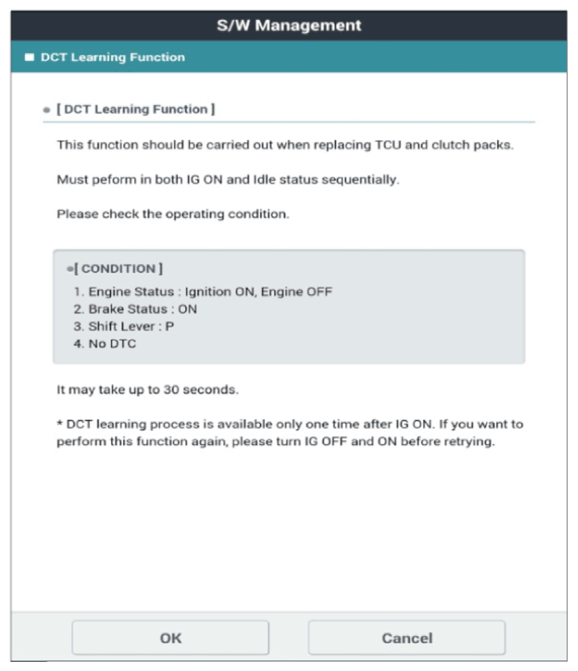

G12937368Courtesy of KIA MOTORS AMERICA, INC.

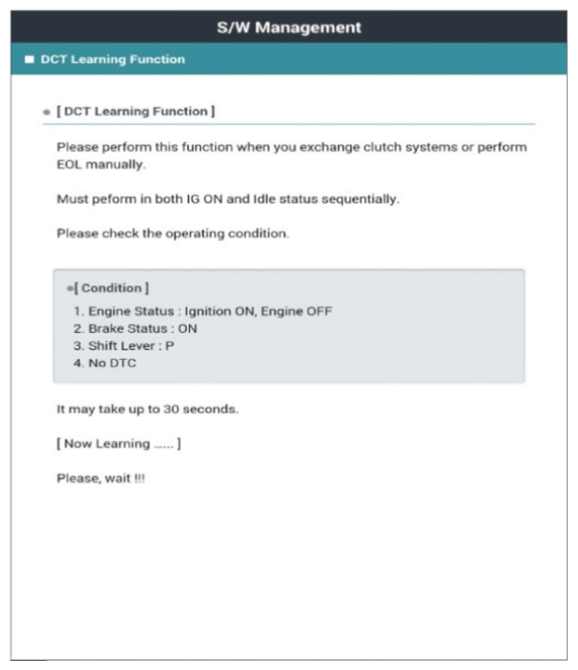

G12937369Courtesy of KIA MOTORS AMERICA, INC.

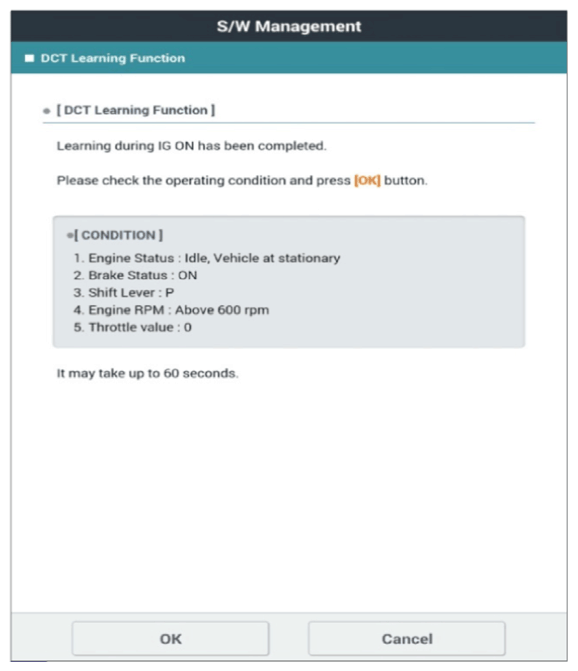

G12937370Courtesy of KIA MOTORS AMERICA, INC.

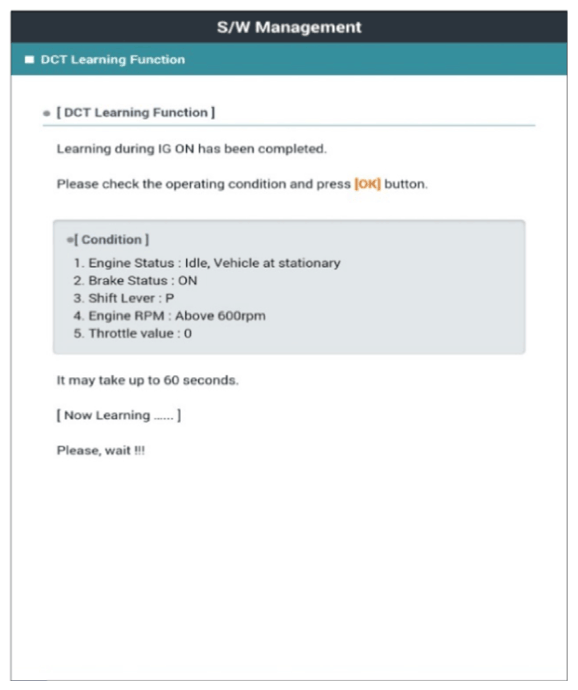

G12937371Courtesy of KIA MOTORS AMERICA, INC.

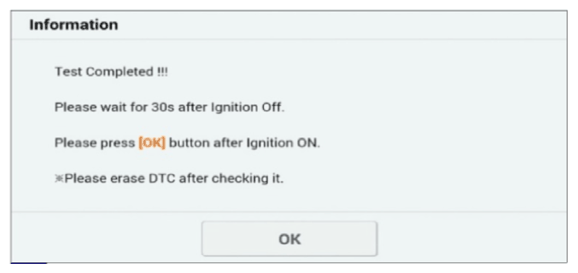

G12937372Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.

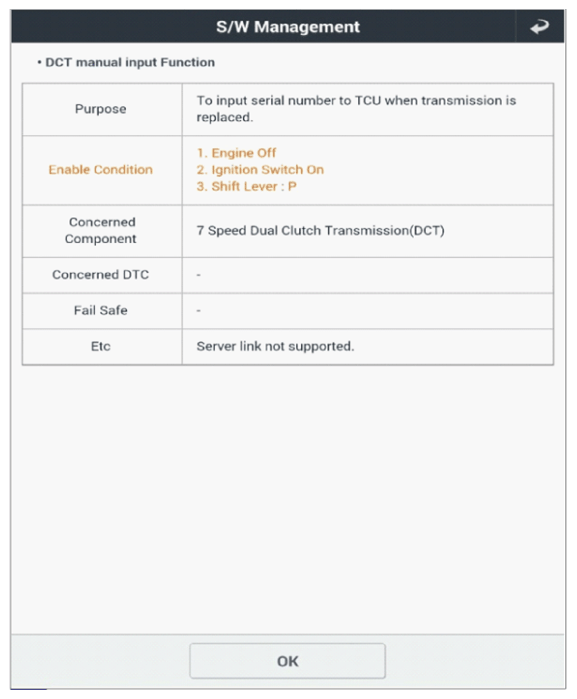

G12937373Courtesy of KIA MOTORS AMERICA, INC.

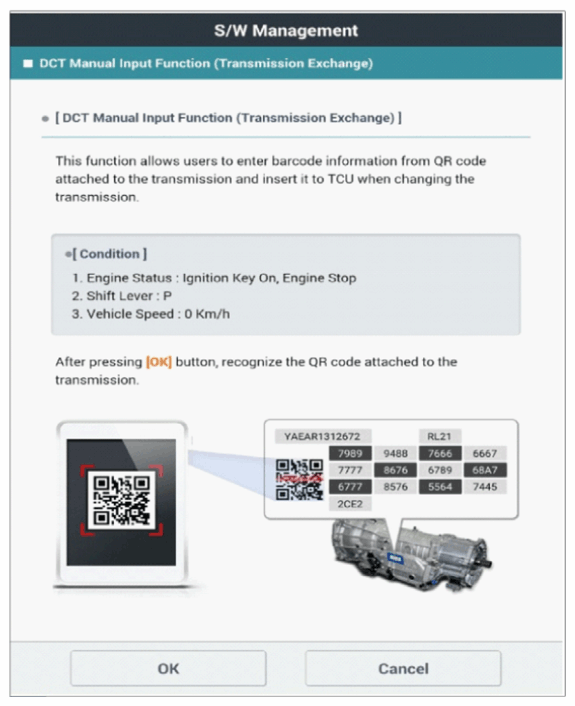

G12937374Courtesy of KIA MOTORS AMERICA, INC.

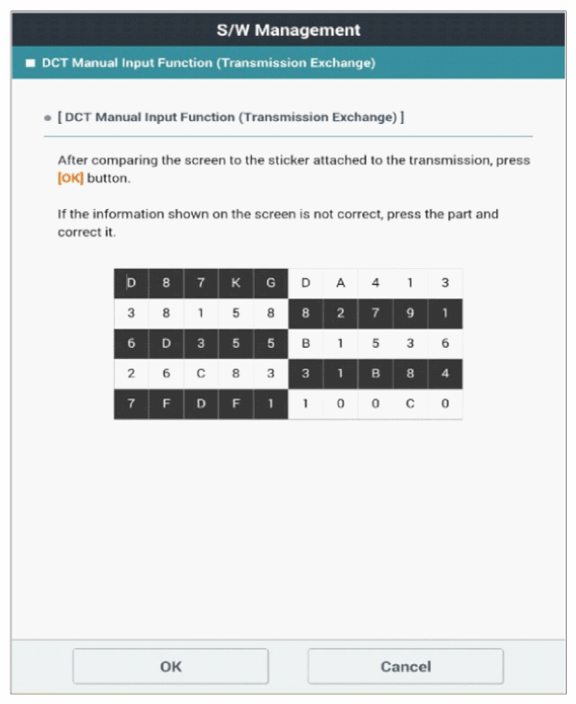

G12937375Courtesy of KIA MOTORS AMERICA, INC.

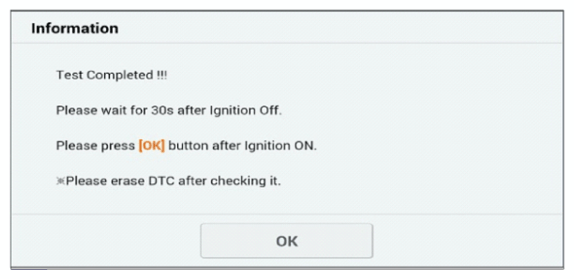

G12937376Courtesy of KIA MOTORS AMERICA, INC.
