Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.

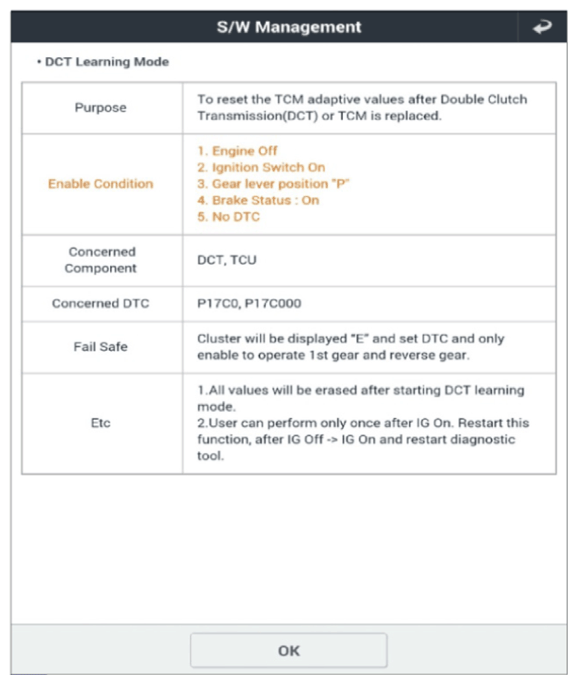

G12937267Courtesy of KIA MOTORS AMERICA, INC.

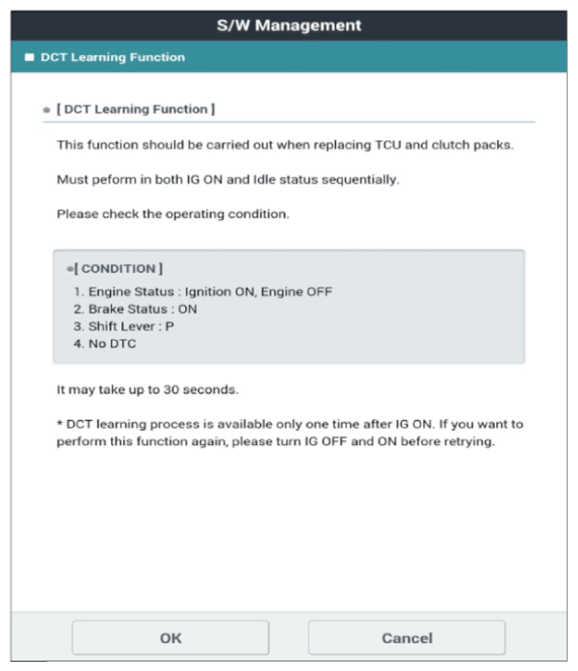

G12937268Courtesy of KIA MOTORS AMERICA, INC.

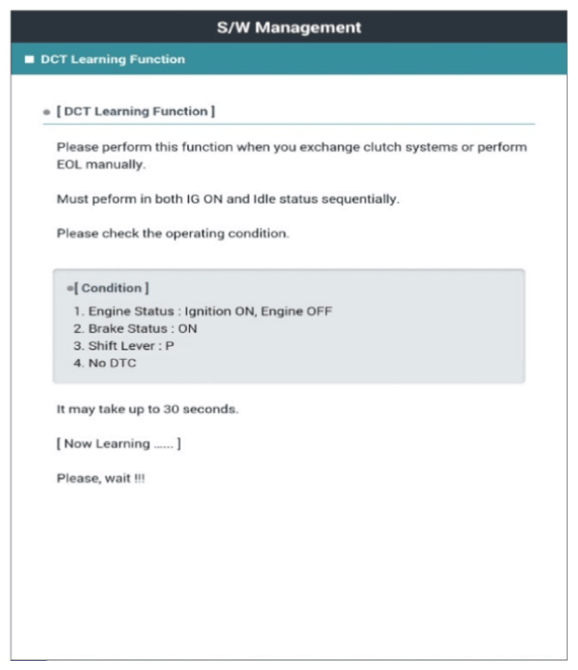

G12937269Courtesy of KIA MOTORS AMERICA, INC.

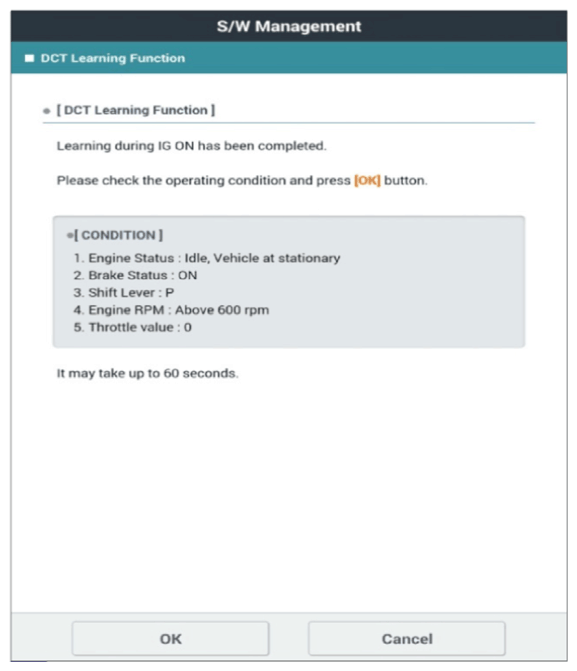

G12937270Courtesy of KIA MOTORS AMERICA, INC.

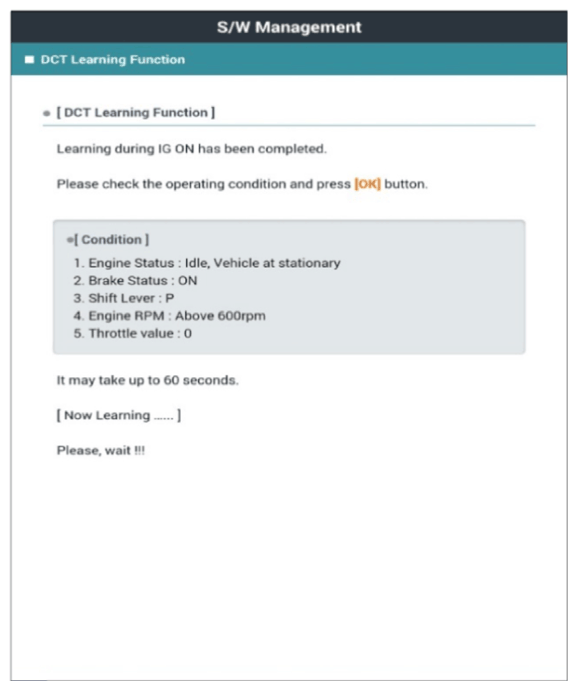

G12937271Courtesy of KIA MOTORS AMERICA, INC.

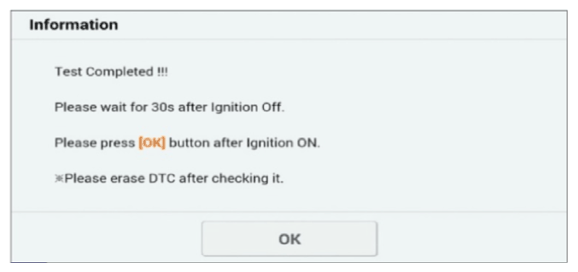

G12937272Courtesy of KIA MOTORS AMERICA, INC.
