Monitor KDS Data
WARNING: This page is about a different variant/trim than selected.
- Ignition "ON"
- Connect KDS to Data Link Connector (DLC).
- Shift gear lever to "Sports"
- Monitor "Sports Mode" and "Sports Up","Sports Down" parameters in "Current Data" with KDS.

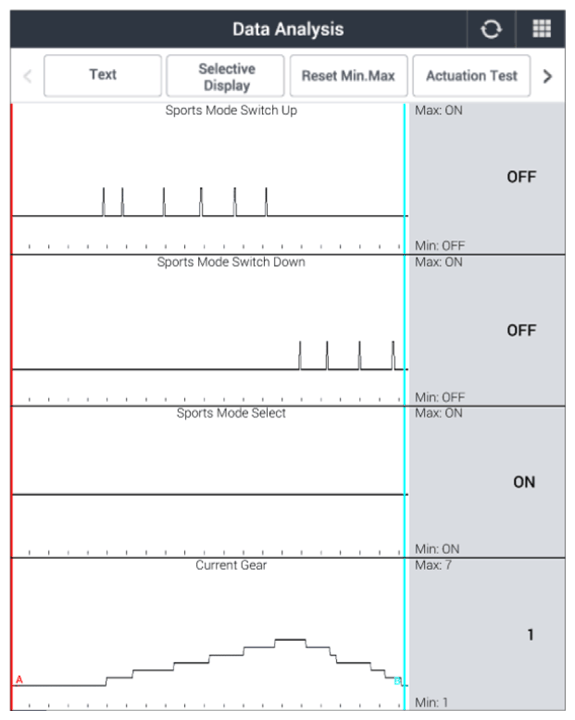

Specification: Refer to Figure below
- Is displayed parameter within specification?
YES
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
