Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.

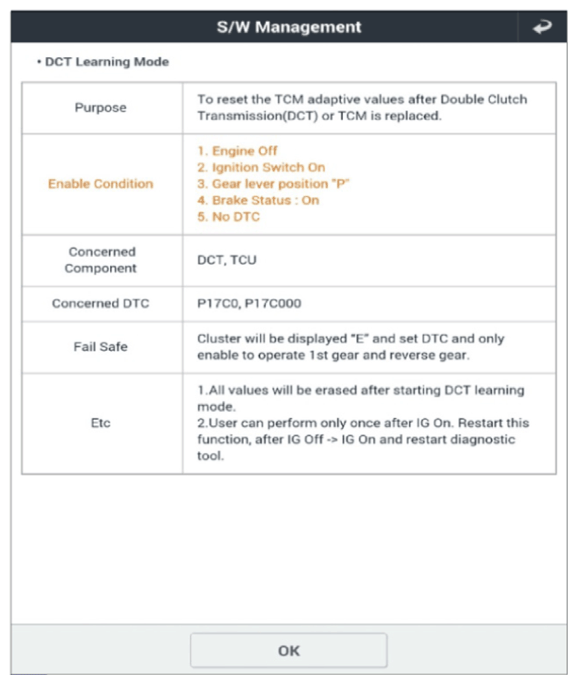

G12937251Courtesy of KIA MOTORS AMERICA, INC.

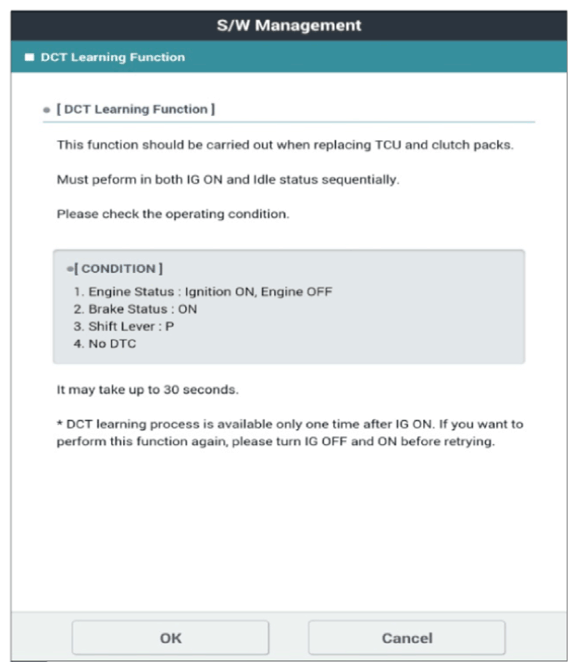

G12937252Courtesy of KIA MOTORS AMERICA, INC.

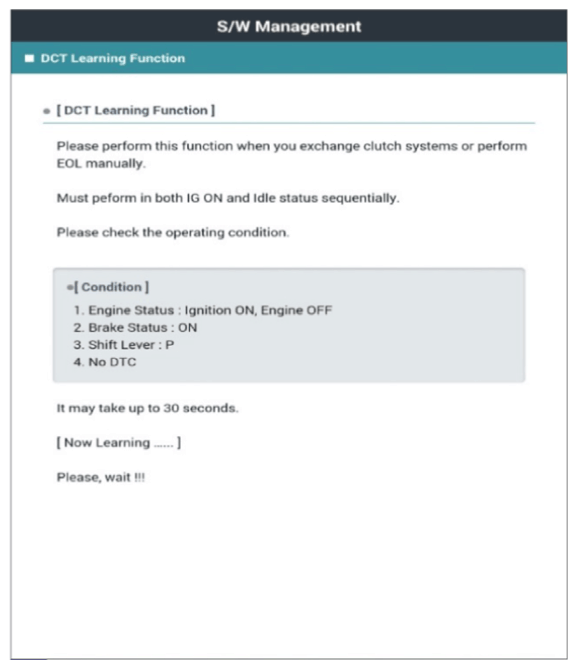

G12937253Courtesy of KIA MOTORS AMERICA, INC.

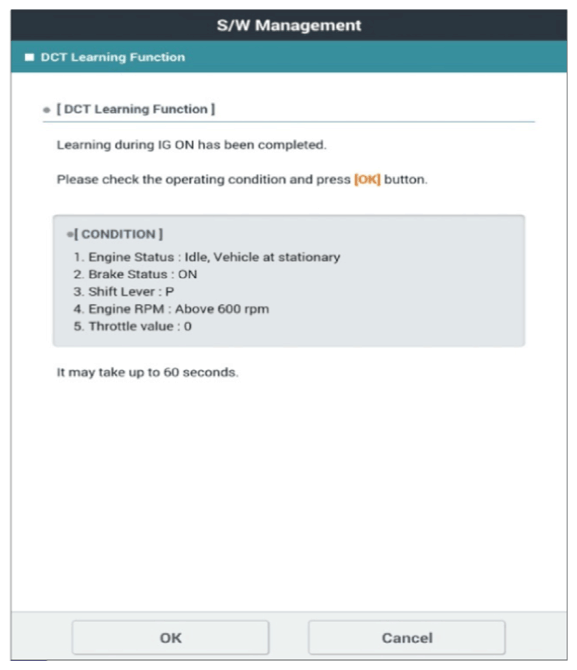

G12937254Courtesy of KIA MOTORS AMERICA, INC.

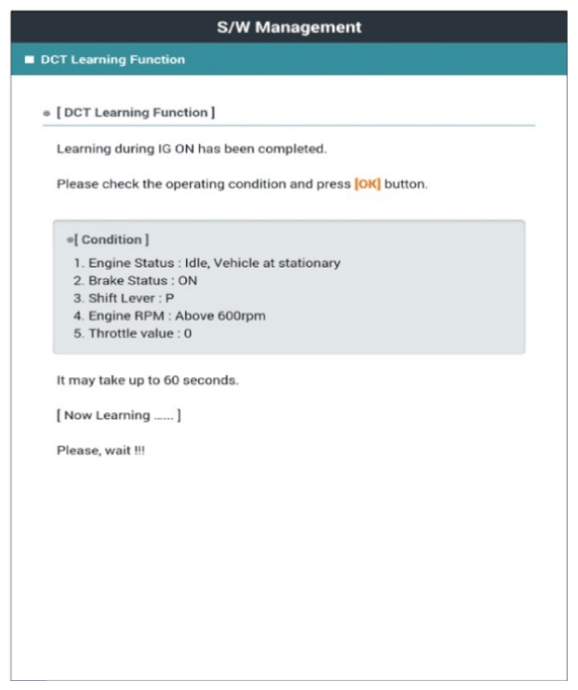

G12937255Courtesy of KIA MOTORS AMERICA, INC.

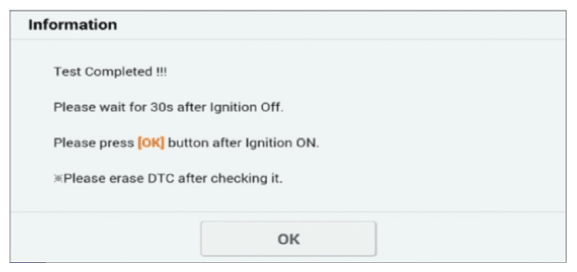

G12937256Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.

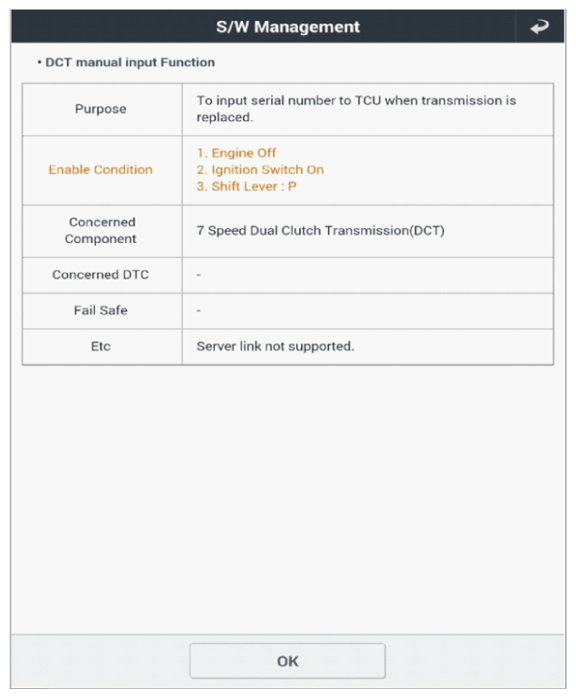

G12937257Courtesy of KIA MOTORS AMERICA, INC.

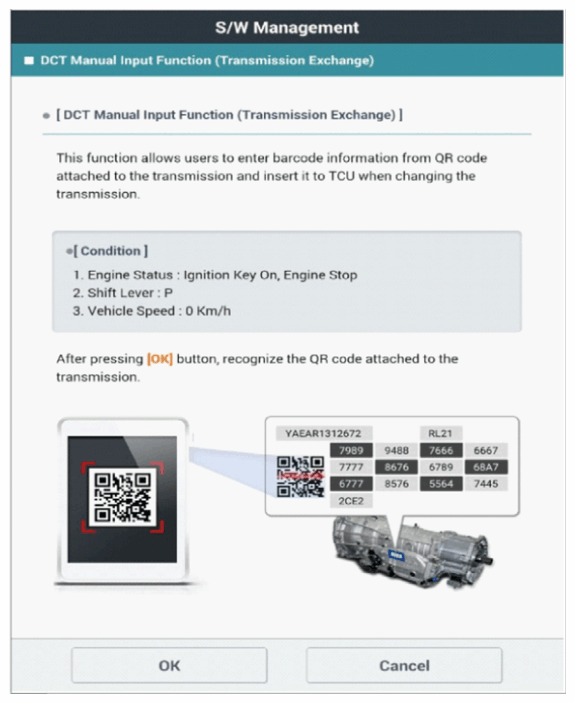

G12937258Courtesy of KIA MOTORS AMERICA, INC.

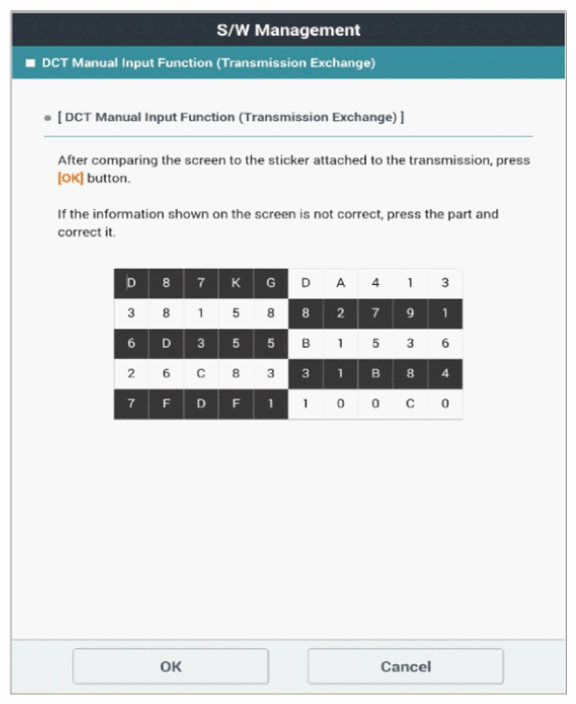

G12937259Courtesy of KIA MOTORS AMERICA, INC.

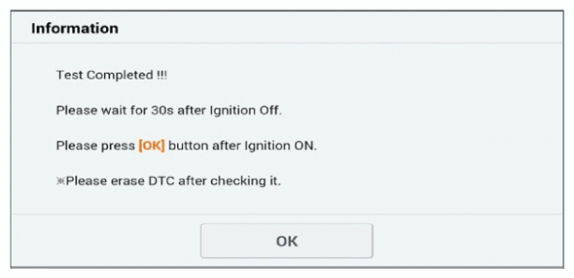

G12937260Courtesy of KIA MOTORS AMERICA, INC.
