Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.
G12937235Courtesy of KIA MOTORS AMERICA, INC.
G12937236Courtesy of KIA MOTORS AMERICA, INC.
G12937237Courtesy of KIA MOTORS AMERICA, INC.

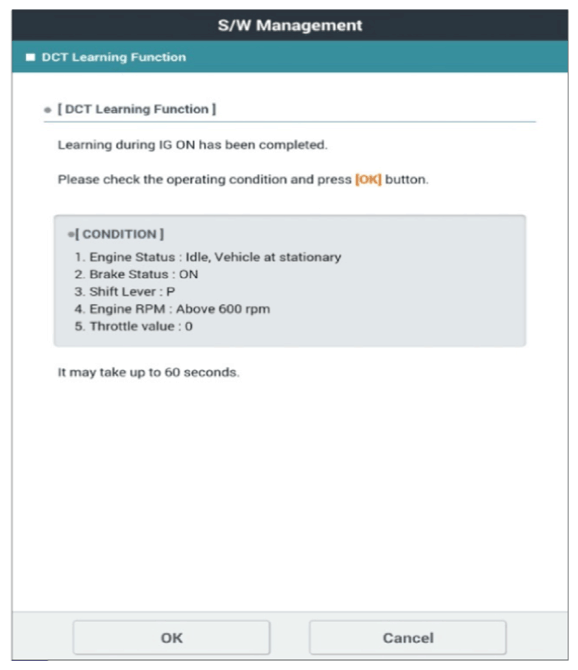

G12937238Courtesy of KIA MOTORS AMERICA, INC.
G12937239Courtesy of KIA MOTORS AMERICA, INC.

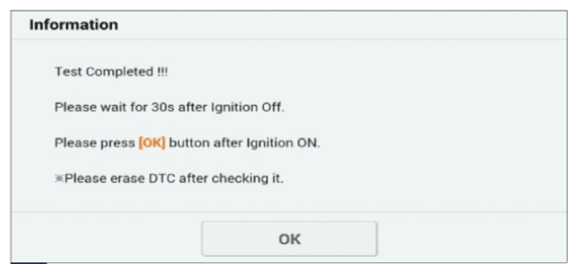

G12937240Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.
G12937241Courtesy of KIA MOTORS AMERICA, INC.

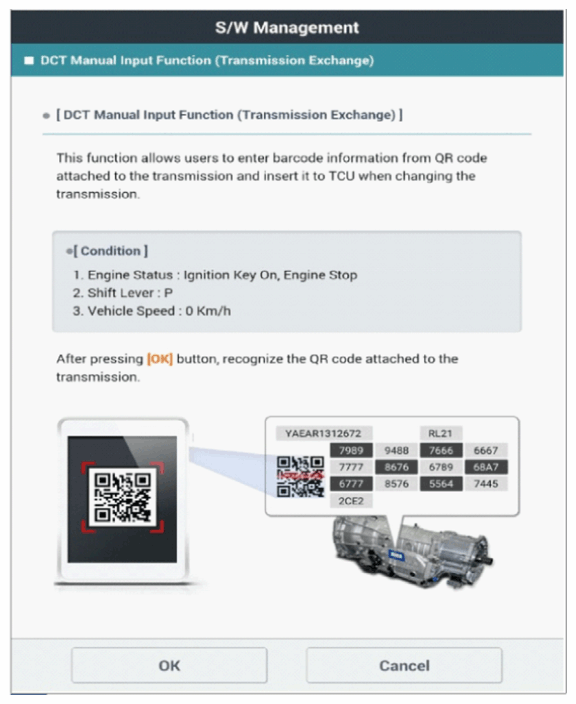

G12937242Courtesy of KIA MOTORS AMERICA, INC.
G12937243Courtesy of KIA MOTORS AMERICA, INC.
G12937244Courtesy of KIA MOTORS AMERICA, INC.
