Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.

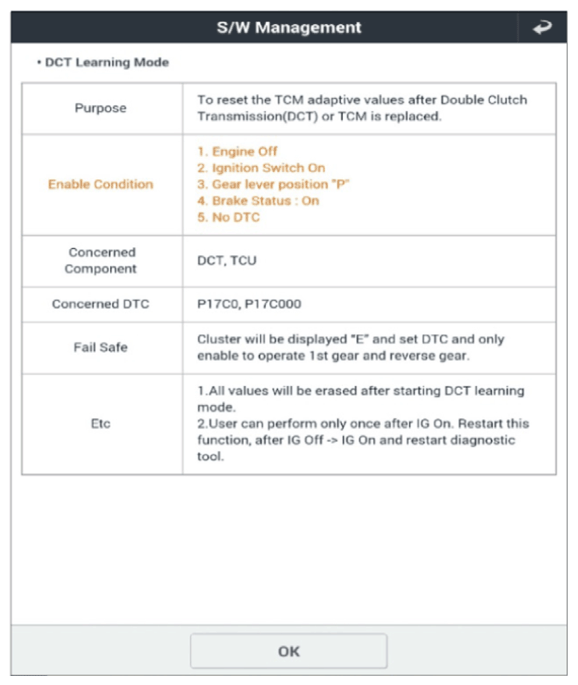

G12937153Courtesy of KIA MOTORS AMERICA, INC.

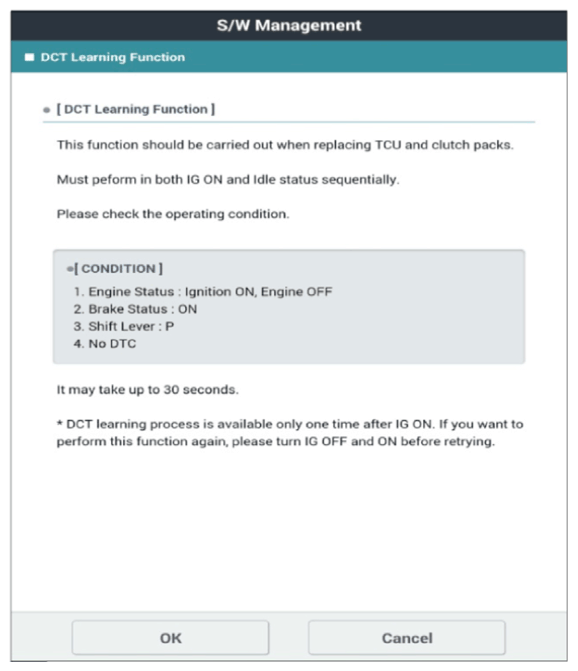

G12937154Courtesy of KIA MOTORS AMERICA, INC.

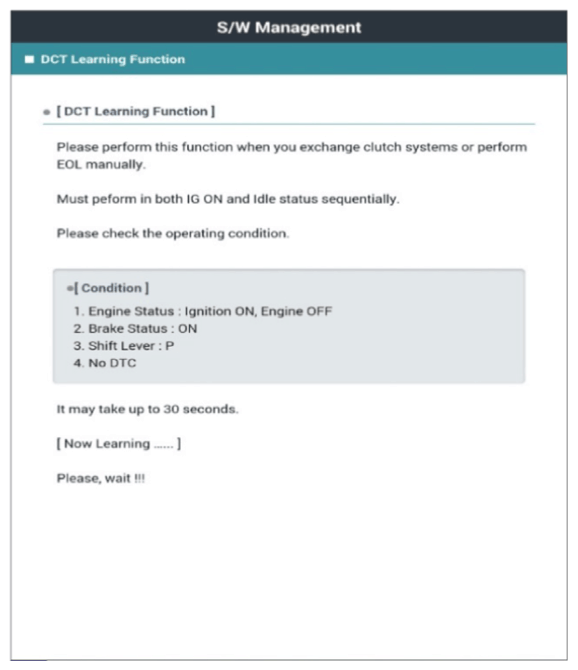

G12937155Courtesy of KIA MOTORS AMERICA, INC.

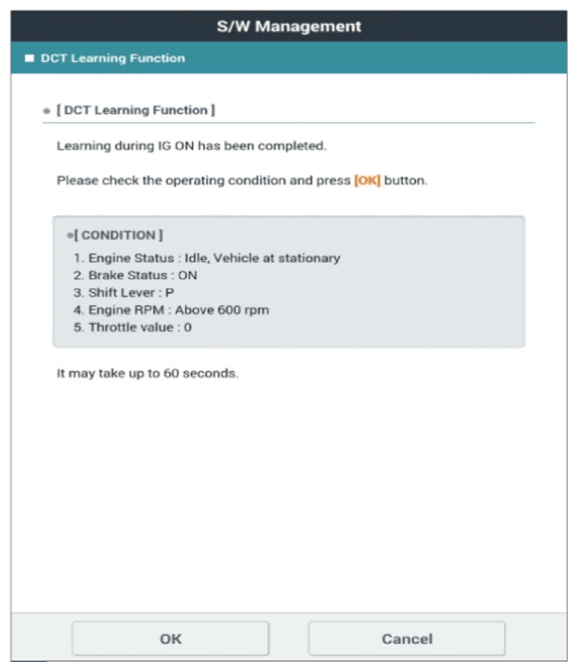

G12937156Courtesy of KIA MOTORS AMERICA, INC.

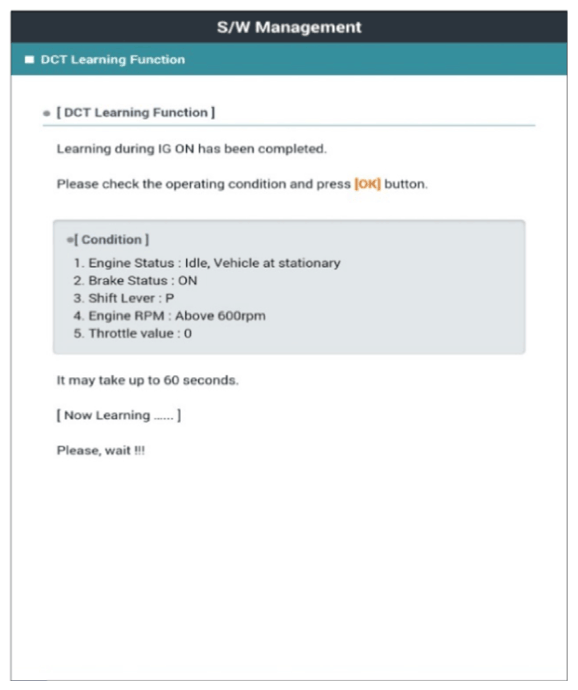

G12937157Courtesy of KIA MOTORS AMERICA, INC.

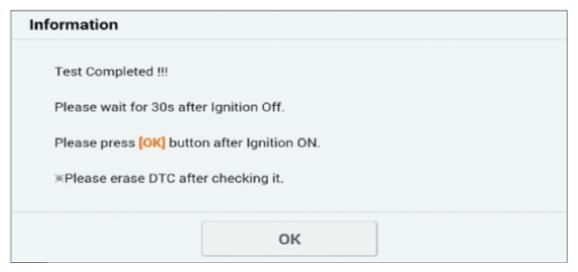

G12937158Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.

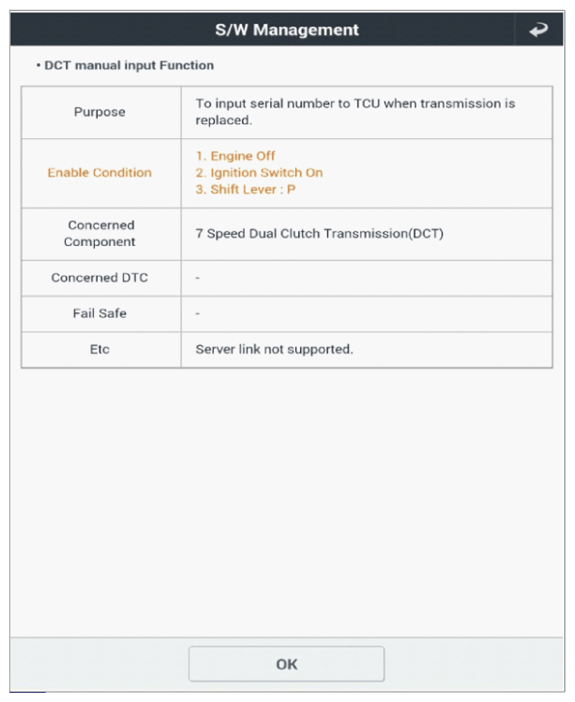

G12937159Courtesy of KIA MOTORS AMERICA, INC.

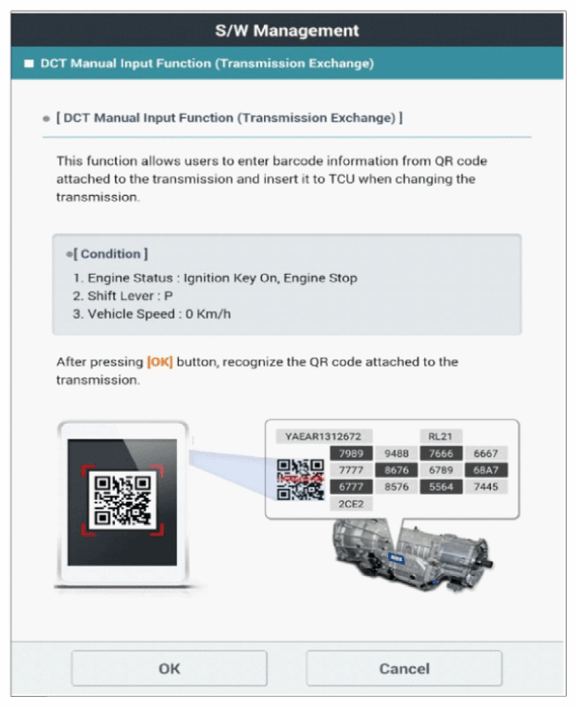

G12937160Courtesy of KIA MOTORS AMERICA, INC.

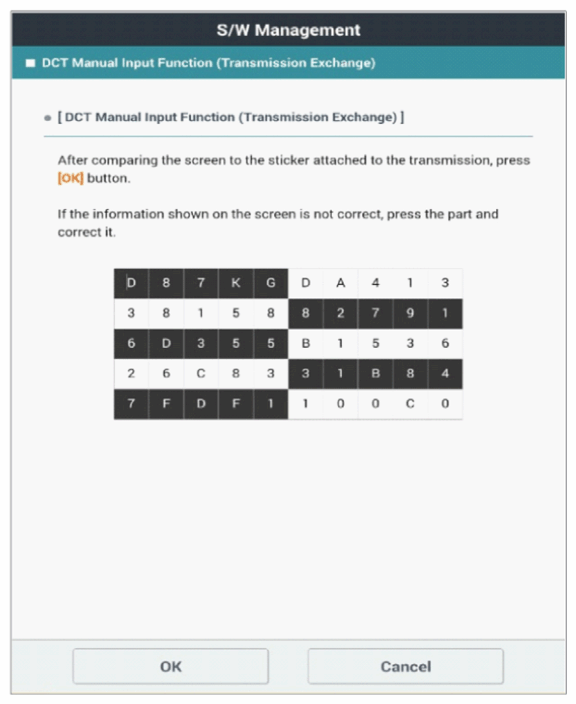

G12937161Courtesy of KIA MOTORS AMERICA, INC.

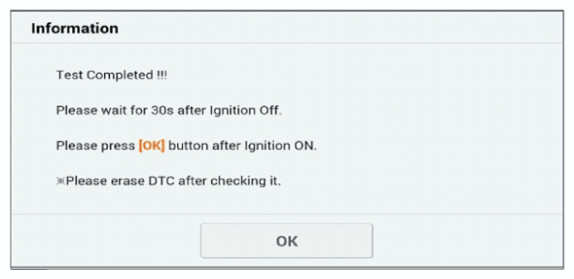

G12937162Courtesy of KIA MOTORS AMERICA, INC.
