Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.

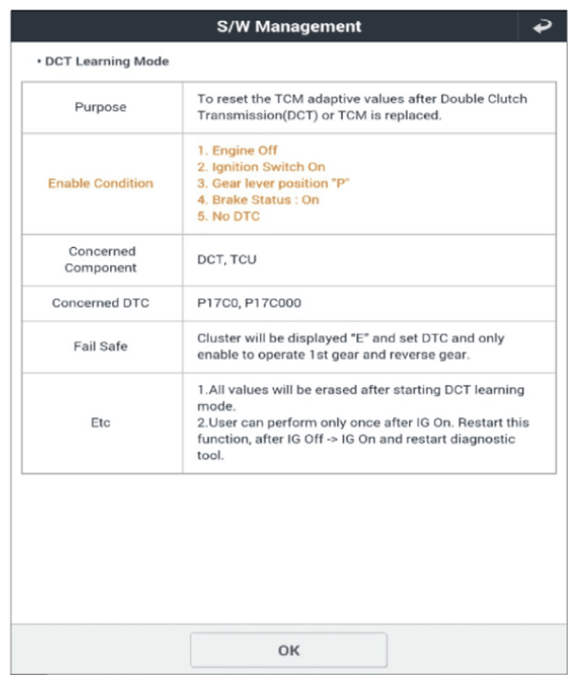

G12937123Courtesy of KIA MOTORS AMERICA, INC.

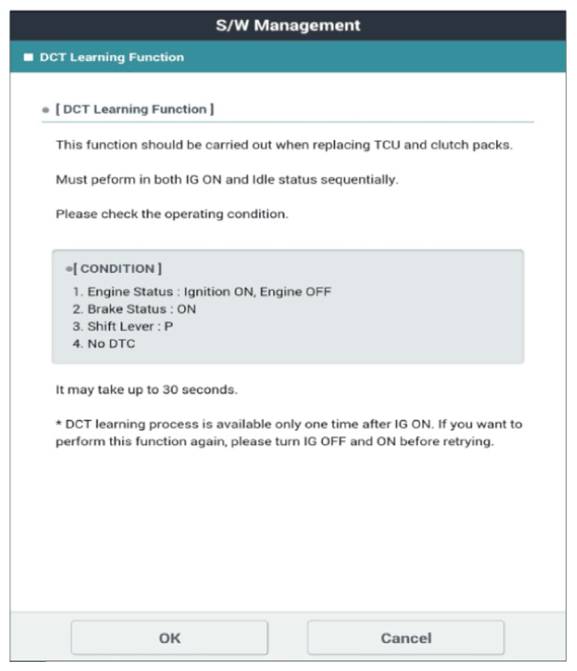

G12937124Courtesy of KIA MOTORS AMERICA, INC.

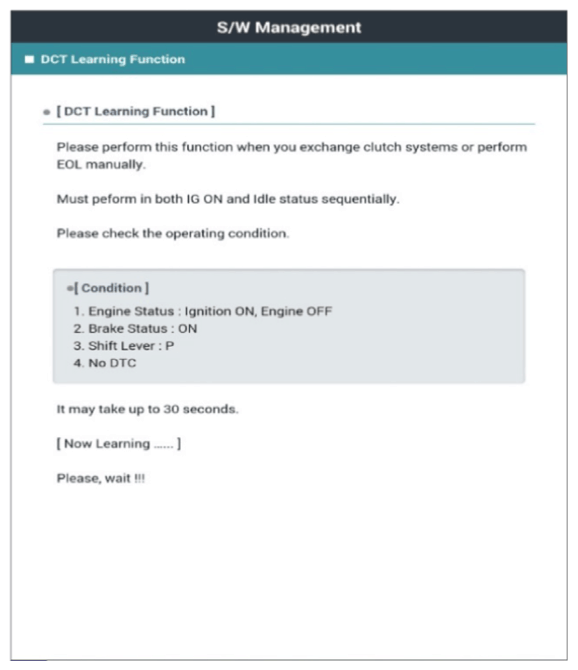

G12937125Courtesy of KIA MOTORS AMERICA, INC.

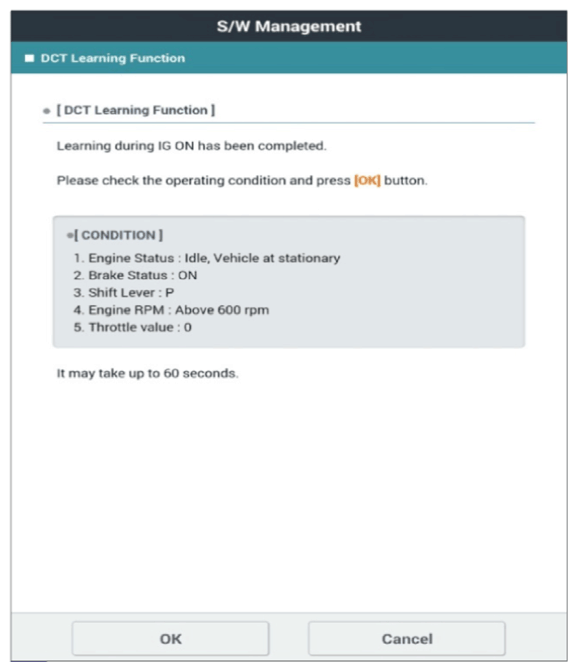

G12937126Courtesy of KIA MOTORS AMERICA, INC.

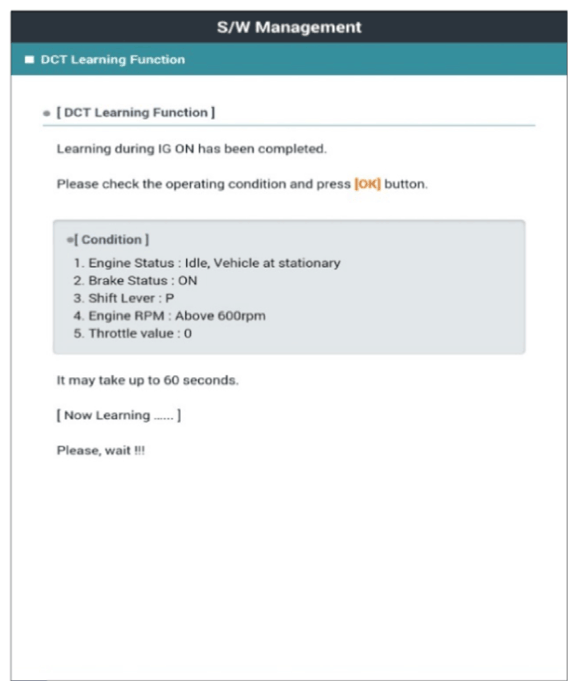

G12937127Courtesy of KIA MOTORS AMERICA, INC.

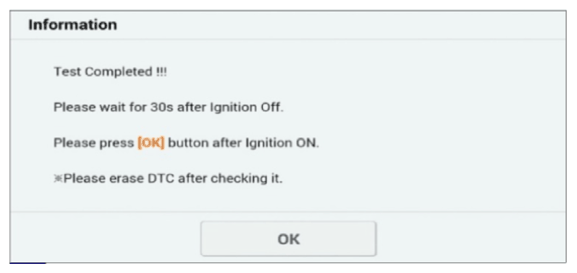

G12937128Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.

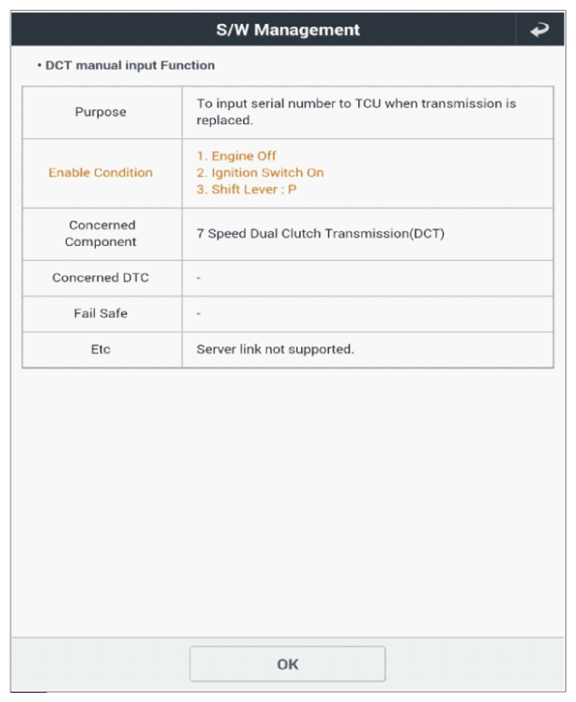

G12937129Courtesy of KIA MOTORS AMERICA, INC.

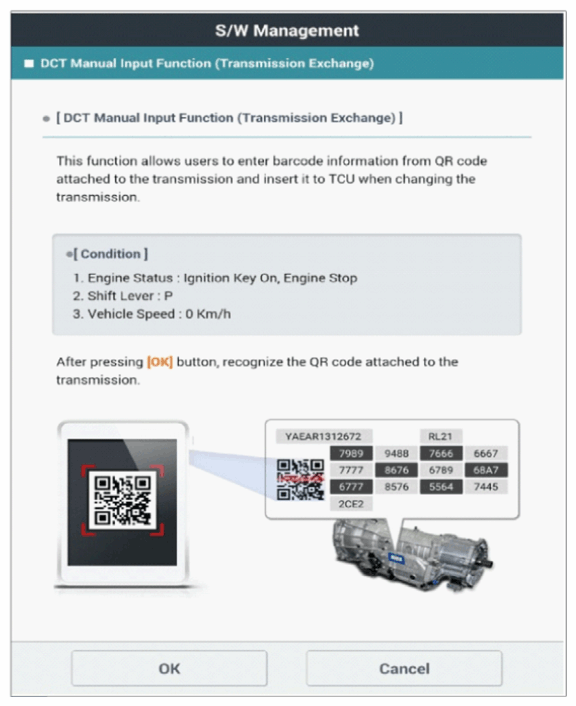

G12937130Courtesy of KIA MOTORS AMERICA, INC.

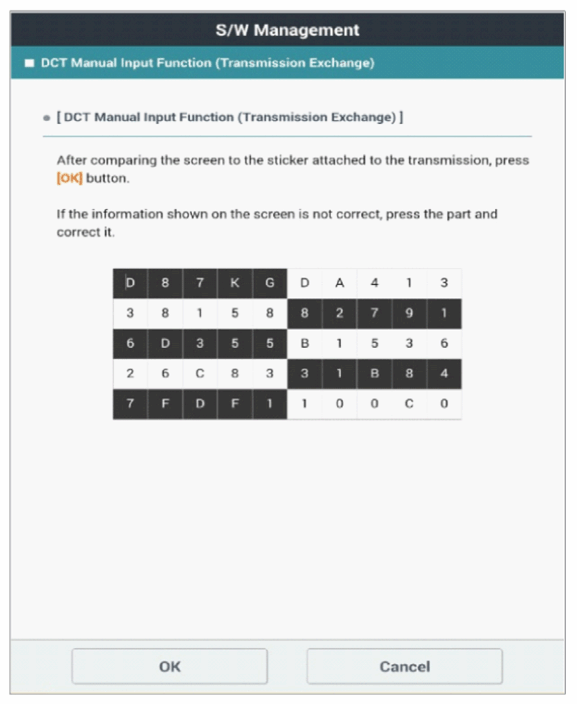

G12937131Courtesy of KIA MOTORS AMERICA, INC.

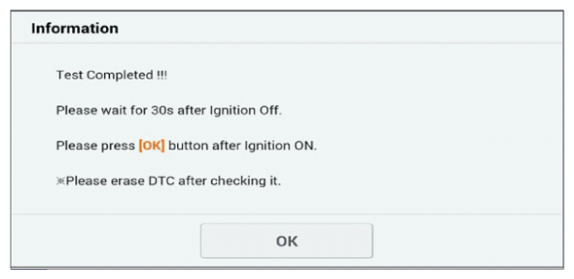

G12937132Courtesy of KIA MOTORS AMERICA, INC.
