Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.

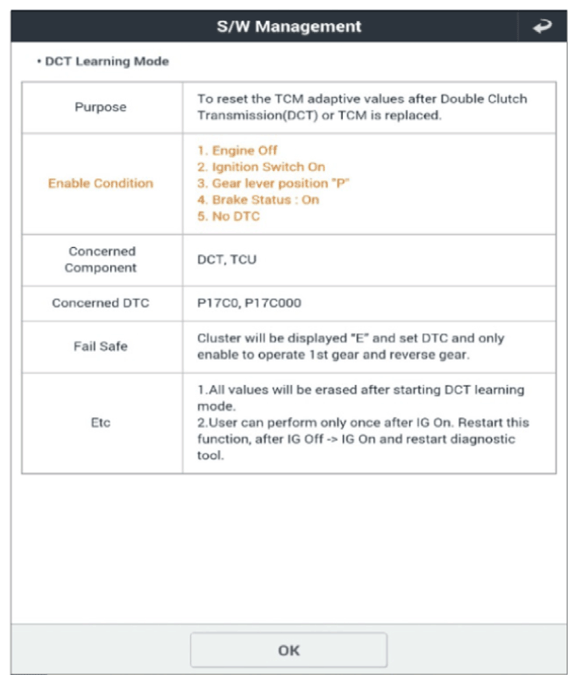

G12937108Courtesy of KIA MOTORS AMERICA, INC.

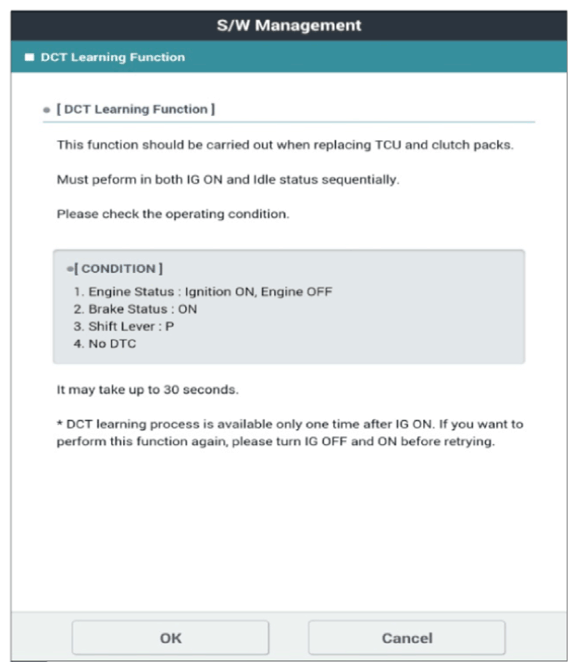

G12937109Courtesy of KIA MOTORS AMERICA, INC.

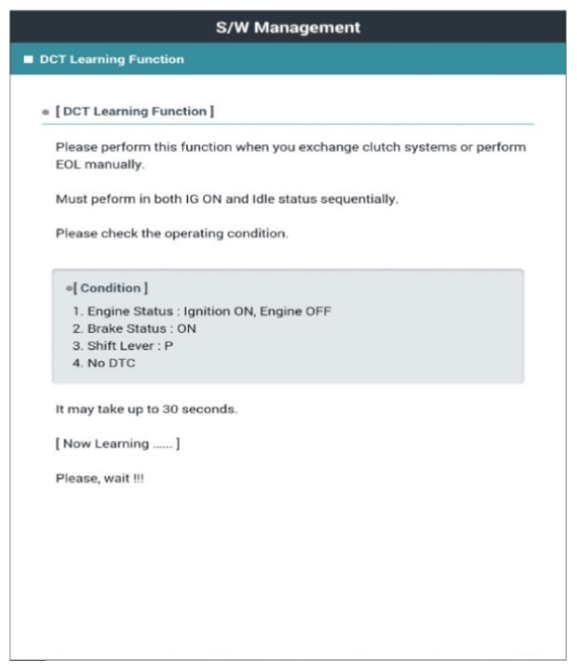

G12937110Courtesy of KIA MOTORS AMERICA, INC.

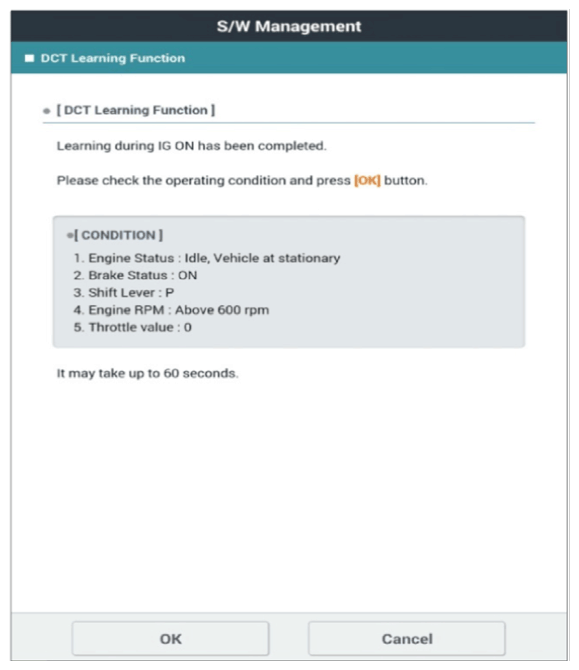

G12937111Courtesy of KIA MOTORS AMERICA, INC.

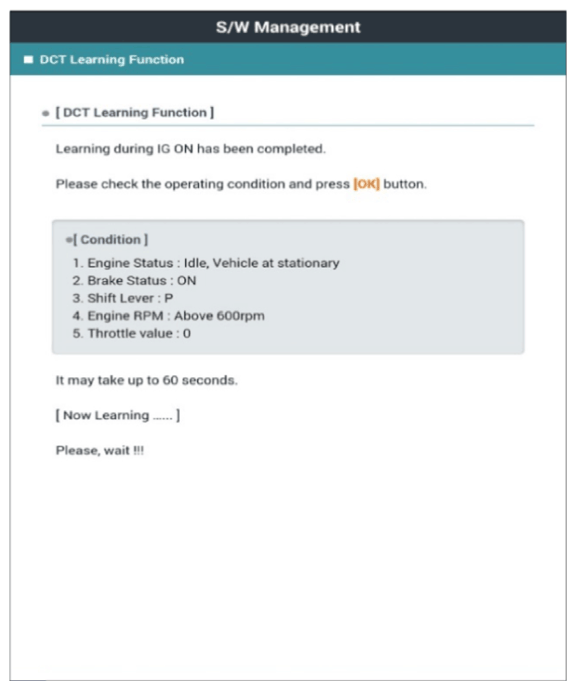

G12937112Courtesy of KIA MOTORS AMERICA, INC.

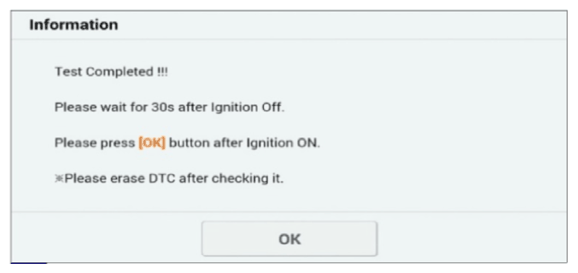

G12937113Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.

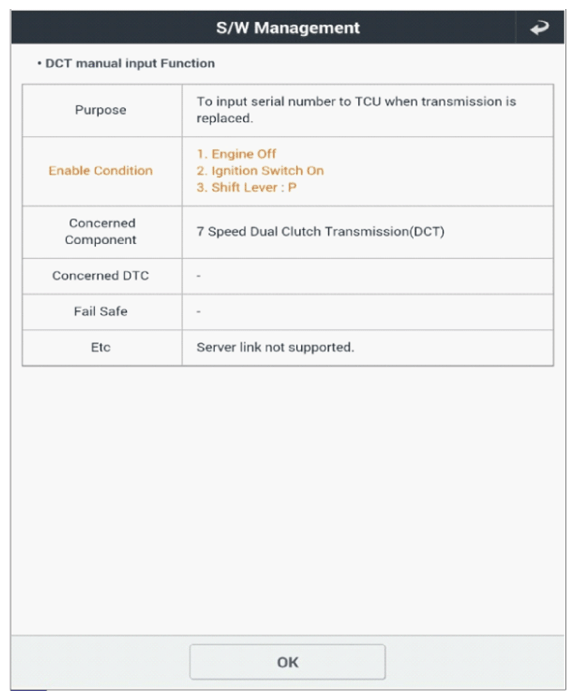

G12937114Courtesy of KIA MOTORS AMERICA, INC.

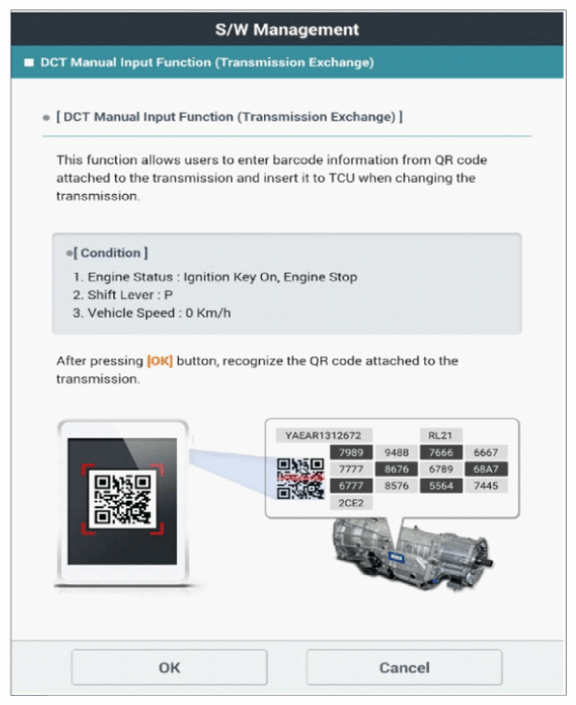

G12937115Courtesy of KIA MOTORS AMERICA, INC.

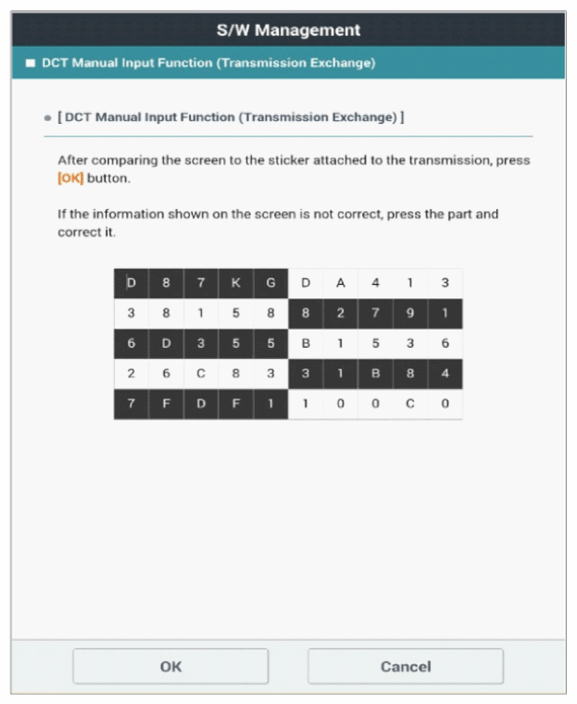

G12937116Courtesy of KIA MOTORS AMERICA, INC.

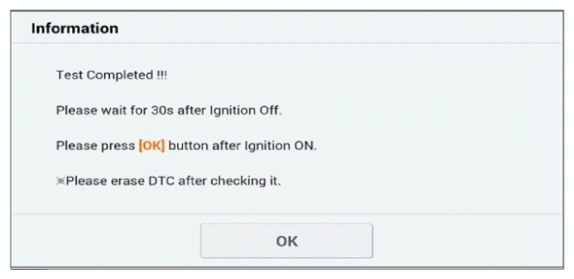

G12937117Courtesy of KIA MOTORS AMERICA, INC.
