Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.

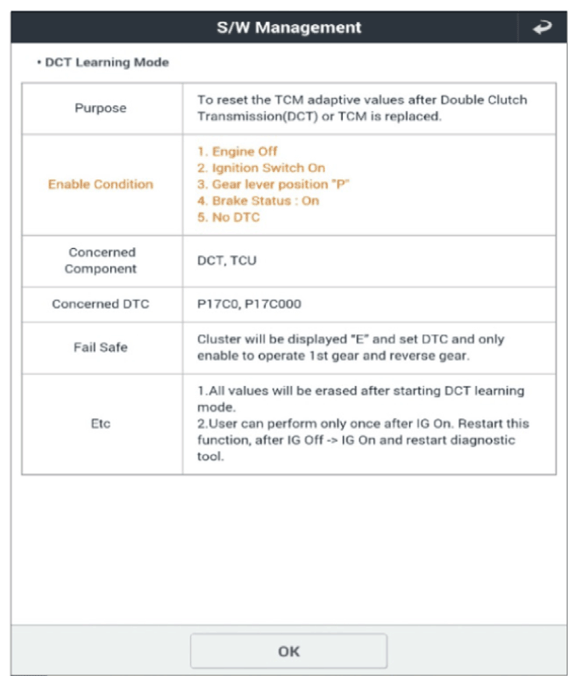

G12937060Courtesy of KIA MOTORS AMERICA, INC.

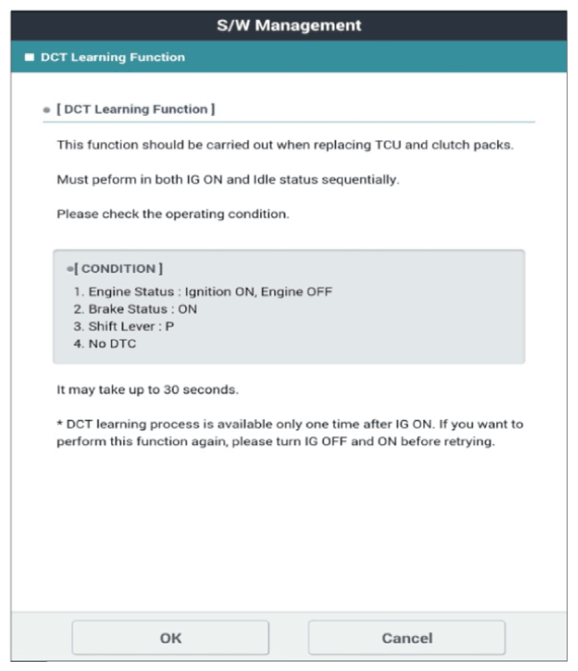

G12937061Courtesy of KIA MOTORS AMERICA, INC.

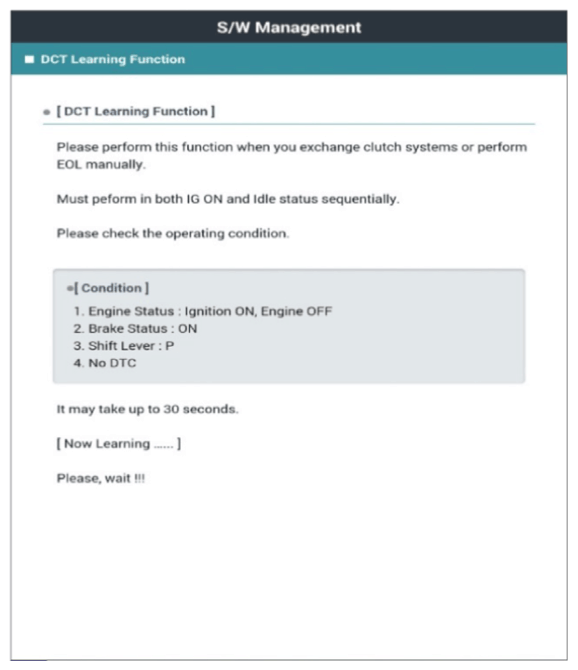

G12937062Courtesy of KIA MOTORS AMERICA, INC.

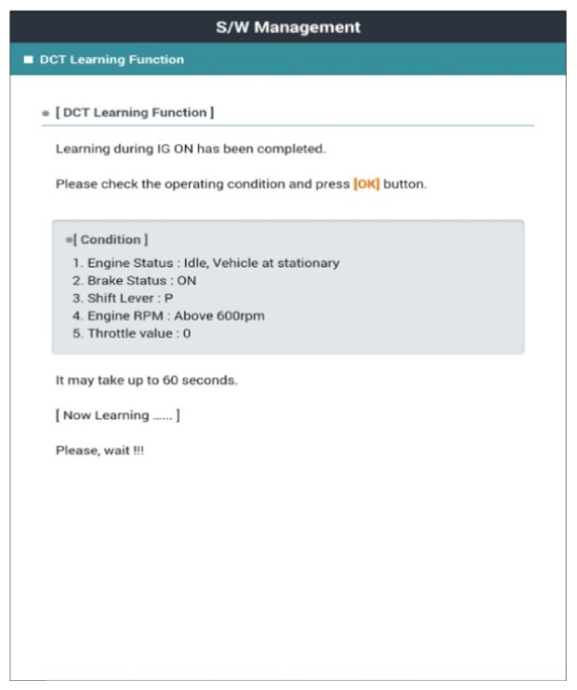

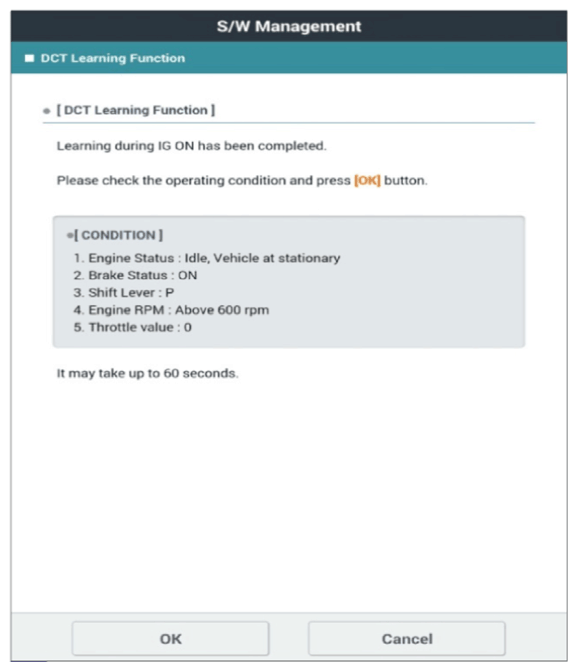

G12937063Courtesy of KIA MOTORS AMERICA, INC.

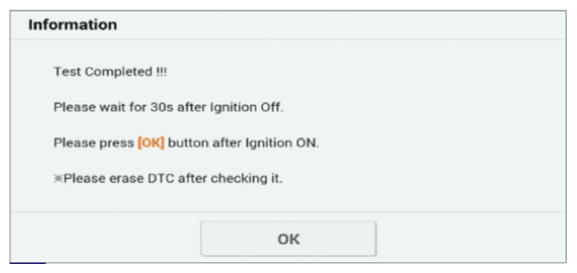

G12937064Courtesy of KIA MOTORS AMERICA, INC.
G12937065Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.

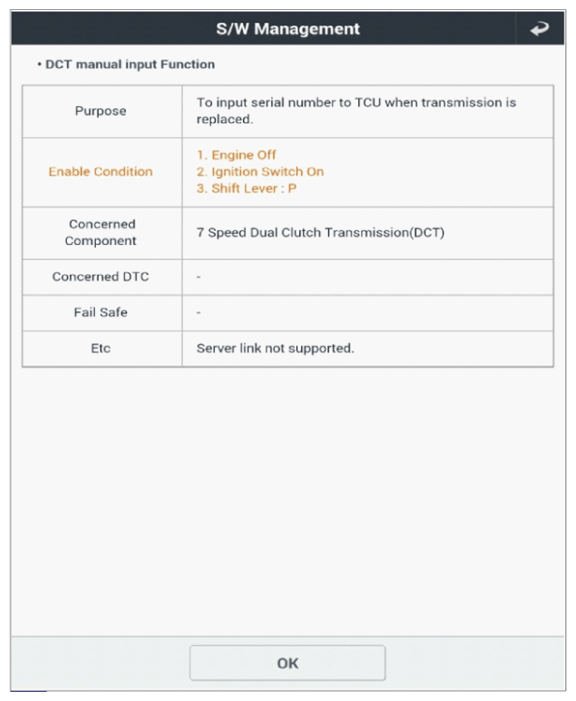

G12937066Courtesy of KIA MOTORS AMERICA, INC.

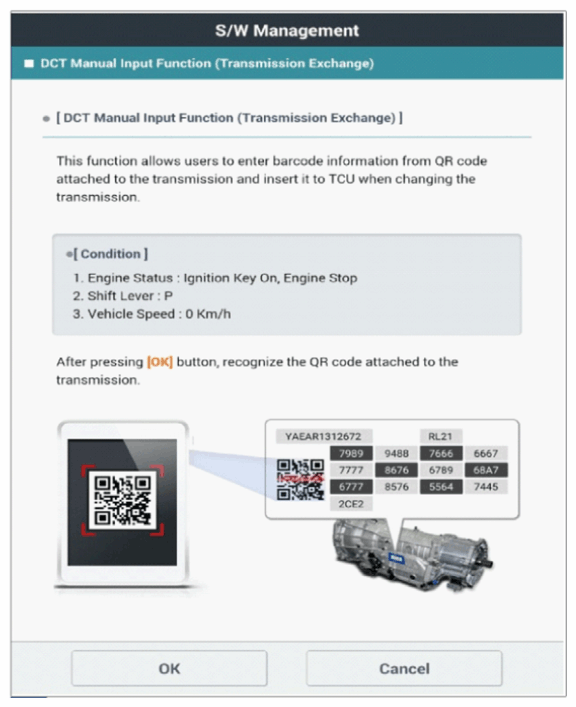

G12937067Courtesy of KIA MOTORS AMERICA, INC.

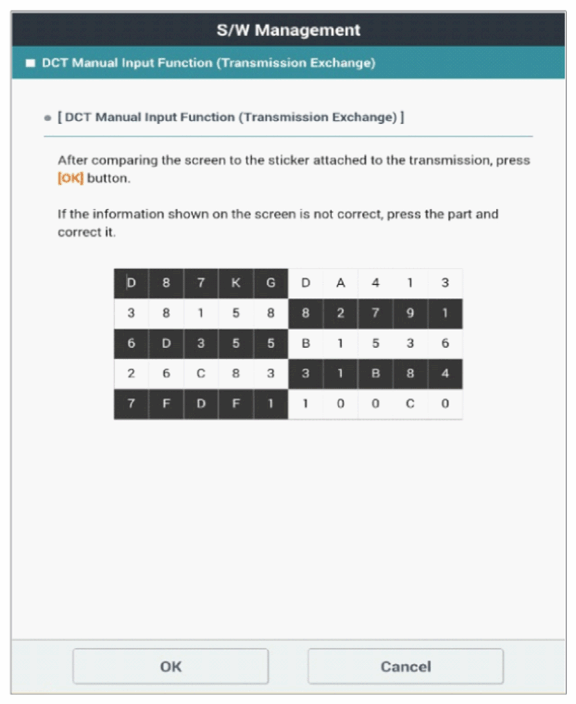

G12937068Courtesy of KIA MOTORS AMERICA, INC.

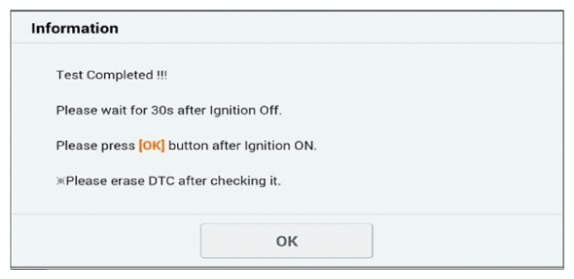

G12937069Courtesy of KIA MOTORS AMERICA, INC.
