Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.
G12937045Courtesy of KIA MOTORS AMERICA, INC.

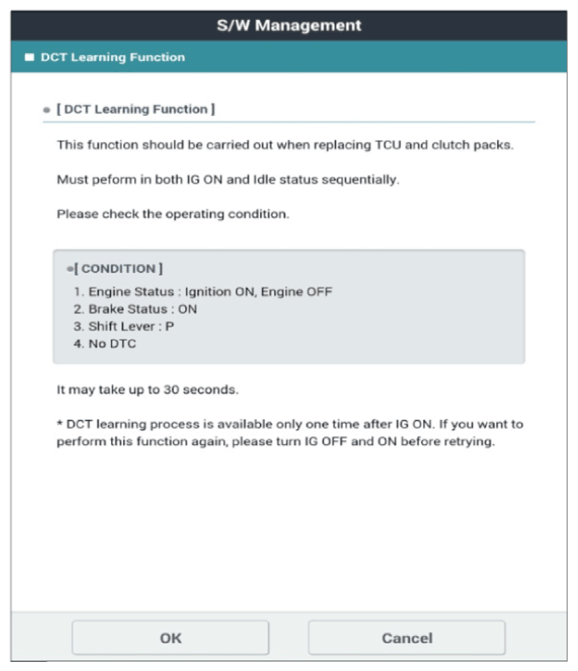

G12937046Courtesy of KIA MOTORS AMERICA, INC.
G12937047Courtesy of KIA MOTORS AMERICA, INC.
G12937048Courtesy of KIA MOTORS AMERICA, INC.
G12937049Courtesy of KIA MOTORS AMERICA, INC.
G12937050Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.
G12937051Courtesy of KIA MOTORS AMERICA, INC.
G12937052Courtesy of KIA MOTORS AMERICA, INC.

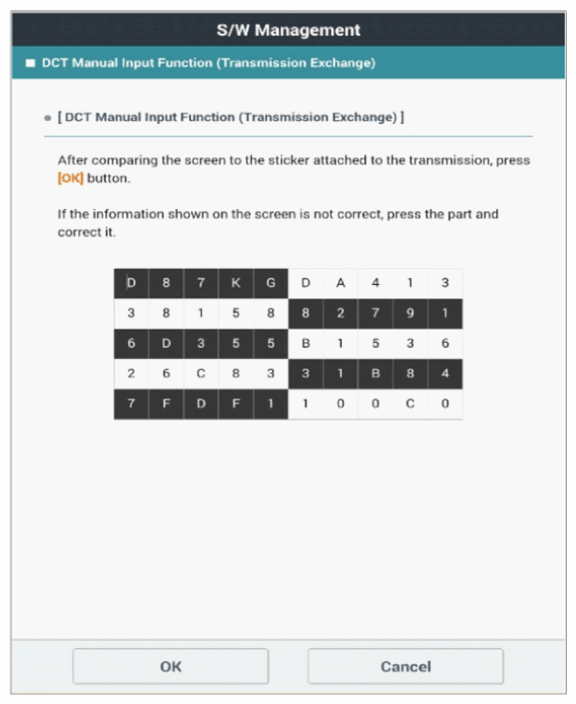

G12937053Courtesy of KIA MOTORS AMERICA, INC.
G12937054Courtesy of KIA MOTORS AMERICA, INC.
