Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.

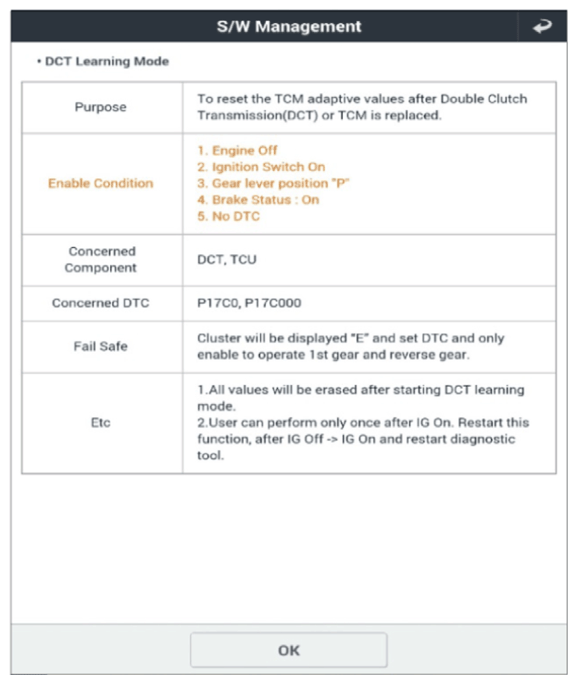

G12937030Courtesy of KIA MOTORS AMERICA, INC.

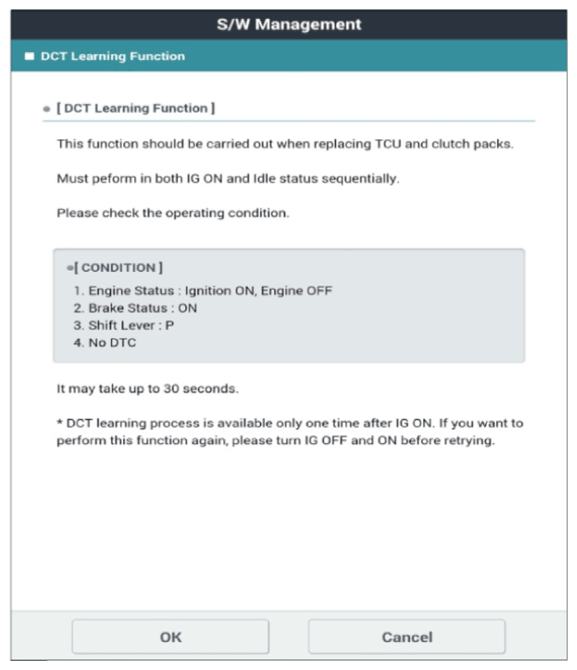

G12937031Courtesy of KIA MOTORS AMERICA, INC.

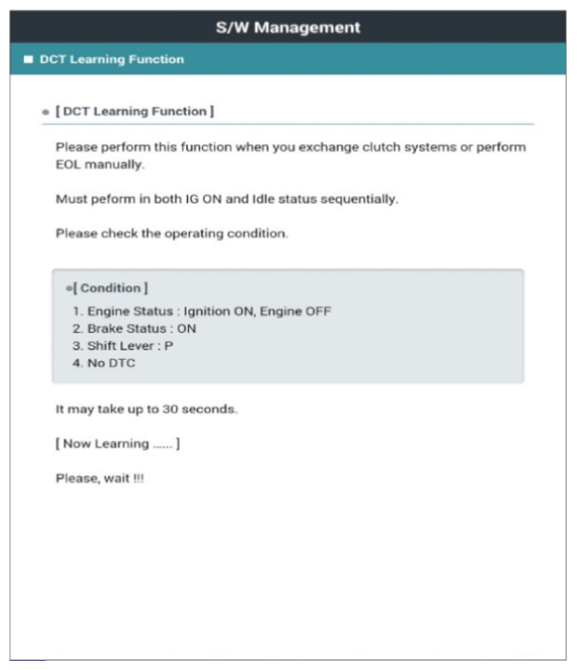

G12937032Courtesy of KIA MOTORS AMERICA, INC.

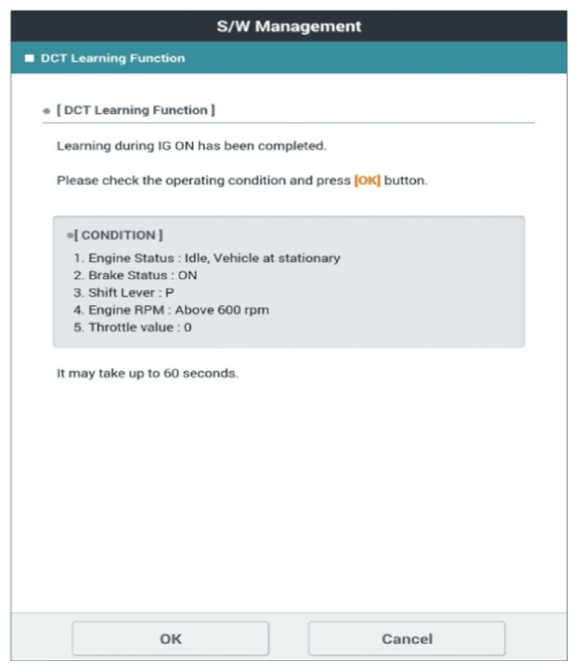

G12937033Courtesy of KIA MOTORS AMERICA, INC.

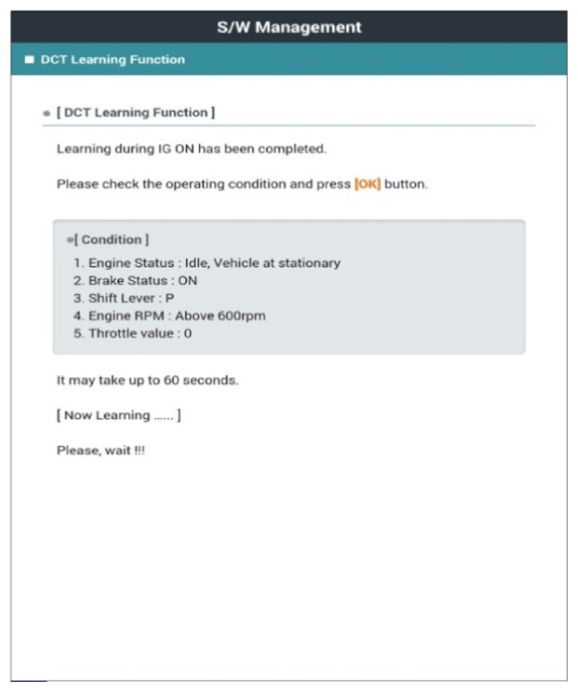

G12937034Courtesy of KIA MOTORS AMERICA, INC.

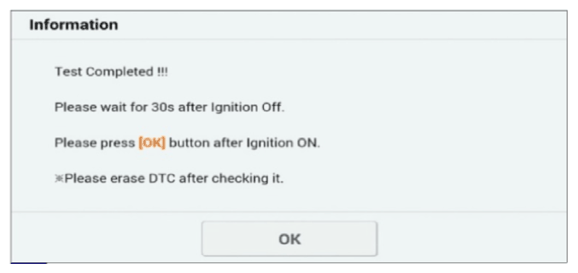

G12937035Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.

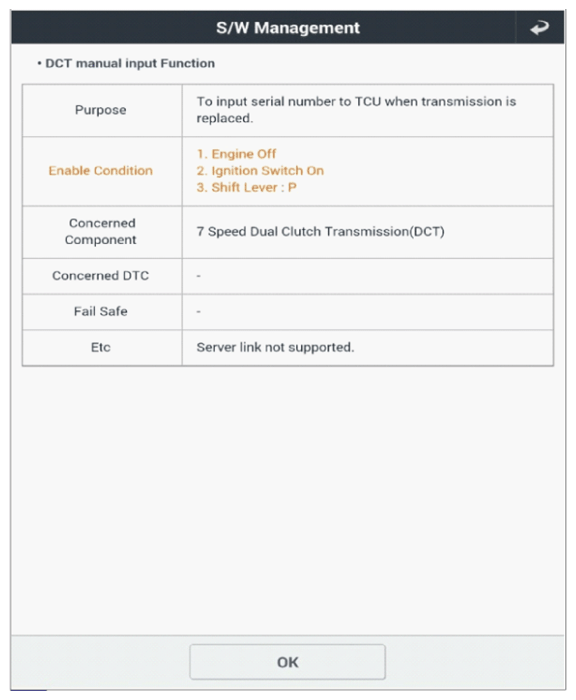

G12937036Courtesy of KIA MOTORS AMERICA, INC.

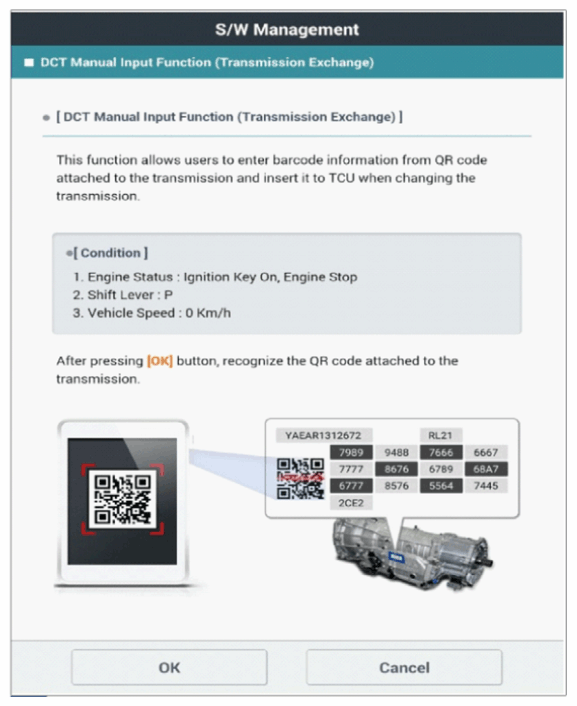

G12937037Courtesy of KIA MOTORS AMERICA, INC.

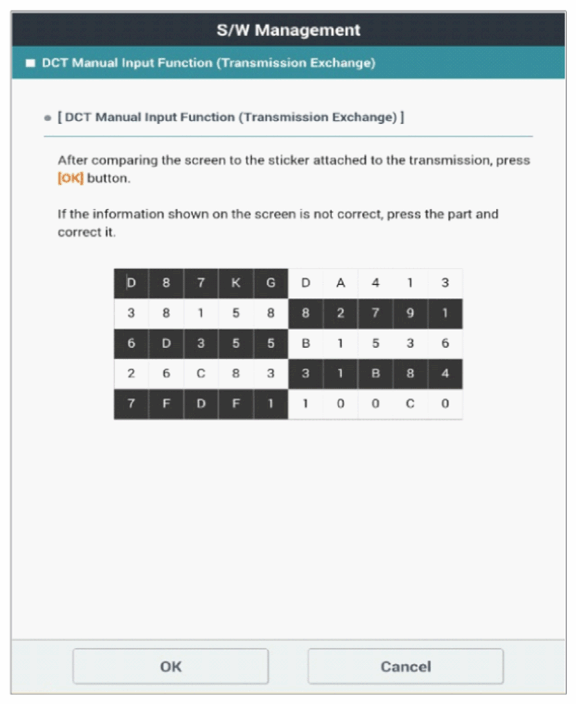

G12937038Courtesy of KIA MOTORS AMERICA, INC.

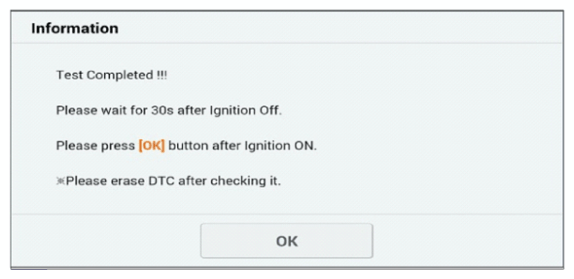

G12937039Courtesy of KIA MOTORS AMERICA, INC.
