Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.

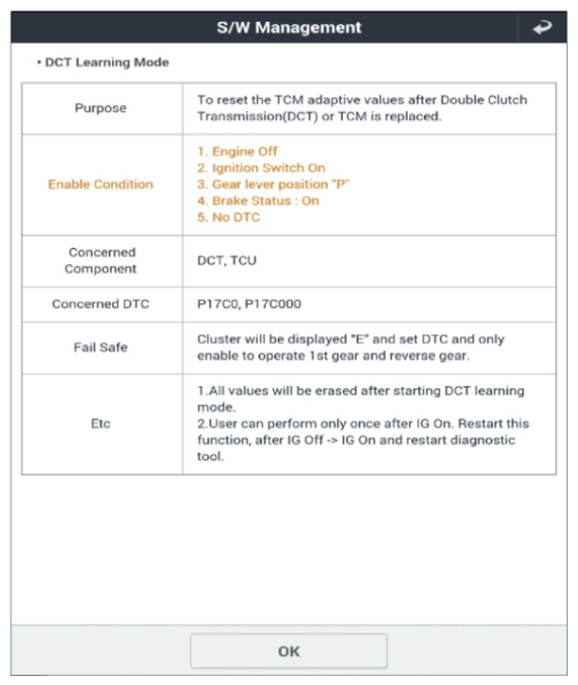

G12937015Courtesy of KIA MOTORS AMERICA, INC.
G12937016Courtesy of KIA MOTORS AMERICA, INC.

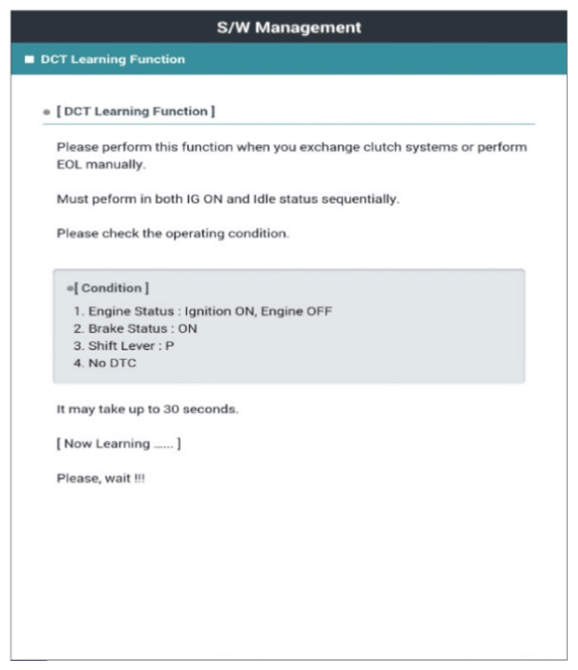

G12937017Courtesy of KIA MOTORS AMERICA, INC.

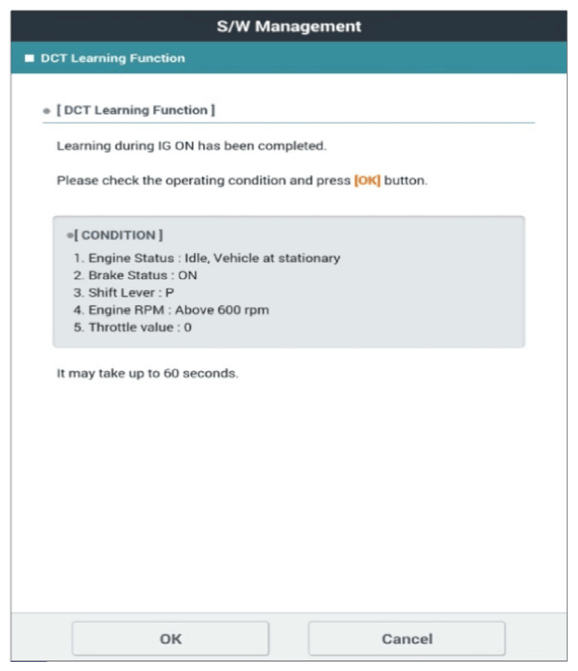

G12937018Courtesy of KIA MOTORS AMERICA, INC.

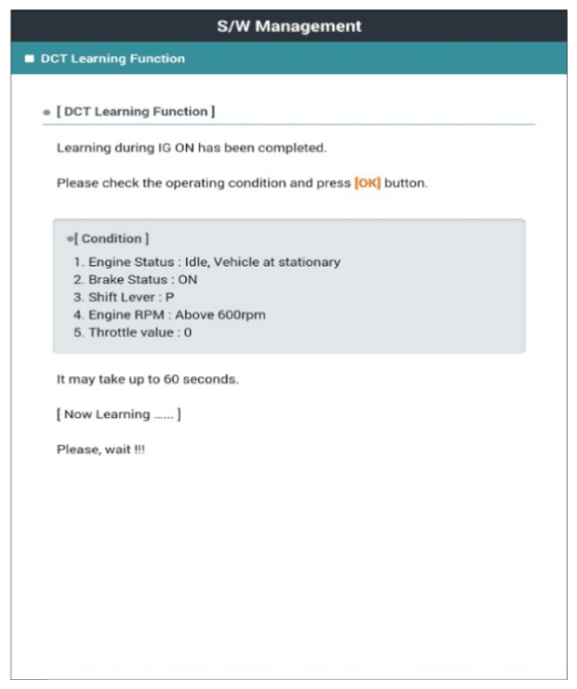

G12937019Courtesy of KIA MOTORS AMERICA, INC.

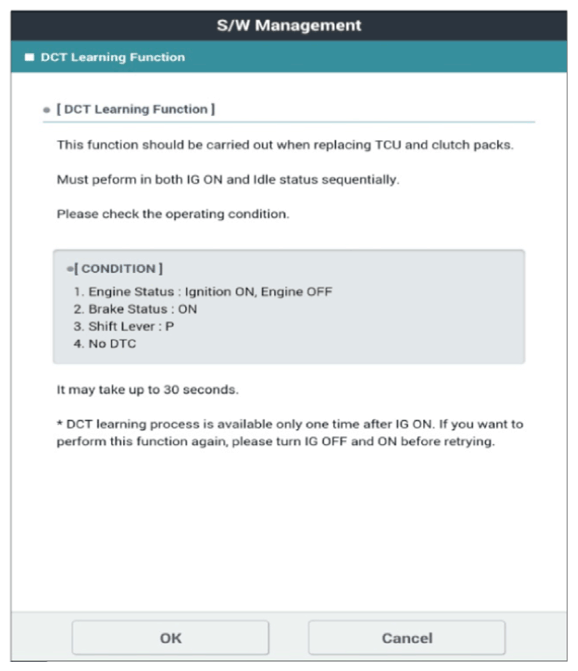

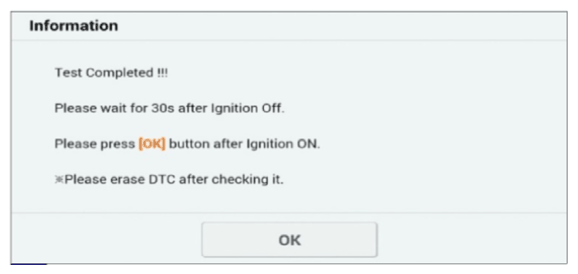

G12937020Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.

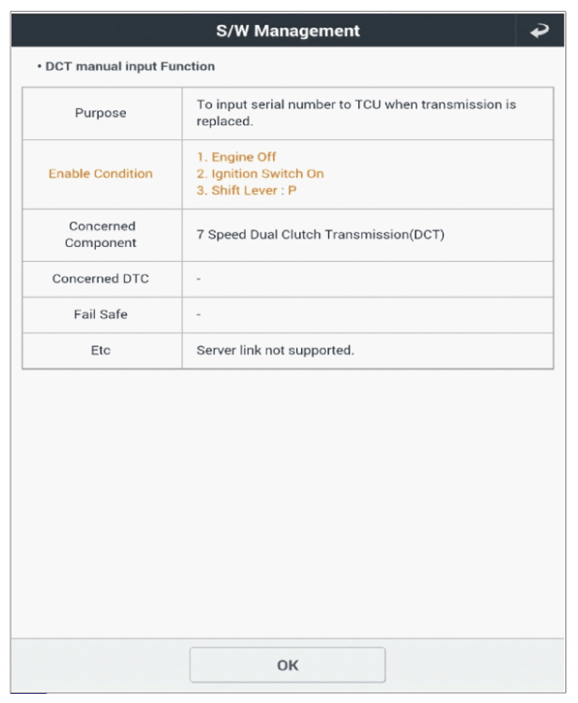

G12937021Courtesy of KIA MOTORS AMERICA, INC.

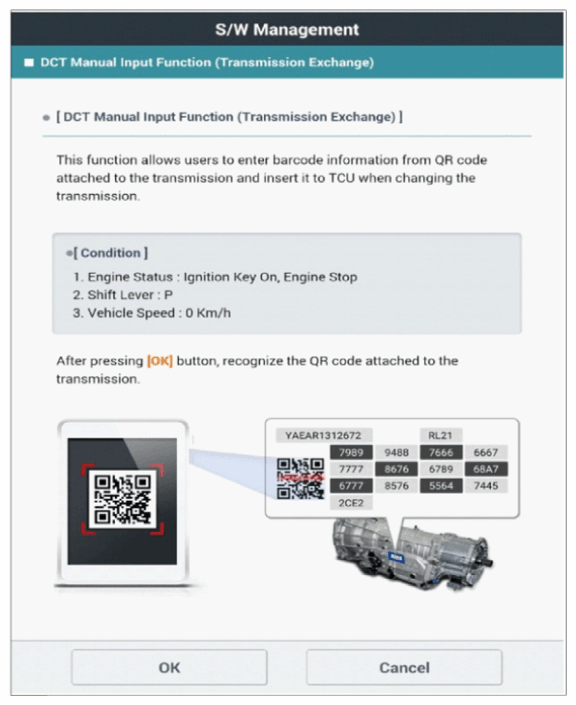

G12937022Courtesy of KIA MOTORS AMERICA, INC.

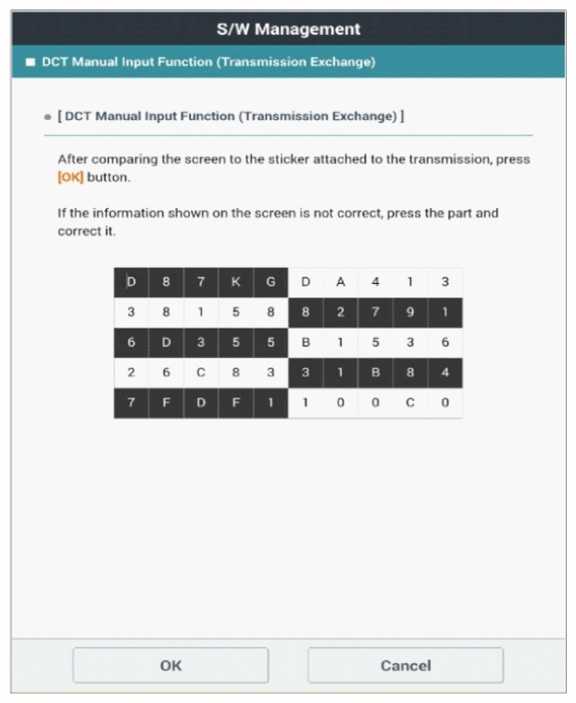

G12937023Courtesy of KIA MOTORS AMERICA, INC.

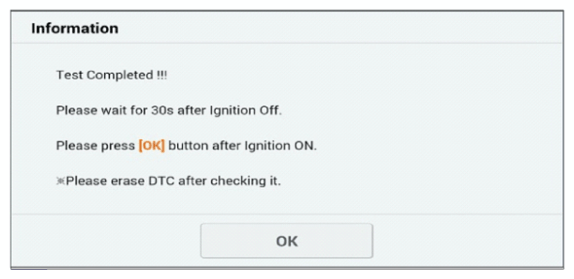

G12937024Courtesy of KIA MOTORS AMERICA, INC.
