Monitor KDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect KDS to Data Link Connector (DLC).
  2. Engine "ON"
  3. Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition.
  4. Move selector lever from "P" range to "D" range. And Driving at 1st gear to 7th gear.
  5. Monitor "Shift Motor 1, 2 position" parameter in "Current Data" with KDS.

    Specification:  Refer to Figure below

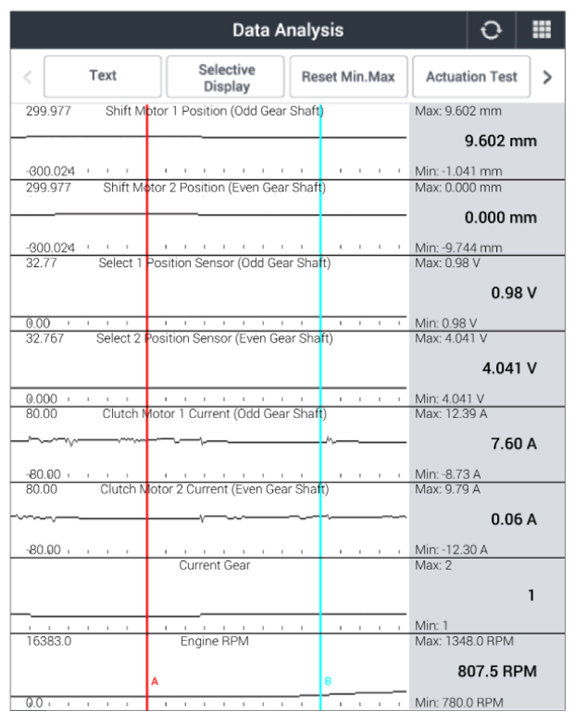

    G12936986Courtesy of KIA MOTORS AMERICA, INC.

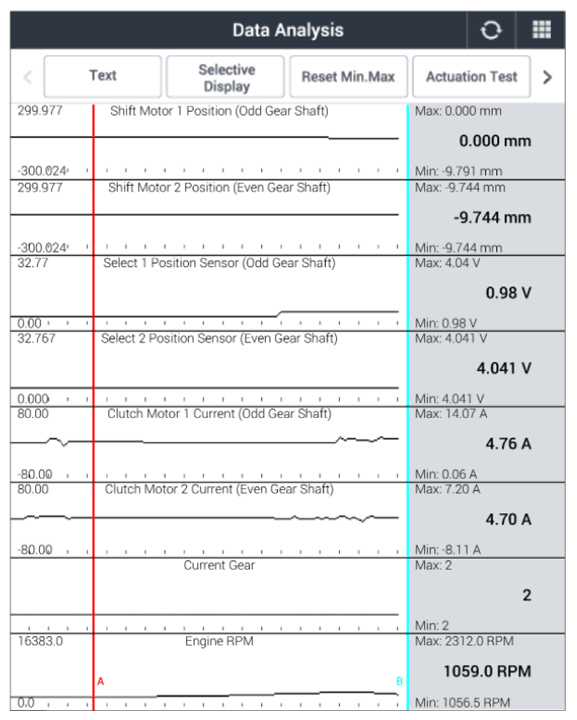

    G12936987Courtesy of KIA MOTORS AMERICA, INC.

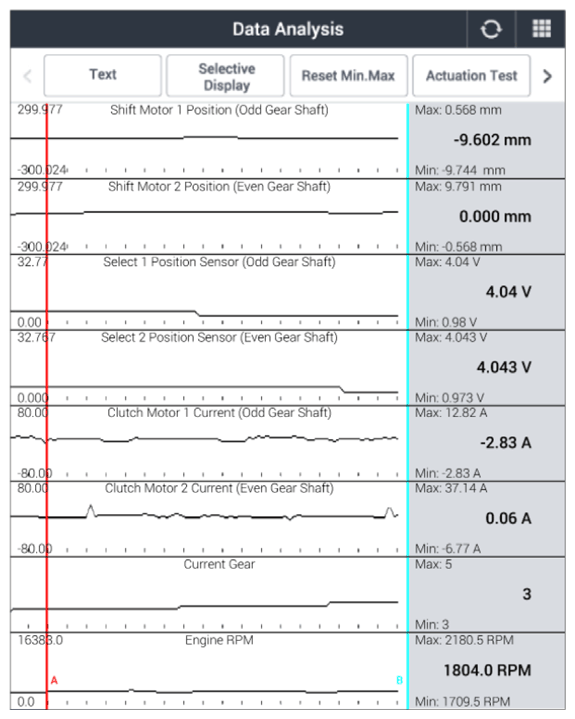

    G12936988Courtesy of KIA MOTORS AMERICA, INC.
    G12936989Courtesy of KIA MOTORS AMERICA, INC.
    G12936990Courtesy of KIA MOTORS AMERICA, INC.

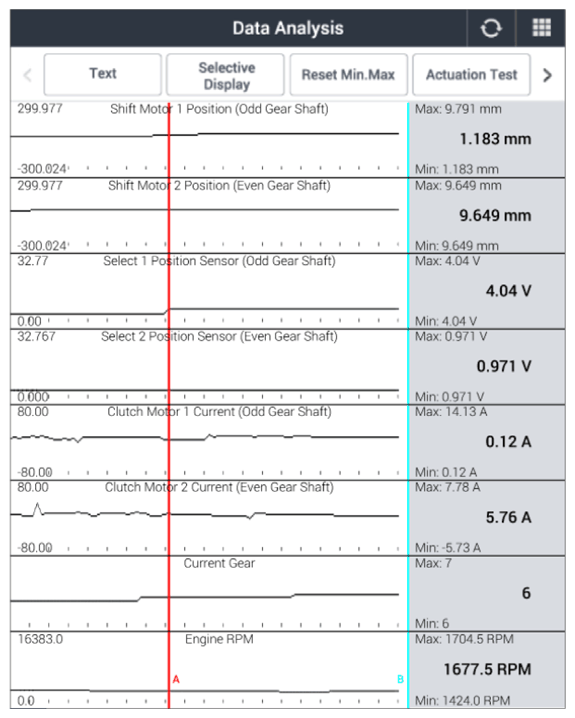

    G12936991Courtesy of KIA MOTORS AMERICA, INC.
    G12936992Courtesy of KIA MOTORS AMERICA, INC.
  6. Is measured value within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
