Monitor KDS Data

WARNING: This page is about a different variant/trim than selected.

Connect KDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON"
Drive Vehicle in accordance with figure below.

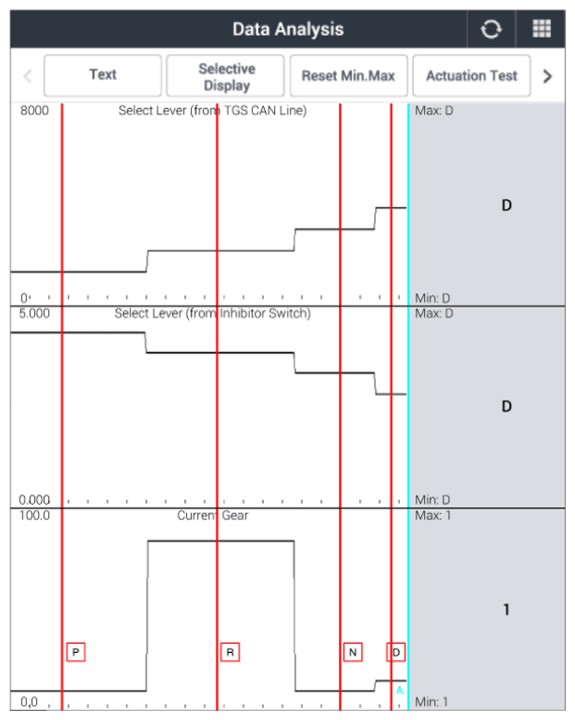

Monitor "Select Lever (from TGS CAN Line)", "Select Lever (from Inhibitor Switch)" and "Current Gear" parameters in A/T system "Current Data" with KDS.
Specification: Refer to Figure below

Courtesy of KIA MOTORS AMERICA, INC.
Is parameter displayed within specification?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Check for Engine related DTC and perform applicable troubleshooting and then re-do this troubleshooting guide steps.
- If Engine related DTCs are corrected and the problem still occurs, go to "WIRING INSPECTION " procedure.
