Vehicle S/W Management

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.
G13505489Courtesy of KIA MOTORS AMERICA, INC.

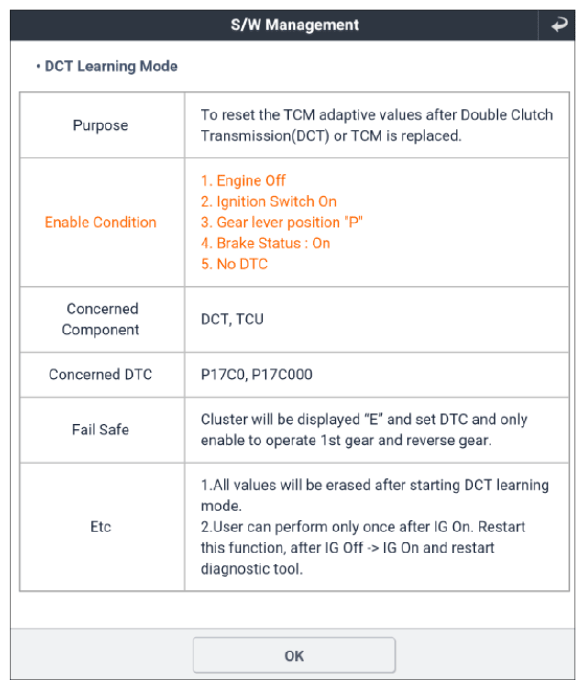

G13505490Courtesy of KIA MOTORS AMERICA, INC.

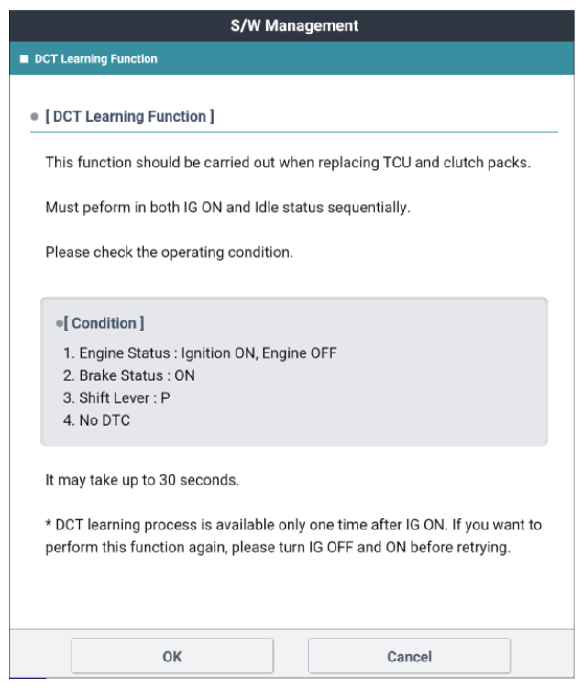

G13505491Courtesy of KIA MOTORS AMERICA, INC.

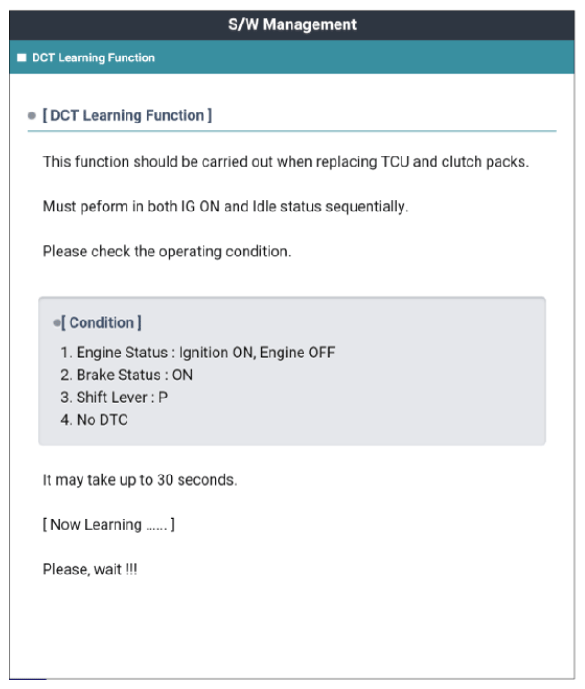

G13505492Courtesy of KIA MOTORS AMERICA, INC.

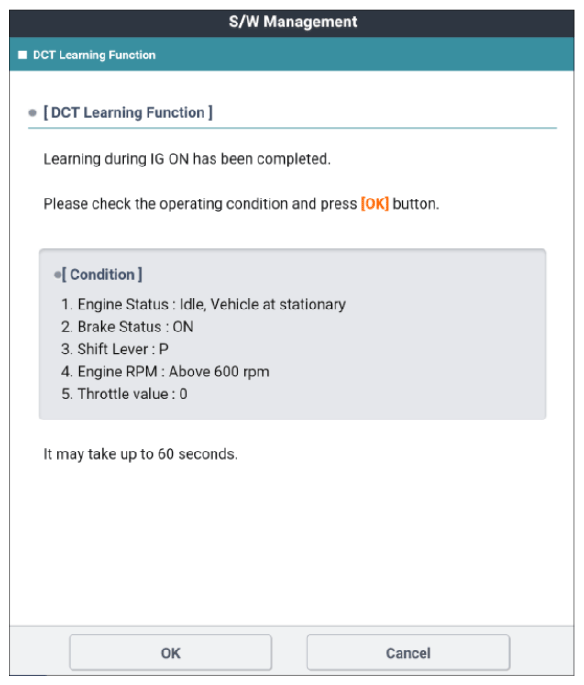

G13505493Courtesy of KIA MOTORS AMERICA, INC.

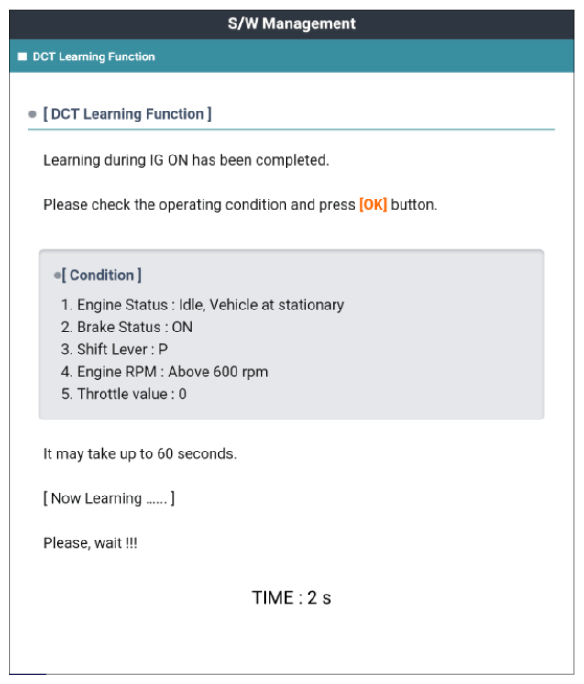

G13505494Courtesy of KIA MOTORS AMERICA, INC.
G13505495Courtesy of KIA MOTORS AMERICA, INC.
