Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. In case of replacing TCM or Clutch pack perform following procedures
G12602194Courtesy of HYUNDAI MOTOR AMERICA

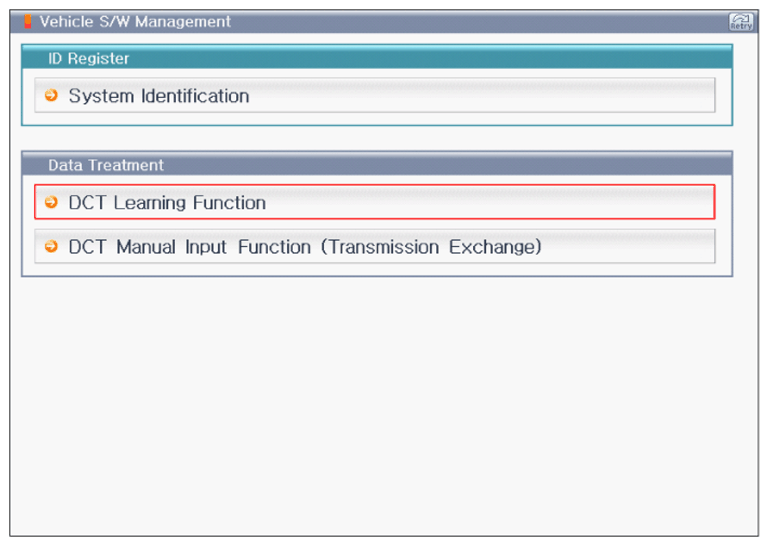

G12602195Courtesy of HYUNDAI MOTOR AMERICA

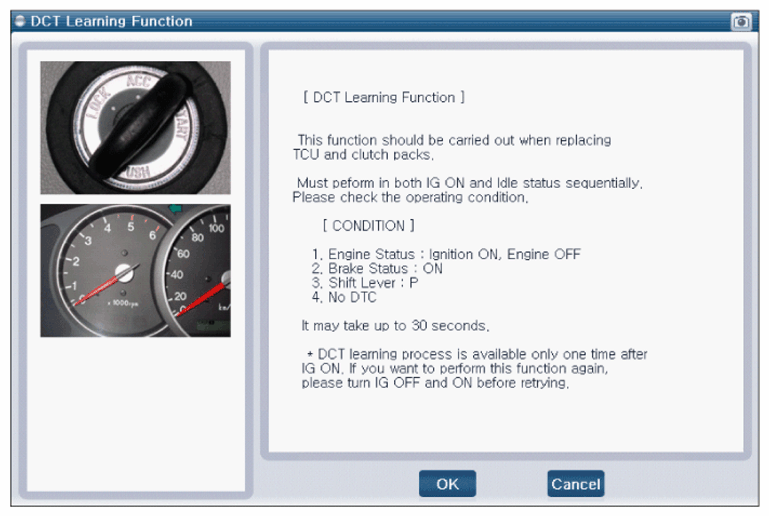

G12602196Courtesy of HYUNDAI MOTOR AMERICA

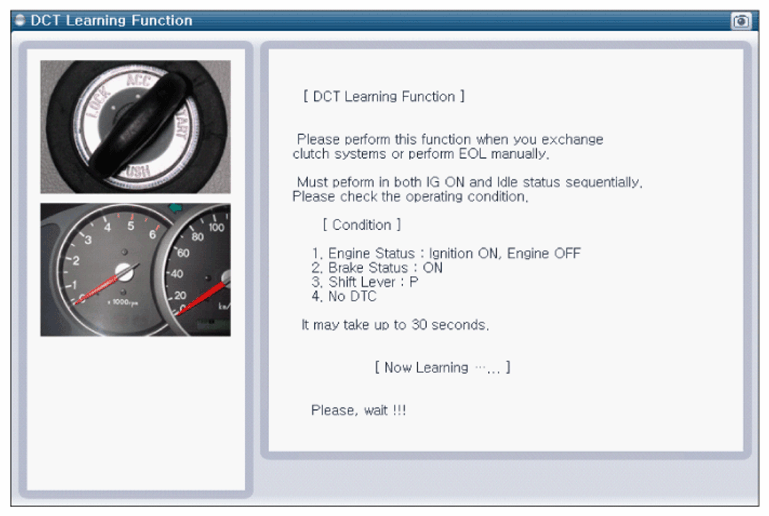

G12602197Courtesy of HYUNDAI MOTOR AMERICA

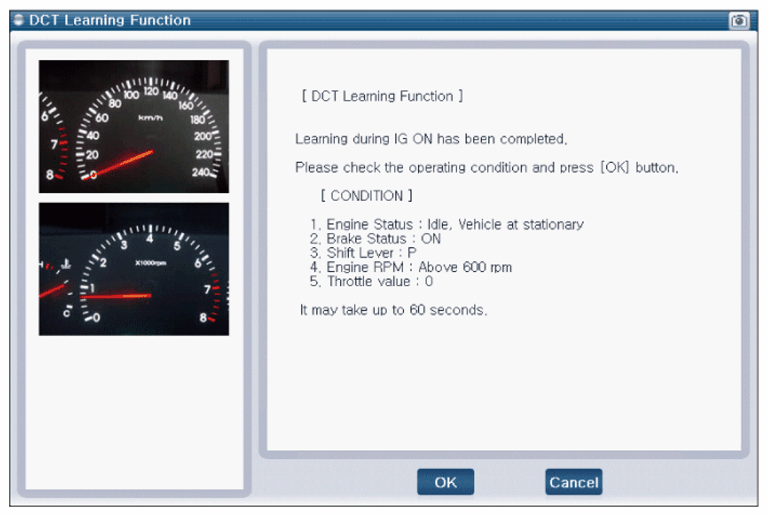

G12602198Courtesy of HYUNDAI MOTOR AMERICA

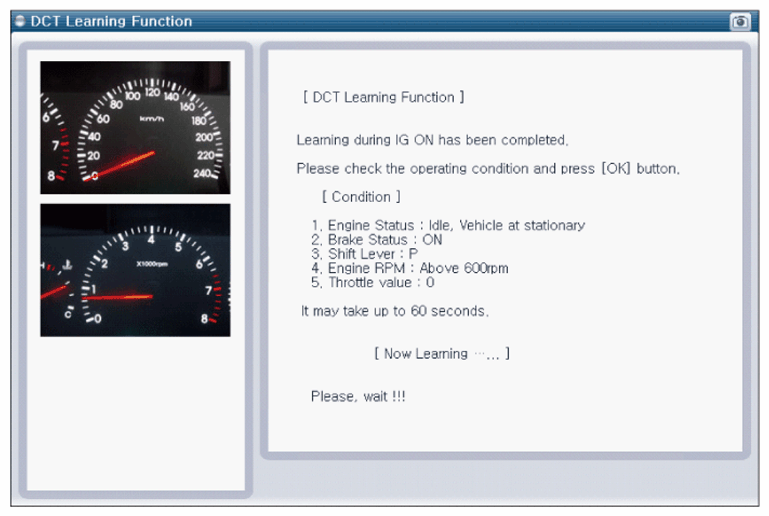

G12602199Courtesy of HYUNDAI MOTOR AMERICA

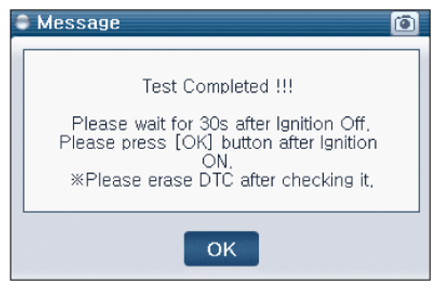

G12602200Courtesy of HYUNDAI MOTOR AMERICA
