Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures
  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12602167Courtesy of HYUNDAI MOTOR AMERICA

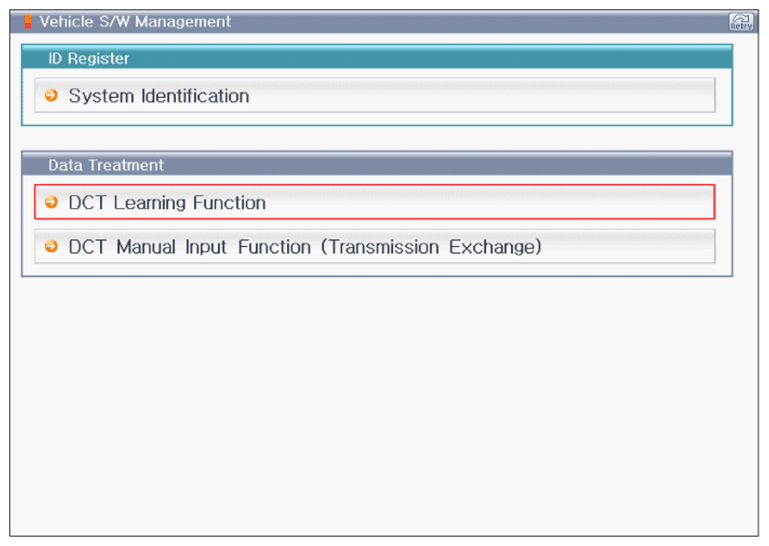

G12602168Courtesy of HYUNDAI MOTOR AMERICA

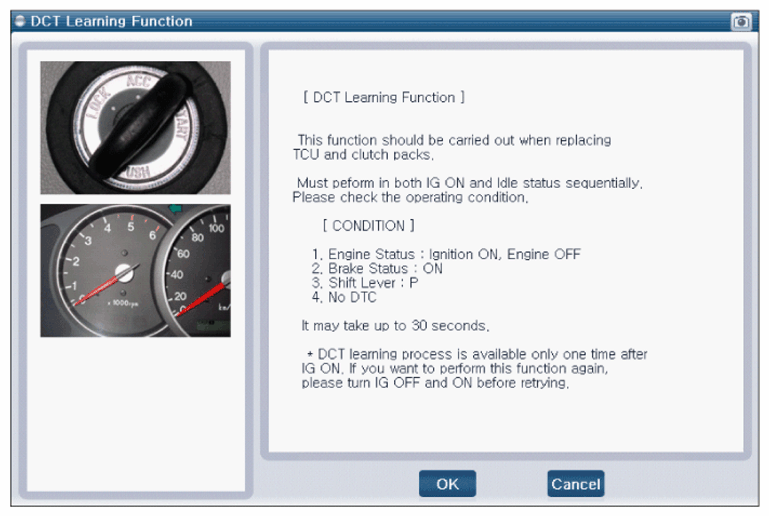

G12602169Courtesy of HYUNDAI MOTOR AMERICA

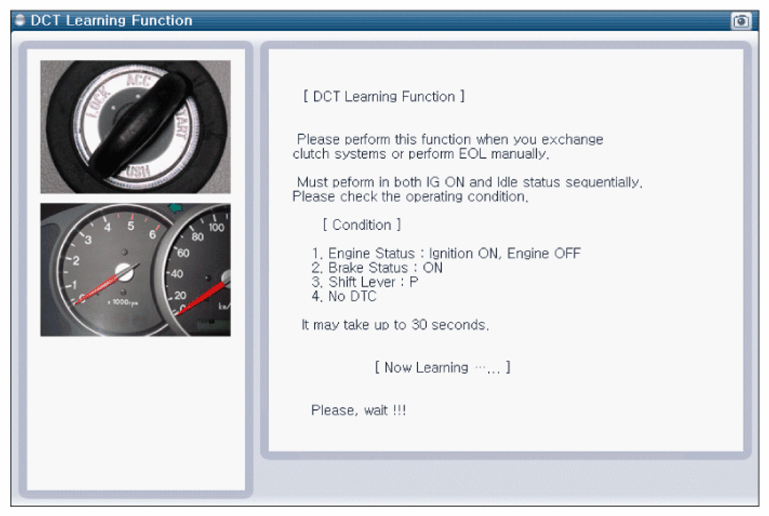

G12602170Courtesy of HYUNDAI MOTOR AMERICA

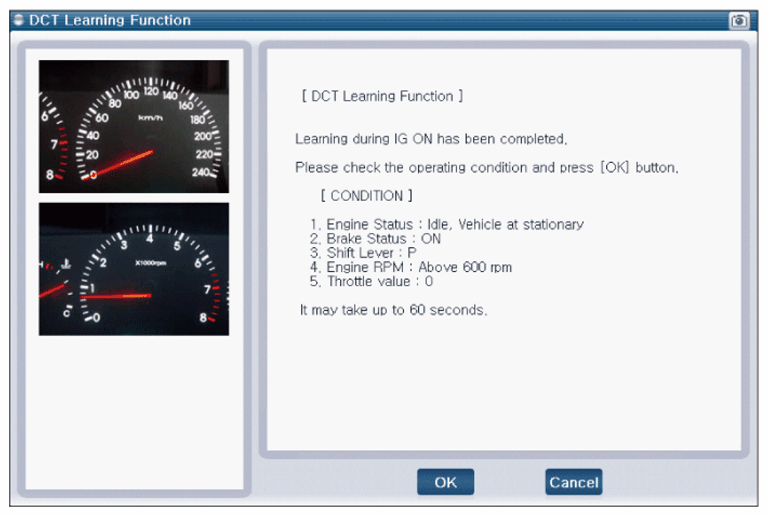

G12602171Courtesy of HYUNDAI MOTOR AMERICA

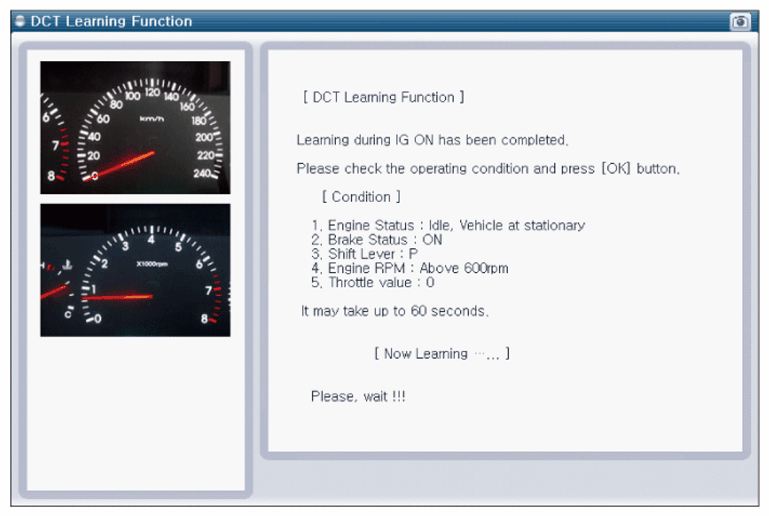

G12602172Courtesy of HYUNDAI MOTOR AMERICA

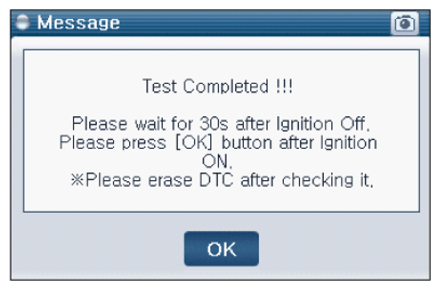

G12602173Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;
  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.

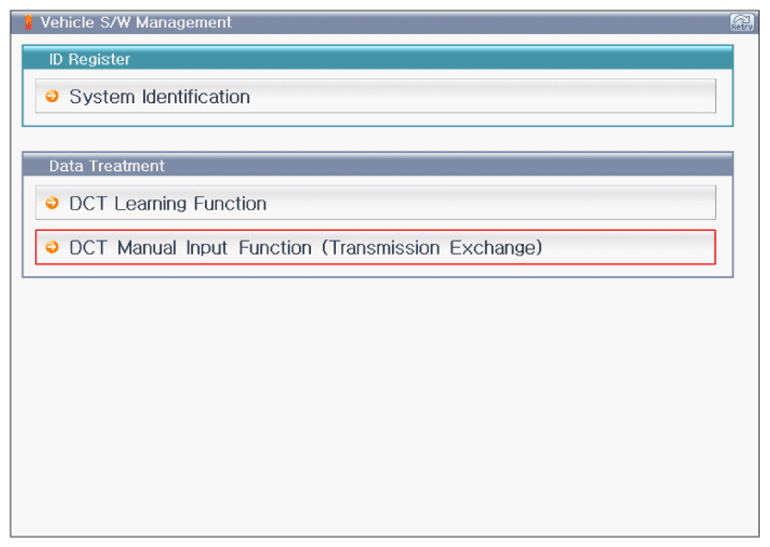

G12602174Courtesy of HYUNDAI MOTOR AMERICA

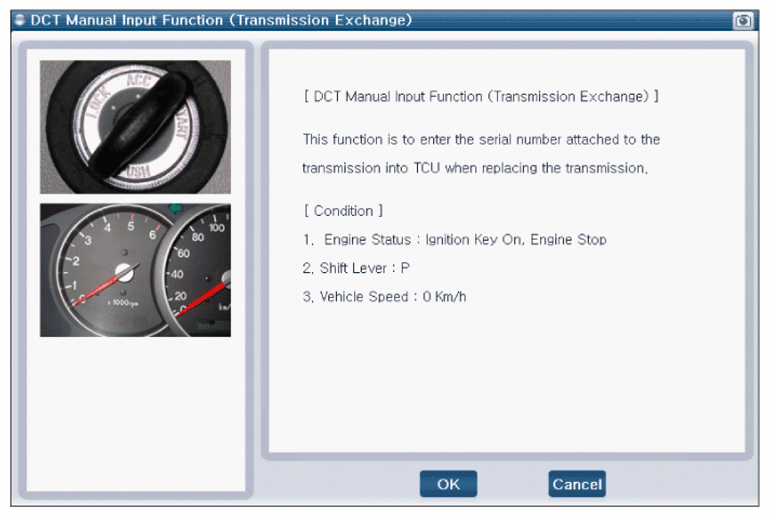

G12602175Courtesy of HYUNDAI MOTOR AMERICA
G12602176Courtesy of HYUNDAI MOTOR AMERICA

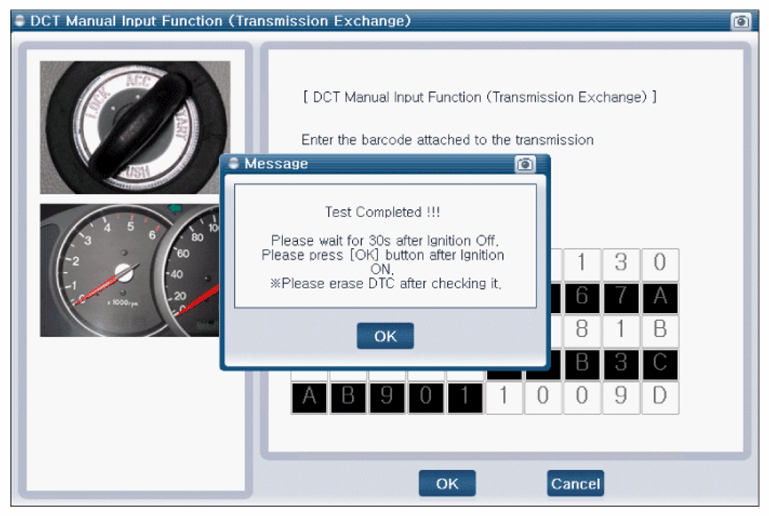

G12602177Courtesy of HYUNDAI MOTOR AMERICA
