Repair Procedures: Replacement

CAUTION:

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.

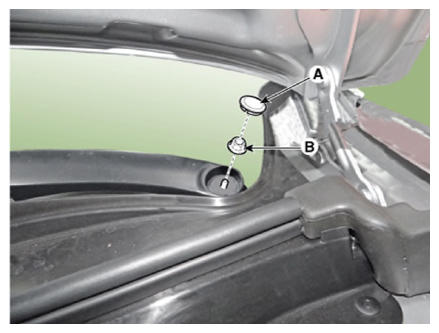

Remove the cap (A) and then remove the nuts (B).
Tightening torque:

22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

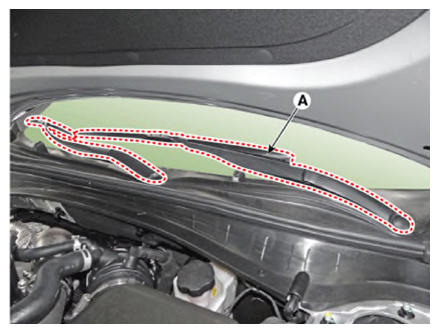

Remove the wiper arm (A).

Courtesy of KIA MOTORS AMERICA, INC.

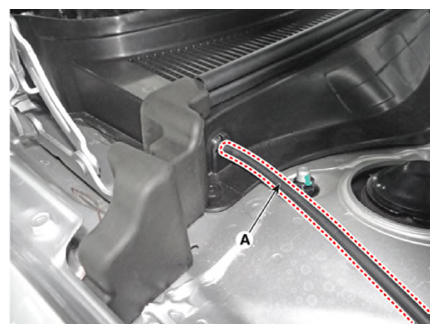

Disconnect the nozzle hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

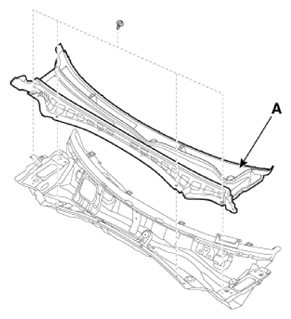

Detach the clips, then remove the cowl top cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
