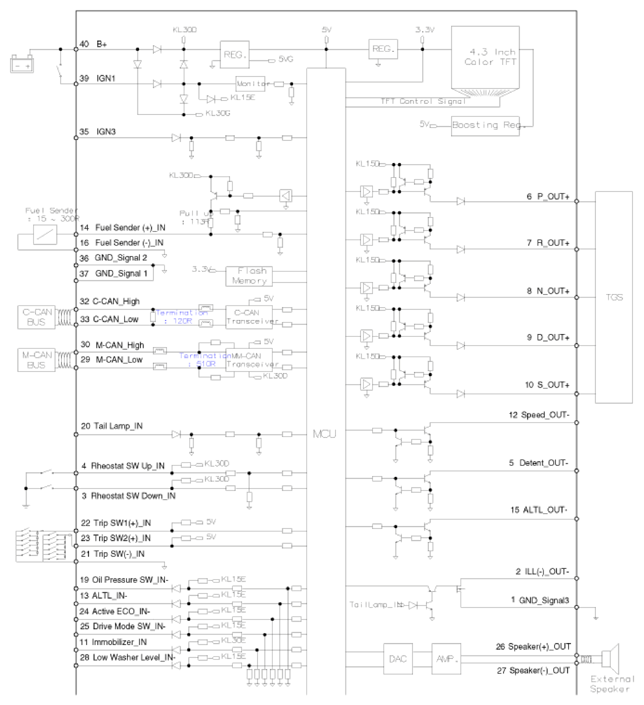

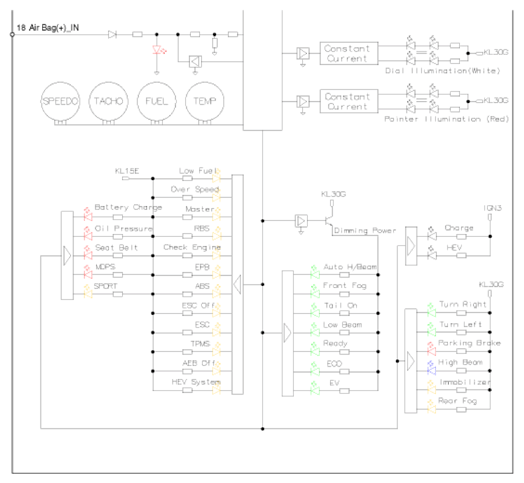

Home >> Kia >> 2020 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Indicators And Gauges (PHEV) >> Instrument Cluster >> Schematic Diagrams >> Circuit Diagram
