Steering Column Shroud Upper Panel

CAUTION: Put on gloves to protect your hands.

Information

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Using a remover, remove the crash pad side cover [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad lower panel (A) after loosening the screw.

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the crash pad lower panel connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

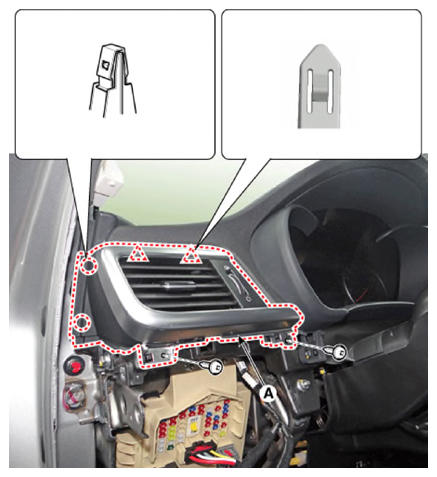

Remove the crash pad garnish [LH] (A) after loosening the screw.

Courtesy of KIA MOTORS AMERICA, INC.
Using a remover, remove the cluster fascia panel (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connectors are connected in properly.
- Replace any damaged clips.
