Steering Column Shroud Lower Panel

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

1. Remove the crash pad lower panel.

   (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

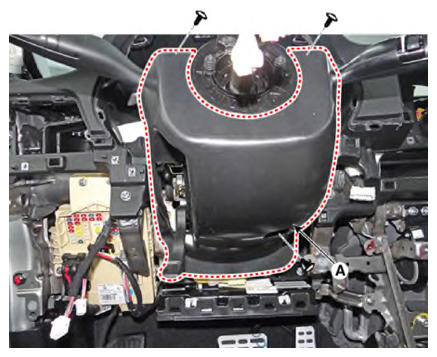

2. Remove the steering column shroud lower panel (A) after loosening the mounting screws.

   Courtesy of KIA MOTORS AMERICA, INC.

3. Install in the reverse order of removal.

   Information

   • Make sure that the connectors are connected in properly.
   • Replace any damaged clips.
