Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

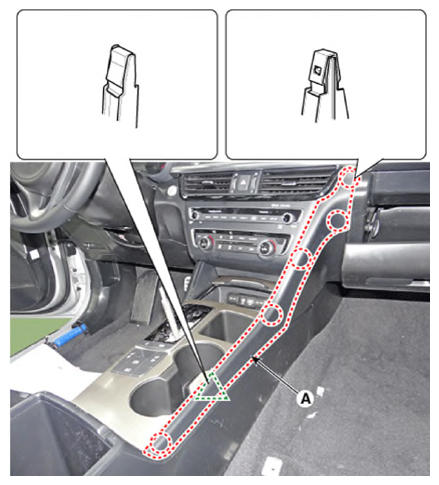

Using a remover, remove the console garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the glove box mounting hole cap (A).

Courtesy of KIA MOTORS AMERICA, INC.
Using a remover, remove the crash pad side cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

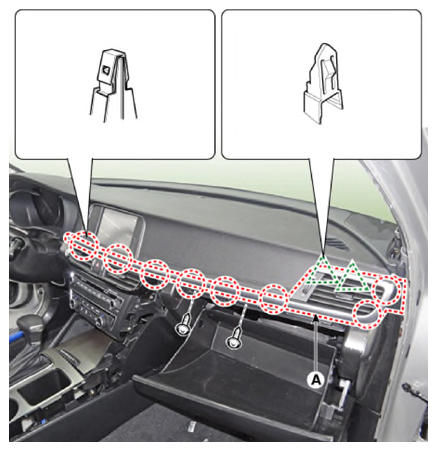

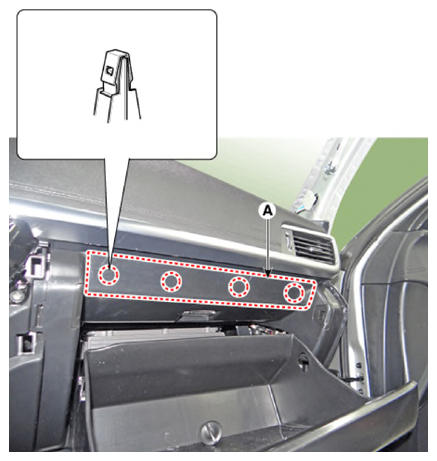

Remove the crash pad garnish [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

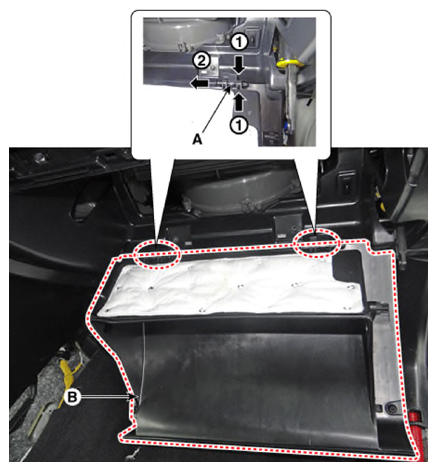

Pull out the stopper (B) from the glove box (A).

Courtesy of KIA MOTORS AMERICA, INC.

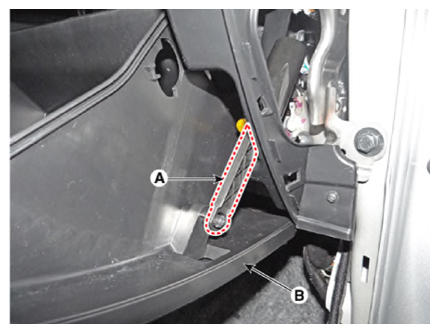

Remove the air damper (A) from the glove box (B).

Courtesy of KIA MOTORS AMERICA, INC.

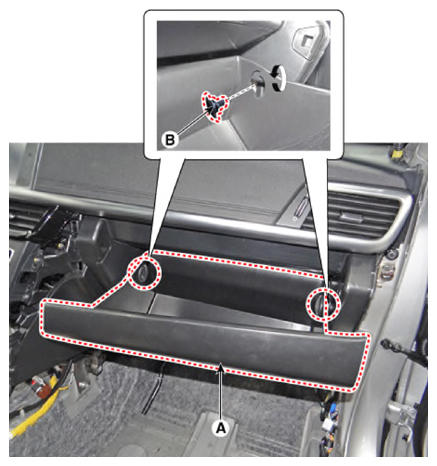

Remove the pins (A) and then remove the glove box (B).

Courtesy of KIA MOTORS AMERICA, INC.

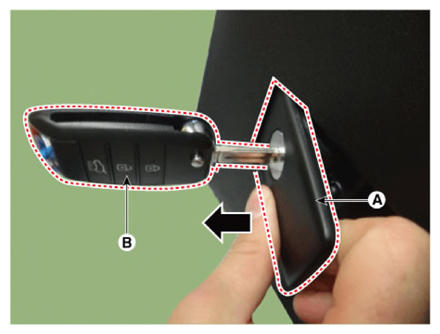

Pull the lever (A). Key must be always in unlock position, otherwise it will not be possible to remove the lock.

Courtesy of KIA MOTORS AMERICA, INC.

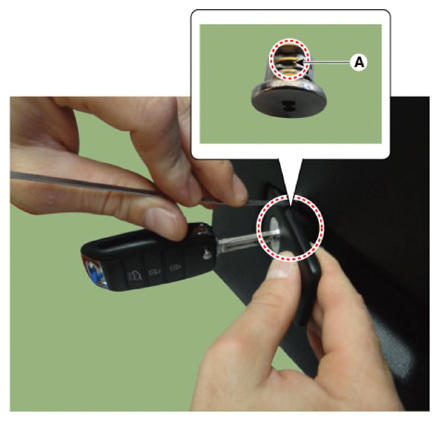

Press the tooth (A) on the lock by pushing it from above with appropriate tool.

Courtesy of KIA MOTORS AMERICA, INC.

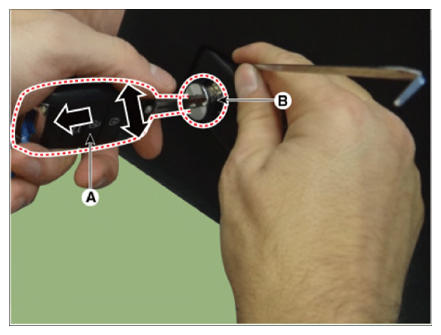

With the recommended tool, push the tooth of the lock, so that the lock can be released from it's position, by pulling the key.

Courtesy of KIA MOTORS AMERICA, INC.

Information

It might be needed to move with the key slightly from right to left to release the lock as shown on the picture by arrow.

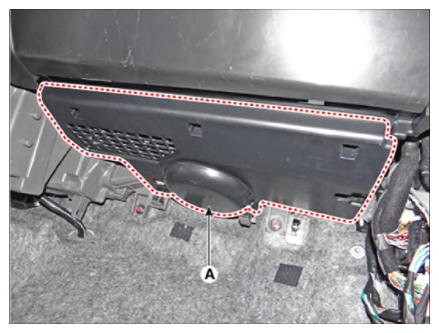

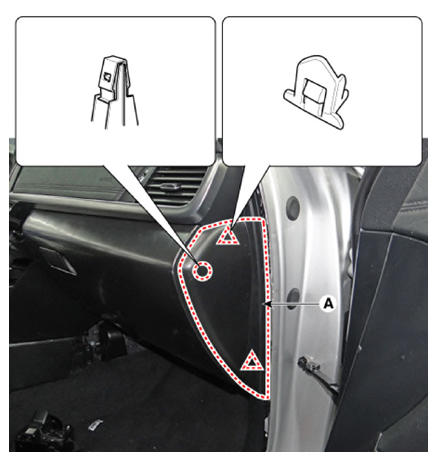

Remove the crash pad under cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

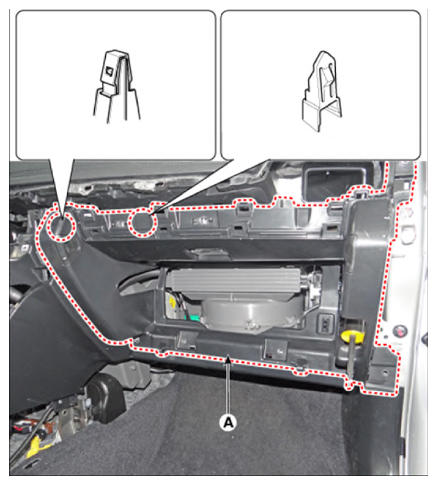

Separate the glove box housing (A) after loosening the mounting screws and bolts & nuts.

Courtesy of KIA MOTORS AMERICA, INC.

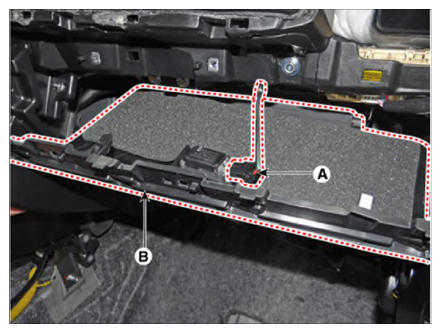

Disconnect the glove box lamp connector (A) and glove box housing (B).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connectors are connected in properly.
- Replace any damaged clips.
