Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the cowl top cover.
(Refer to "COWL TOP COVER ")
Remove the main crash pad assembly.
(Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")
Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")
Remove the front door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
Disconnect the steering column connectors.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
Lower the steering column after loosening the mounting bolts.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
Remove the accelerator pedal.
(Refer to Engine Control/Fuel System - "REPAIR PROCEDURES ")
Separate the floor carpet (A) to allow space for removing the rear heating duct.
[Driver Side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger Side]

Courtesy of KIA MOTORS AMERICA, INC.
Detach the mounting clip and then remove the rear heating duct (A).
[Driver Side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger Side]

Courtesy of KIA MOTORS AMERICA, INC.

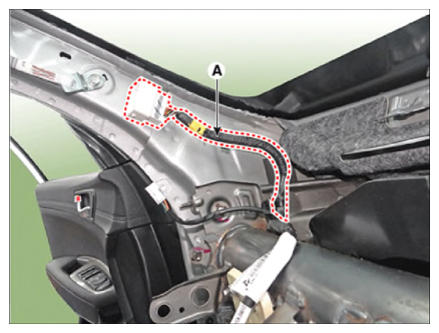

Disconnect the connector (A) and the mounting clips in the front pillar.
[Driver Side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger Side]

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the multi box connectors (A).
[Driver Side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger Side]

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the passenger compartment junction box connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the airbag control module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the mode actuator (A), AFLS unit (B), and temperature actuator (C) connectors.
[Driver Side]

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the auto defogging connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the temperature actuator (A), FET (B), and evaporator temperature sensor (C) connectors.
[Passenger Side]

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the intake actuator connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the blower motor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the cowl cross bar mounting bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl cross bar mounting bolt cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

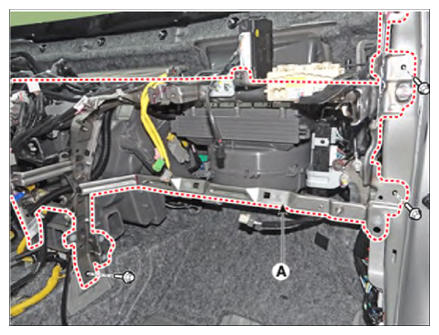

Remove the cowl cross bar assembly (A) after loosening the mounting bolts & nuts.
[Driver Side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger Side]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connectors are connected in properly.
- Replace any damaged clips.
