Center Fascia Lower Panel

Using a remover, remove the console garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

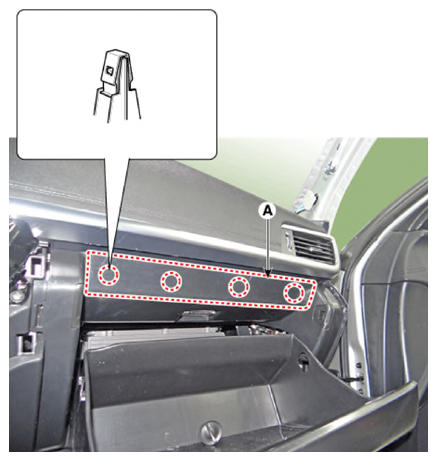

Remove the glove box mounting hole cap (A).

Courtesy of KIA MOTORS AMERICA, INC.
Using a remover, remove the crash pad side cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad garnish [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

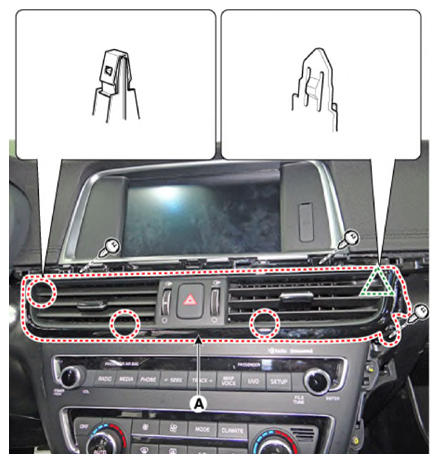

Separate the center fascia panel (A) after loosening the screw.

Courtesy of KIA MOTORS AMERICA, INC.

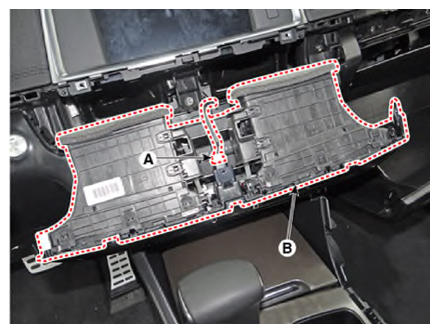

Disconnect the hazard switch connector (A) and then remove the center fascia panel (B).

Courtesy of KIA MOTORS AMERICA, INC.

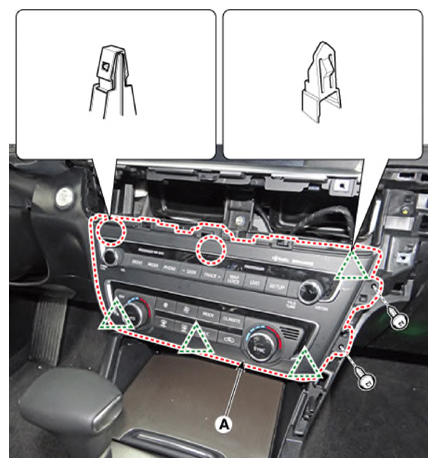

Separate the center fascia lower panel (A) after loosening the screw.

Courtesy of KIA MOTORS AMERICA, INC.

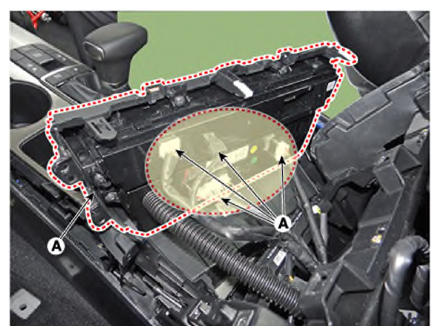

Disconnect the connectors & hose and remove the center fascia lower panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

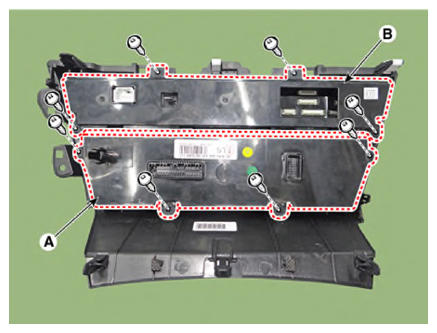

Remove the heater unit (A) & audio unit (B) after loosening the screw.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connector is connected properly.
- Replace any damaged clips.
