Monitor KDS Data

  1. Ignition "OFF", connect KDS.
  2. Ignition "ON", select "Current Data" mode.

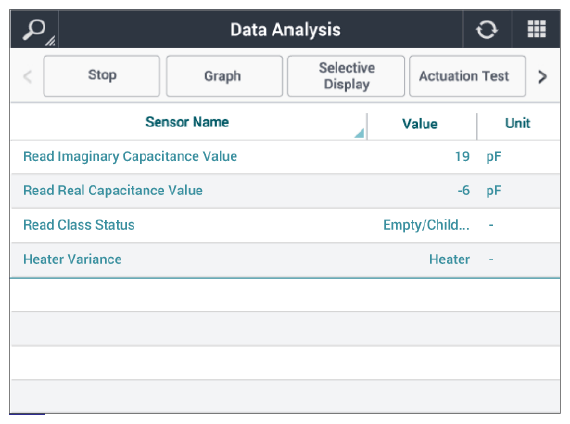

  3. Monitor the "Read Class Status" parameter on the KDS.
    G12905439Courtesy of KIA MOTORS AMERICA, INC.
    G12905440Courtesy of KIA MOTORS AMERICA, INC.
  4. Has a problem been found?

    YES

    NO

    • Fault is intermittent caused by poor contact in the part's and/or Passenger side Body sensor Mat & ECU connector or was repaired and Passenger side Body sensor Mat & ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
