Monitor DTC Status

Connect KDS to Data Link Connector (DLC).
Ignition "ON"

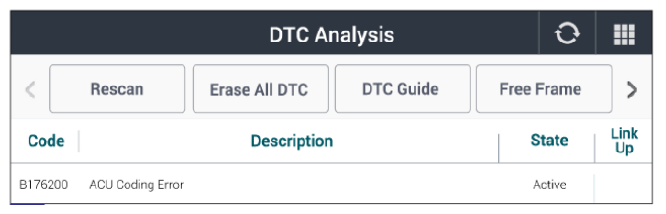

Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Clear the DTCs and Carefully re-do this troubleshooting guide steps.
- If problem still occurs, perform SRSCM (ACU) Variant Coding and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
