Monitor DTC status
- Connect KDS to Data Link Connector (DLC).
- Ignition "ON"

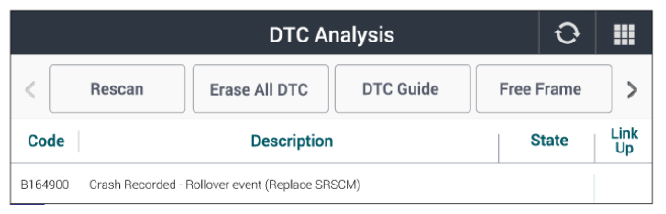

- Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
- Is DTC status displayed as Present?
YES
- Clear the DTCs and Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
