Main harness Circuit Inspection (1)

Ignition "OFF".
Disconnect the battery (-) cable and wait at least for one minute.
Disconnect Buckle Switch Passenger connector and SRSCM main harness connector.

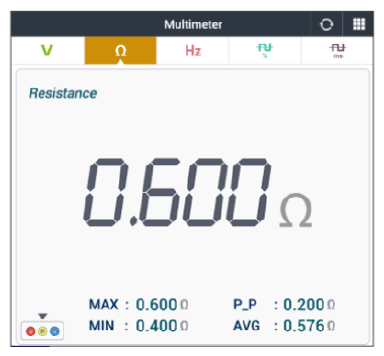

Measure resistance between Pin No. 7 (High) terminal of Buckle Switch Passenger harness connector and Pin No. 44 (High) terminal of SRSCM harness connector.
Specification: Approx. 1 Ω below

Courtesy of KIA MOTORS AMERICA, INC.
Is the measured resistance within specifications?
YES
- Go to "MAIN HARNESS CIRCUIT INSPECTION (2) " procedure.
NO
- Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
