Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.
G13505472Courtesy of KIA MOTORS AMERICA, INC.

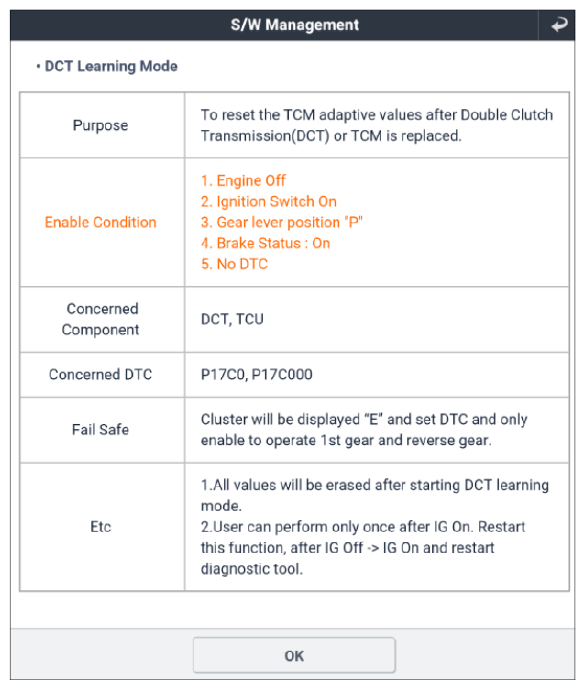

G13505473Courtesy of KIA MOTORS AMERICA, INC.

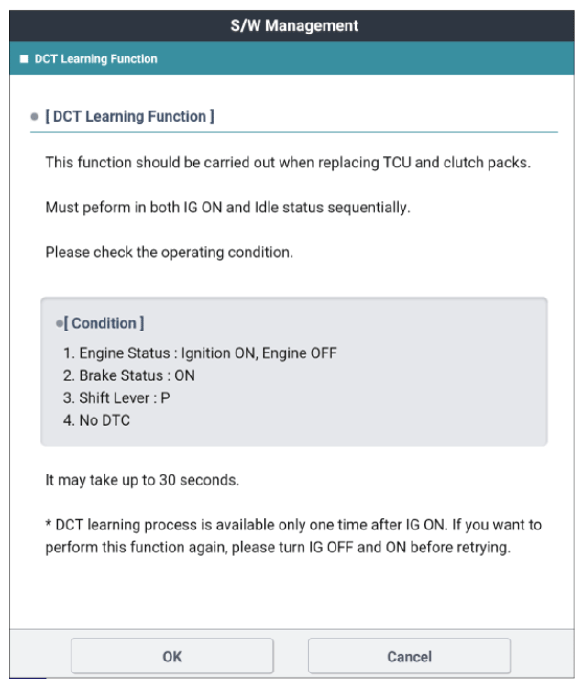

G13505474Courtesy of KIA MOTORS AMERICA, INC.

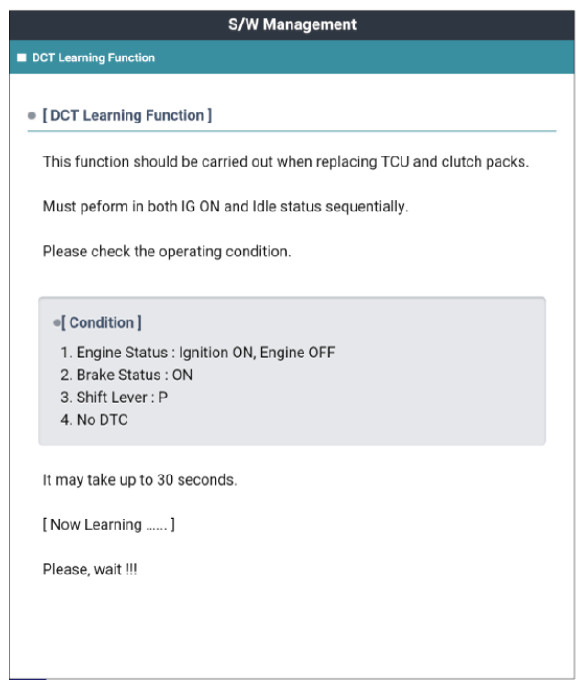

G13505475Courtesy of KIA MOTORS AMERICA, INC.

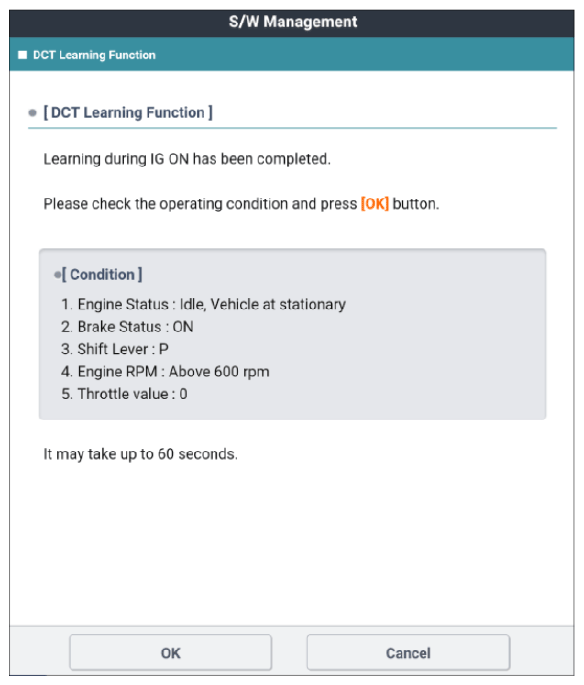

G13505476Courtesy of KIA MOTORS AMERICA, INC.

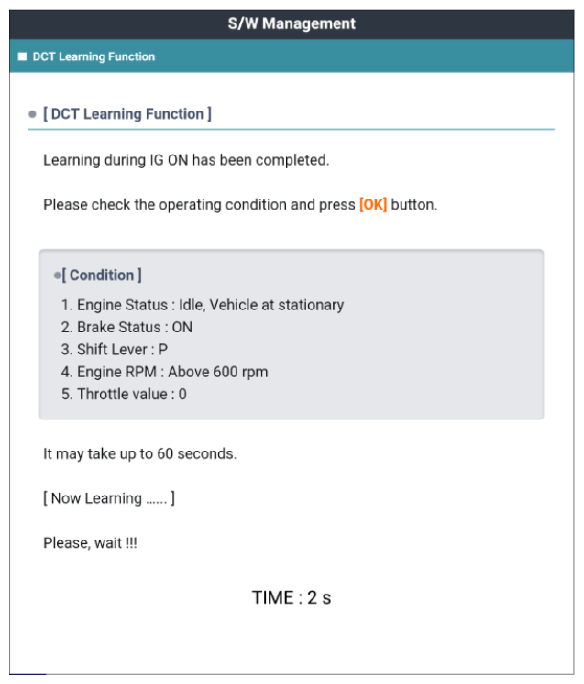

G13505477Courtesy of KIA MOTORS AMERICA, INC.
G13505478Courtesy of KIA MOTORS AMERICA, INC.
