Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.
G13505815Courtesy of KIA MOTORS AMERICA, INC.

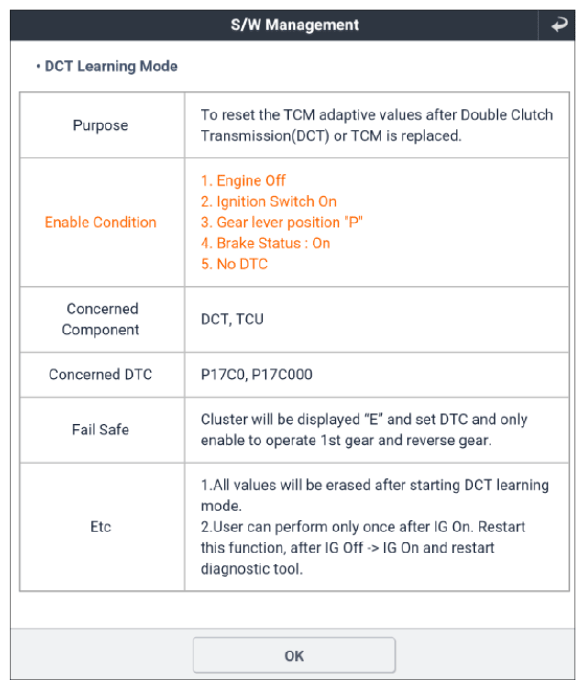

G13505816Courtesy of KIA MOTORS AMERICA, INC.

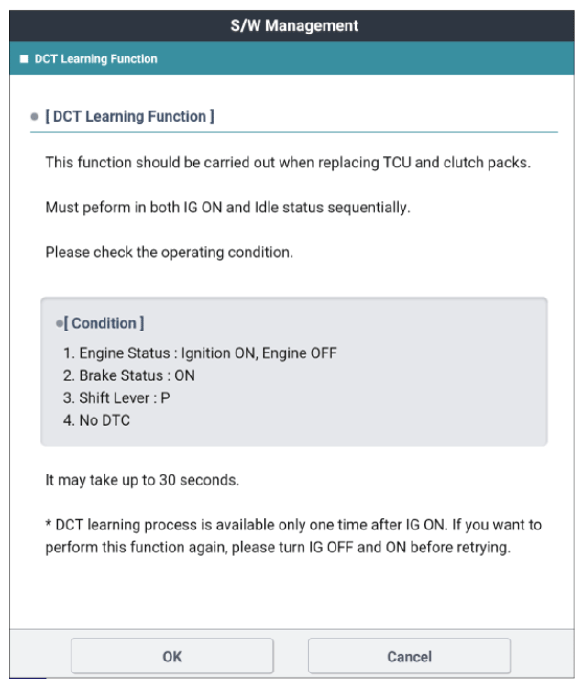

G13505817Courtesy of KIA MOTORS AMERICA, INC.

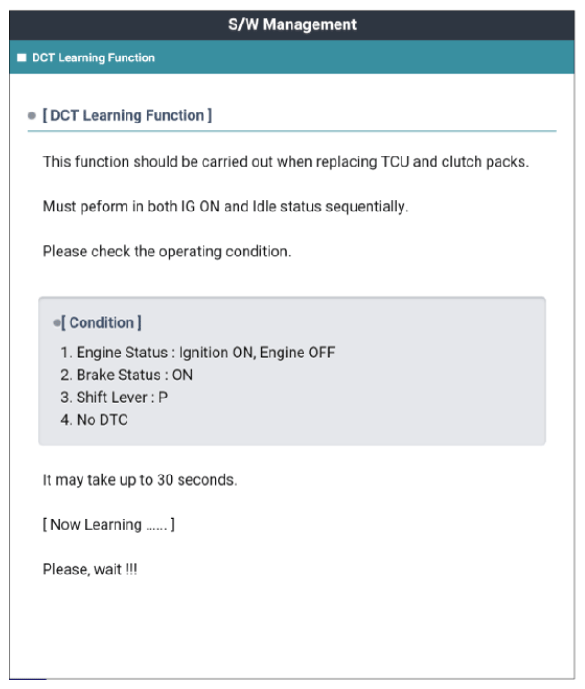

G13505818Courtesy of KIA MOTORS AMERICA, INC.

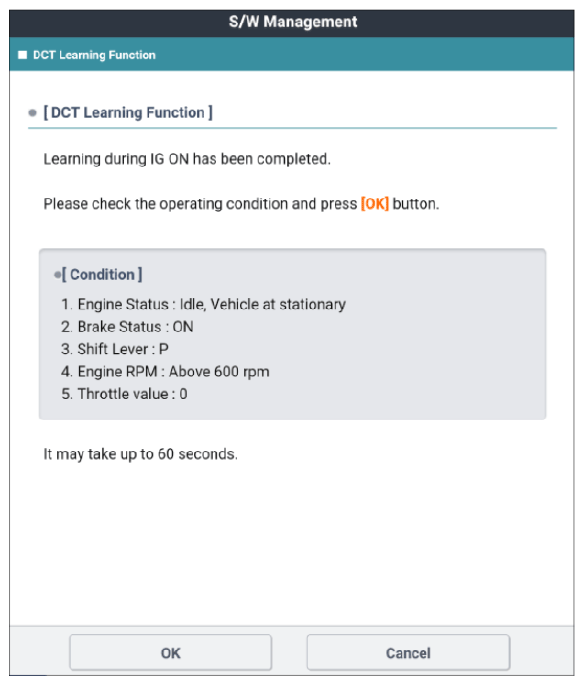

G13505819Courtesy of KIA MOTORS AMERICA, INC.

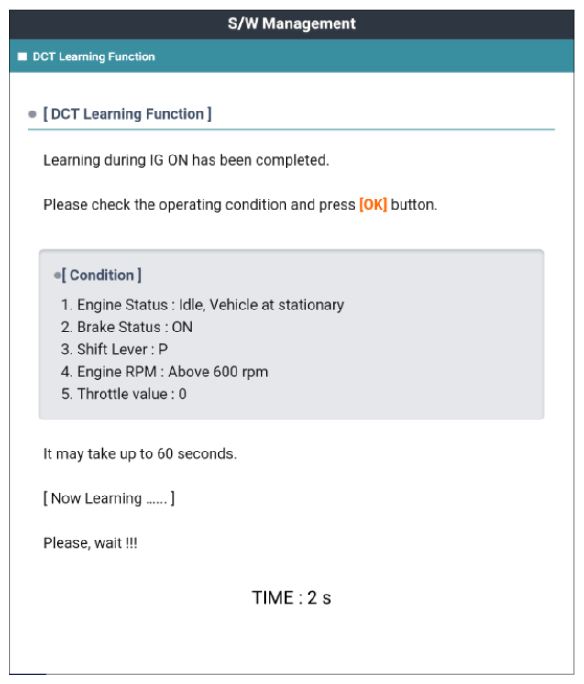

G13505820Courtesy of KIA MOTORS AMERICA, INC.
G13505821Courtesy of KIA MOTORS AMERICA, INC.
