Rear Muffler

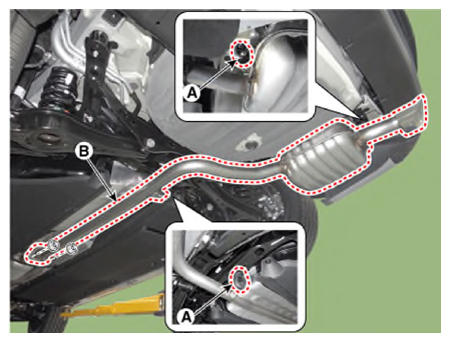

  1. Detach the rubber hanger (A) from rear muffler.
  2. Remove the rear muffler (B).
    G12915019Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
