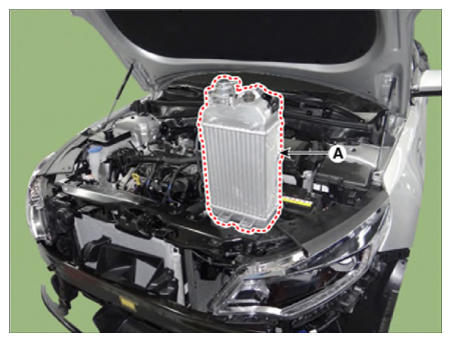

Removal And Installation

Disconnect the battery negative (-) terminal.
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

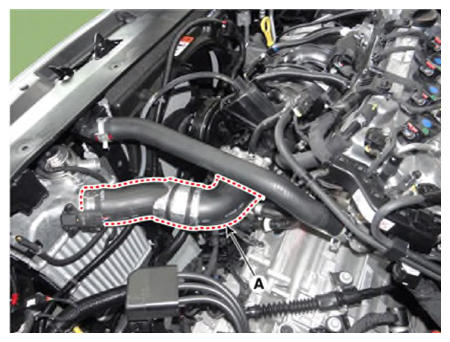

Disconnect the intercooler outlet hose (A).
Tightening torque:

4.9 - 6.8 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

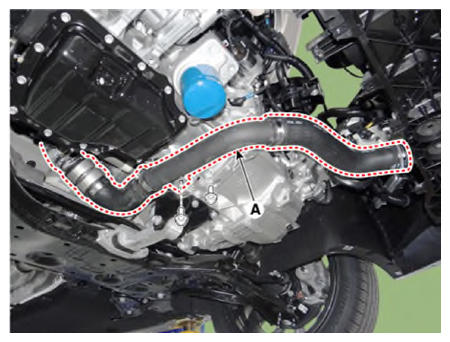

Remove the intercooler inlet hose & pipe (A).
Tightening torque

Bolts:

19.6 - 26.4 N.m (2.0 - 2.7 kgf.m, 14.4 - 19.5 lb.ft)

Clamp:

4.9 - 6.8 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

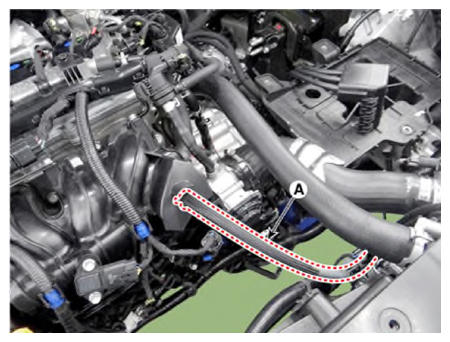

Disconnect the RCV solenoid valve hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

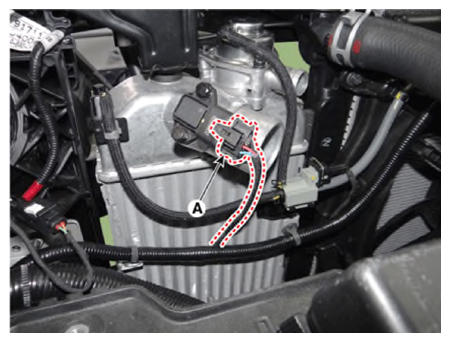

Disconnect the boost pressure sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

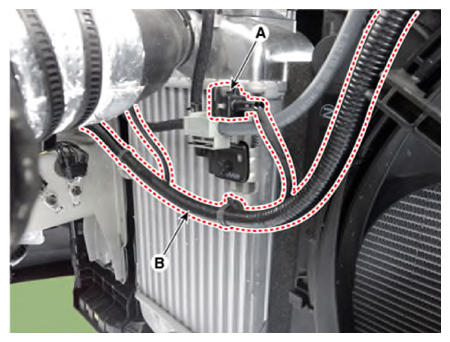

Disconnect the RCV solenoid valve connector (A), and then remove the wiring (B) from the intercooler.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ")

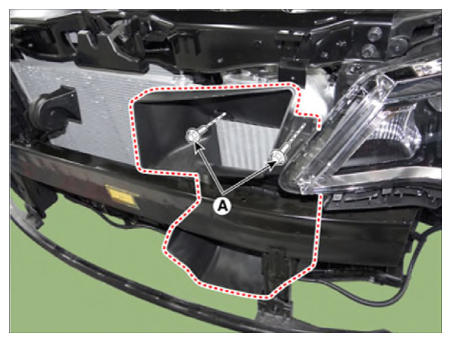

Remove the air guide mounting bolt (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

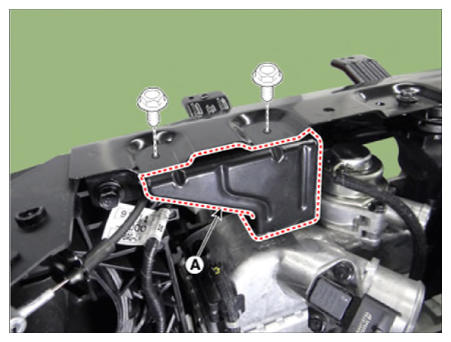

Remove the intercooler upper mounting bracket (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the intercooler (A).

Courtesy of KIA MOTORS AMERICA, INC.

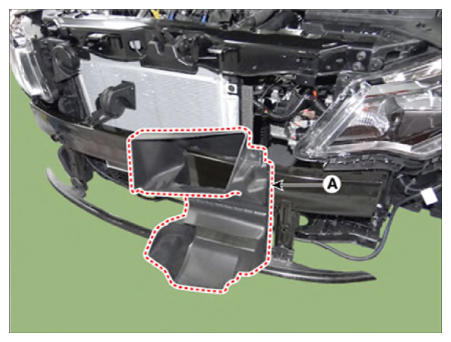

Remove the air guard (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Match the marking part of hose and marking part of throttle body, compressor.
- Match the pipe stopper and hose marking.
- When the band part is placed on the position mark of hose, install not to exceed the mark.
- Tighten until the torque control cap is released. If there is no torque control cap, tighten as specified torque.
