Air Cleaner Element Replacement

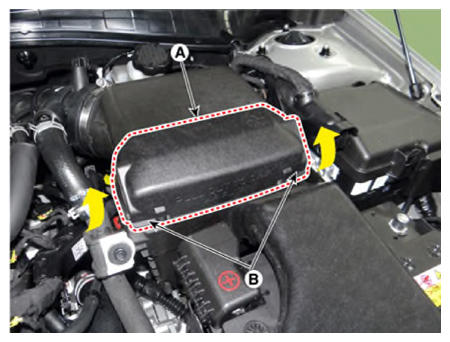

  1. Open the air cleaner element cover (A) by lifting up the air cleaner element cover handle (B).
    G12914973Courtesy of KIA MOTORS AMERICA, INC.

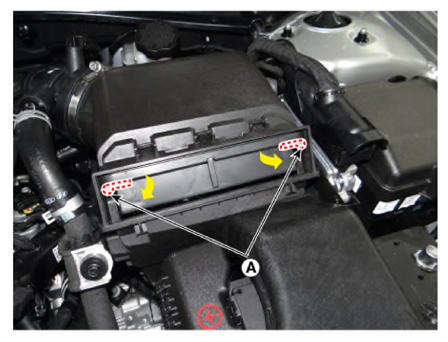

  2. Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.
    G12914974Courtesy of KIA MOTORS AMERICA, INC.

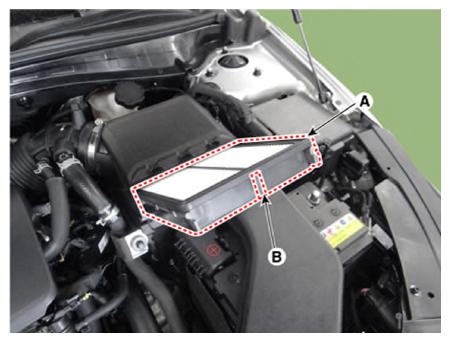

  3. Replace the air cleaner element (A) with a new one.
    G12914975Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Grab the handle (B) then pull out the air cleaner element.

  4. Close the service cover by hooking the clamp.
