Vehicle S/W Management

CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Learning" in "Vehicle S/W Management" with KDS.

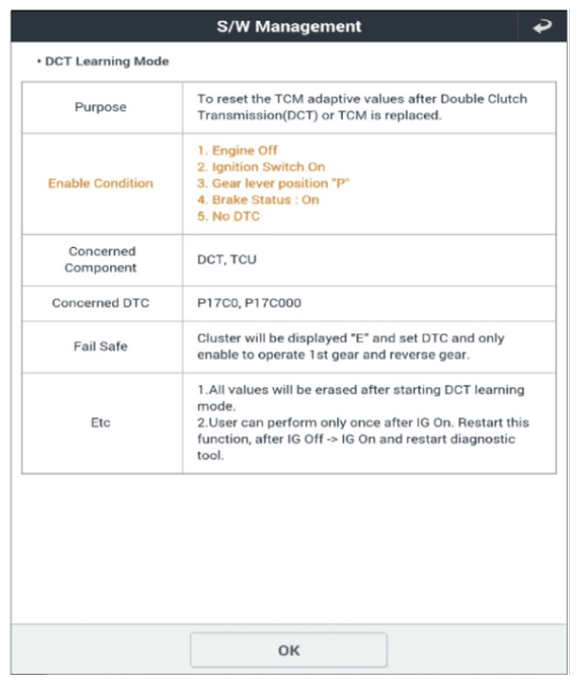

G12937138Courtesy of KIA MOTORS AMERICA, INC.

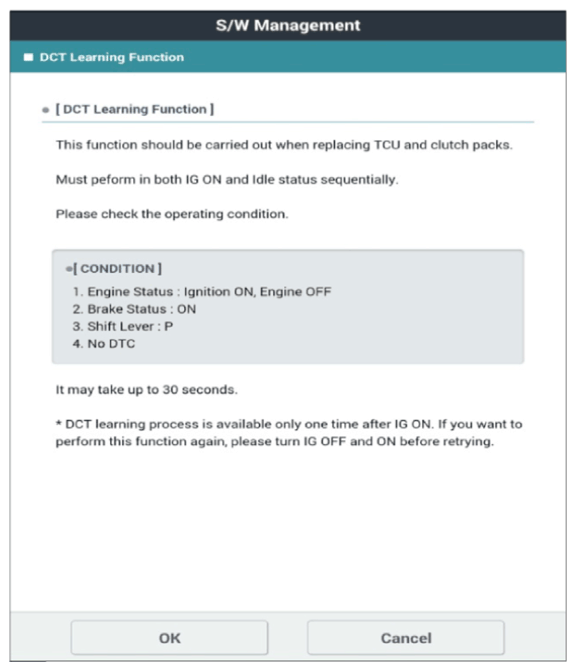

G12937139Courtesy of KIA MOTORS AMERICA, INC.

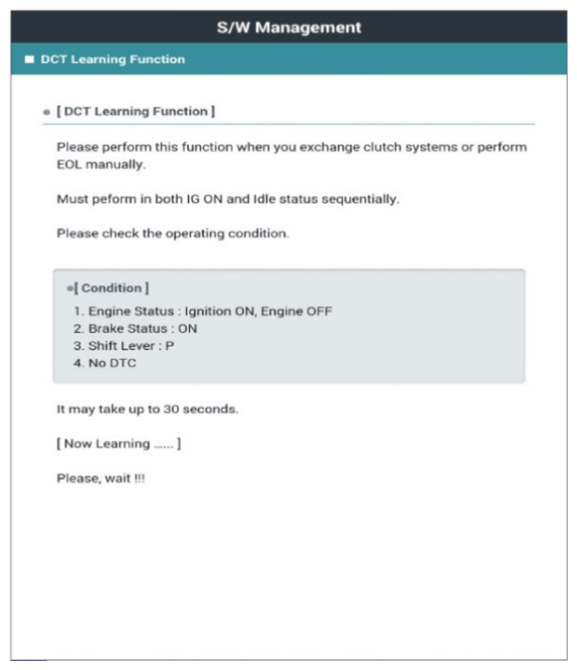

G12937140Courtesy of KIA MOTORS AMERICA, INC.

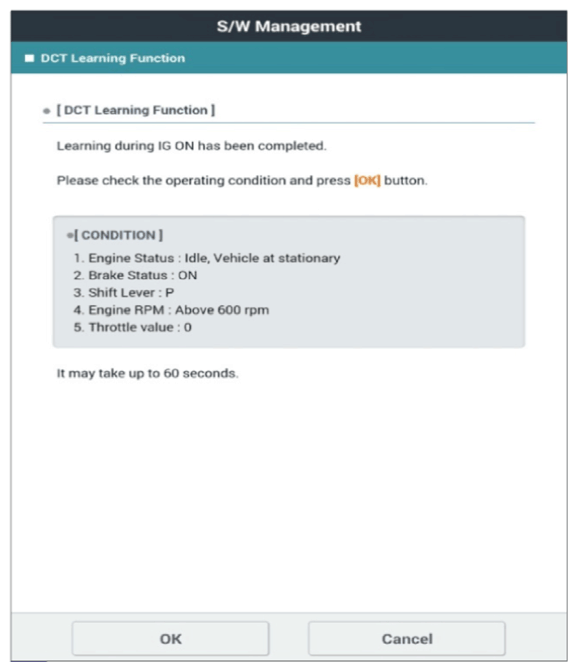

G12937141Courtesy of KIA MOTORS AMERICA, INC.

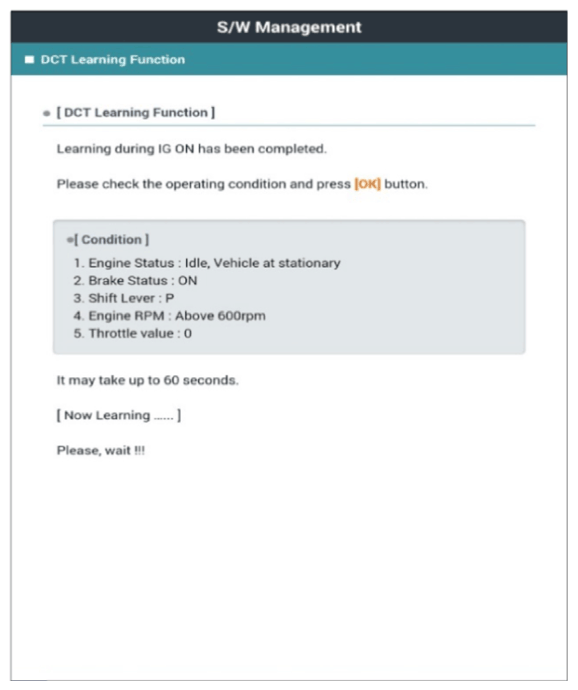

G12937142Courtesy of KIA MOTORS AMERICA, INC.

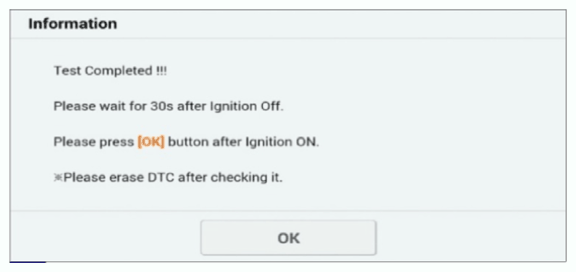

G12937143Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: In case of replacing DCT perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.

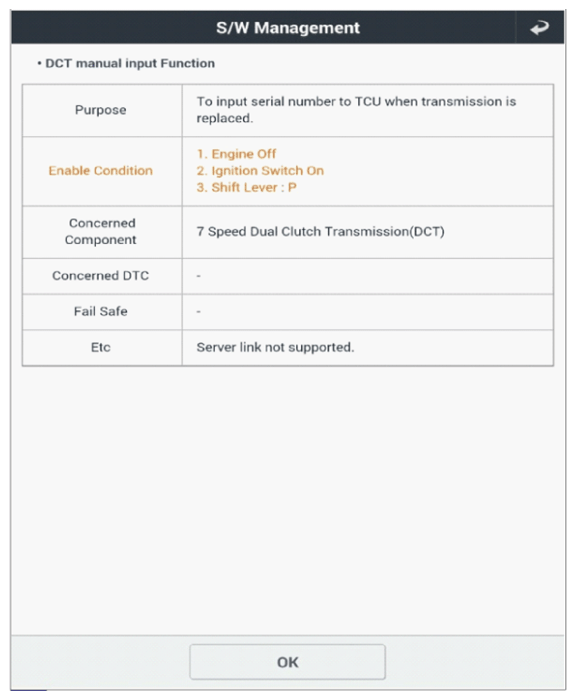

G12937144Courtesy of KIA MOTORS AMERICA, INC.

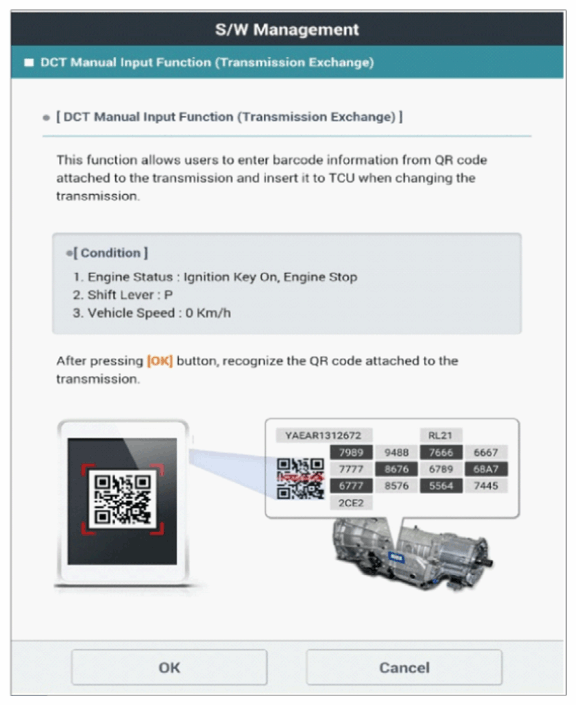

G12937145Courtesy of KIA MOTORS AMERICA, INC.

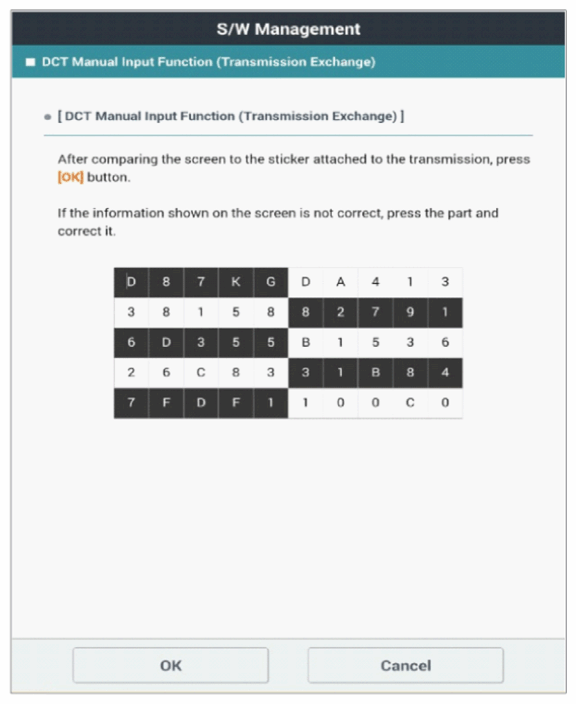

G12937146Courtesy of KIA MOTORS AMERICA, INC.

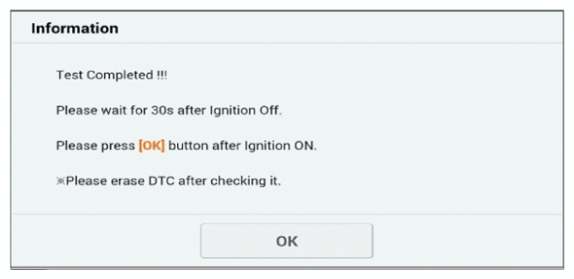

G12937147Courtesy of KIA MOTORS AMERICA, INC.
