Repair Procedures: Removal

Information

• Mark all wiring and hoses to avoid misconnection.
• Turn the crankshaft pulley so that the No. 1 piston is at top dead center.

1. Remove the timing chain

   (Refer to Timing System - "TIMING CHAIN ")

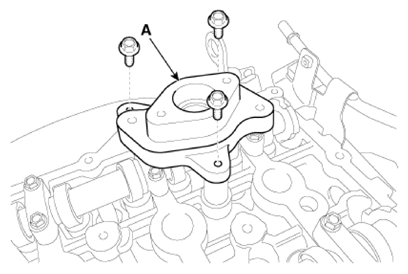

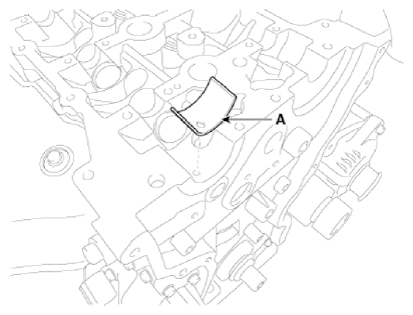

2. Remove the fuel pump bracket (A).

   Courtesy of KIA MOTORS AMERICA, INC.

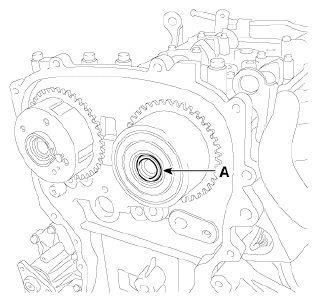

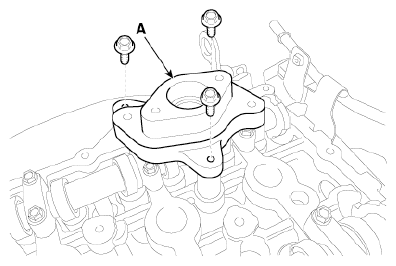

3. Remove it by breaking the center of E-CVVT motor plug (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • Remove after 30 minutes of switching "OFF" the ignition to drain out the oil inside the E-CVVT motor plug.
   • Do not tilt the front of engine (timing chain cover side) downward as residual oil may flow out during E-CVVT motor plug removal.
   • If oil flows out during E-CVVT motor plug removal, wipe off immediately and block the motor shaft inlet with a clean towel.

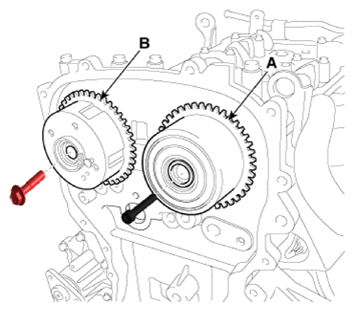

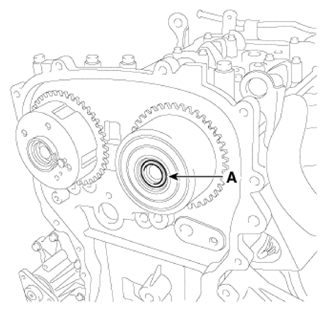

4. Disconnect the intake E-CVVT assembly (A) and exhaust CVVT assembly (B).

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

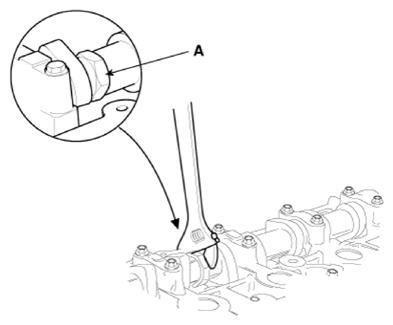

   When installing the CVVT assembly bolt, hold the camshaft with a wrench to prevent the camshaft from rotating.

   Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the camshaft.

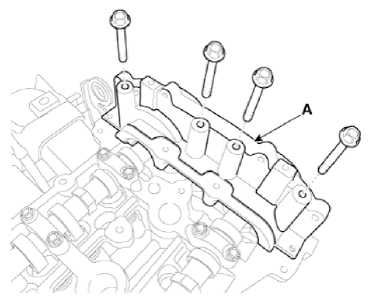

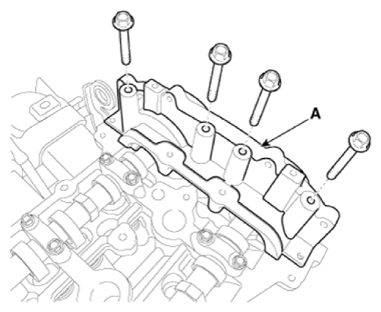

   1. Remove the front camshaft bearing cap (A) with the upper bearing.

      Courtesy of KIA MOTORS AMERICA, INC.

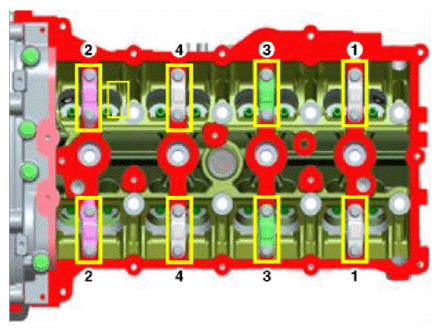

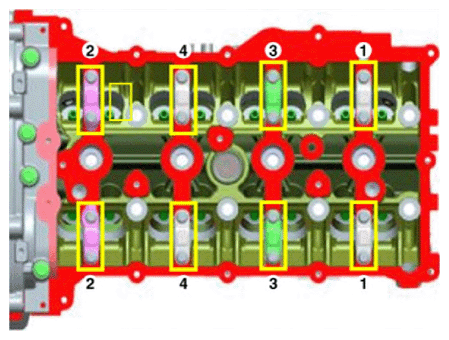

   2. Remove the camshaft bearing caps in the sequence shown.
      Fig 1: Camshaft Bearing Caps Loosening Sequence

      Courtesy of KIA MOTORS AMERICA, INC.

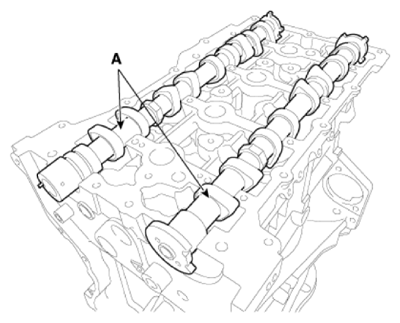

   3. Remove the camshafts (A).

      Courtesy of KIA MOTORS AMERICA, INC.

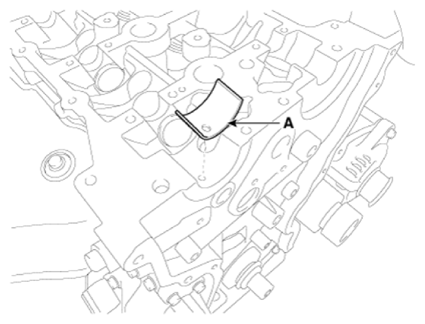

   4. Remove the exhaust camshaft lower bearing (A).

Courtesy of KIA MOTORS AMERICA, INC.
