Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the RH front wheel.
(Refer to "WHEEL ")
Remove the engine room under cover.
(Refer to "ENGINE ROOM UNDER COVER ")

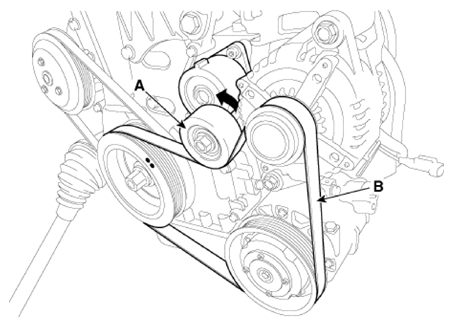

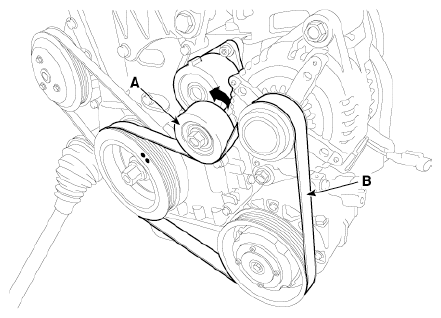

For release the tension, turn the drive belt tensioner (A) counterclockwise then remove the drive belt (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the water pump belt.

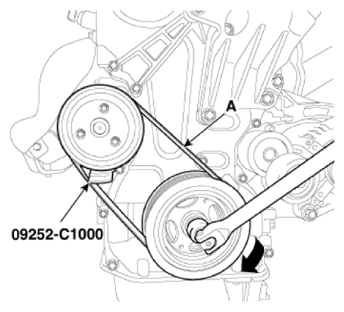

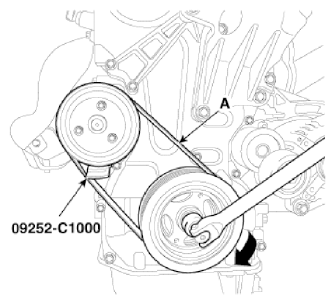

1. Insert the SST (09252-C1000) between the water pump pulley and the water pump belt.
2. Remove the water pump belt (A) by turning the damper pulley clockwise.
