Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Remove the drive belt.
(Refer to "DRIVE BELT ")

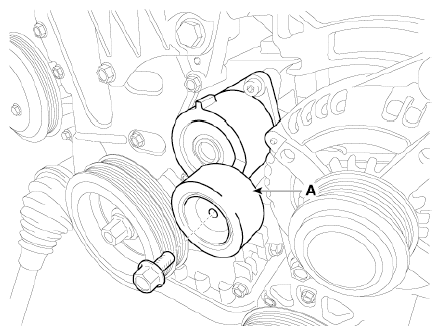

Remove the drive belt auto tensioner pulley (A).
Tightening torque:

53.9 - 63.7 N.m (5.5 - 6.5 kg.m, 39.8 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Information

Tensioner pulley bolt is left-hands screw.

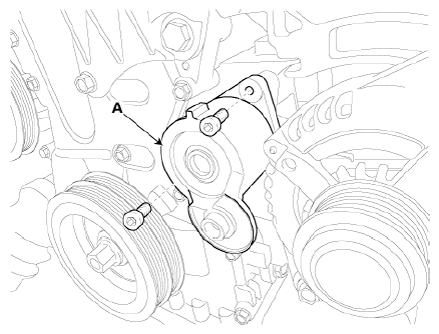

Remove the drive belt tensioner (A).
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
