Removal And Installation

(Refer to "DRIVE BELT ")

(Refer to "ENGINE ROOM UNDER COVER ")

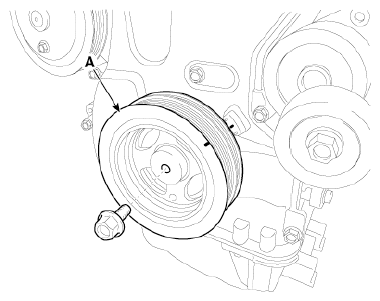

Tightening torque:

46.1 - 51.9 N.m (4.7 - 5.3 kgf.m, 33.9 - 38.3 lb.ft) + [78° - 82°]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: There are two methods to hold the ring gear when installing or removing the crankshaft damper pulley.

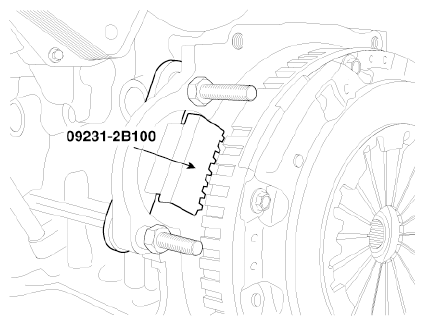

• Install the SST (09231-2B100) to hold the ring gear after removing the starter.

  Courtesy of KIA MOTORS AMERICA, INC.

• Install the SST (09231-3D100) to hold the ring gear after removing the dust cover.

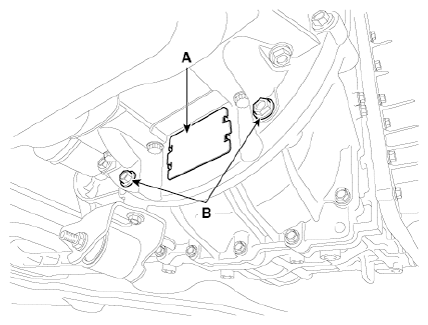

1. Remove the dust cover (A) on the bottom of the ladder frame and unfasten the two transaxle mounting bolts (B).

   Courtesy of KIA MOTORS AMERICA, INC.

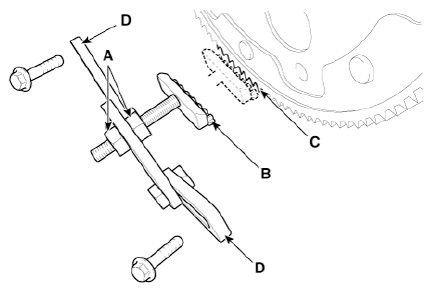

2. Adjust the length of the holder nuts (A) so that the front plate of the holder (B) puts in the ring gear (C) teeth.
3. Adjust the angle of the links (D) so that the two transaxle mounting bolts can be fastened to the original mounted holes.

   Courtesy of KIA MOTORS AMERICA, INC.

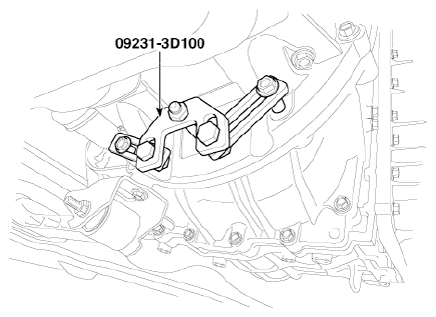

4. Install the SST (09231-3D100) using the two transaxle mounting bolts and spacers. Tighten the bolts and nuts of the holder and links securely.

Courtesy of KIA MOTORS AMERICA, INC.
