Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Open the fuel filler door and then remove the filler-neck installation screw (A).

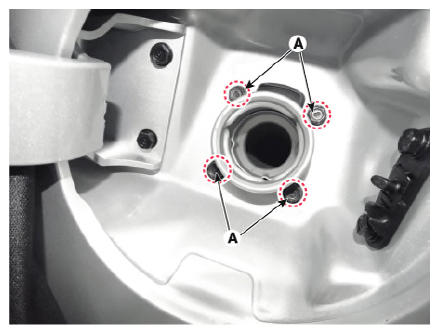

    G12932928Courtesy of KIA MOTORS AMERICA, INC.
  3. Lift the vehicle.
  4. Remove the rear-LH wheel, tire, and the inner wheel house.
  5. Remove the rear sub frame.

    (Refer to Suspension System - "REAR CROSS MEMBER ")

  6. Disconnect the canister close valve connector (A).

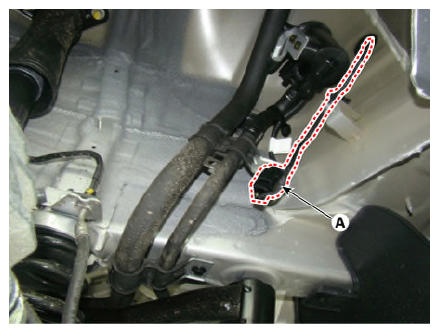

    G12932929Courtesy of KIA MOTORS AMERICA, INC.
  7. Disconnect the fuel filler hose (A).
  8. Disconnect the ventilation hose (B) from the fuel tank air filter.

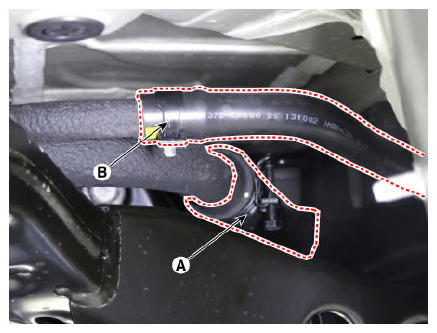

    G12932930Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the filler-neck assembly from the vehicle after removing the bracket installation bolt (A).

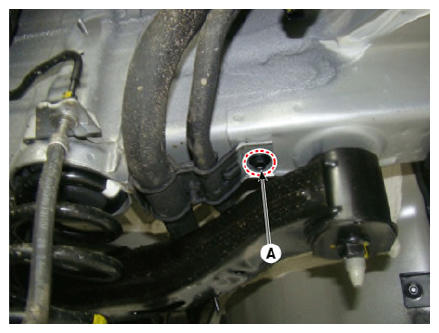

G12932931Courtesy of KIA MOTORS AMERICA, INC.
