Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "REMOVAL ")

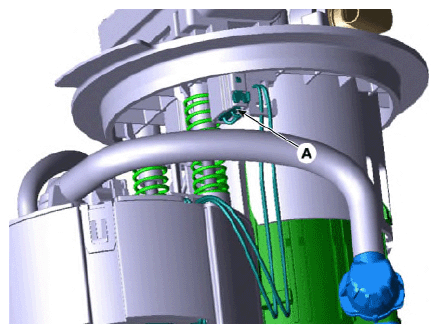

  2. Disconnect the fuel sender connector (A).
    G12932899Courtesy of KIA MOTORS AMERICA, INC.

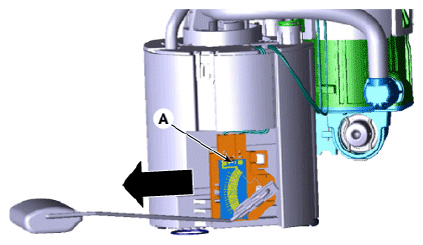

  3. Remove the fuel sender (A) after releasing the fix hook.
G12932900Courtesy of KIA MOTORS AMERICA, INC.

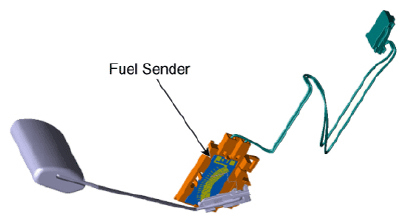

G12932901Courtesy of KIA MOTORS AMERICA, INC.
