Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "REMOVAL ")

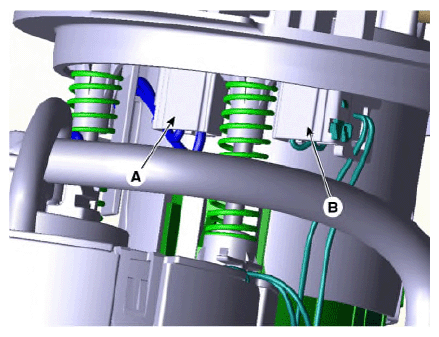

  2. Disconnect the electric pump wiring connector (A), and the fuel sender connector (B).
    G12932891Courtesy of KIA MOTORS AMERICA, INC.

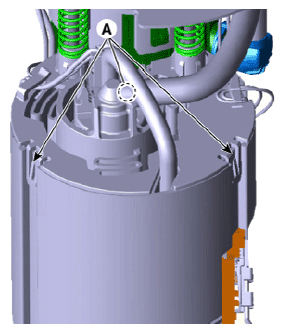

  3. Remove the reservoir-cup after releasing the fixing hook (A).
    G12932892Courtesy of KIA MOTORS AMERICA, INC.

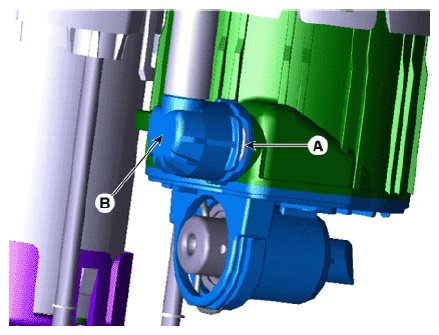

  4. Remove the fixing clip (A), and then disconnect the fuel tube (B).
    G12932893Courtesy of KIA MOTORS AMERICA, INC.

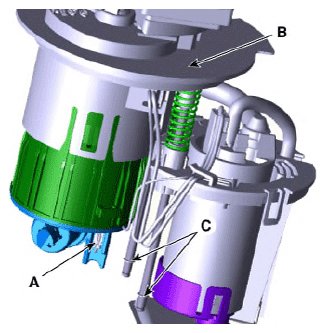

  5. Disconnect the ground cable (A).
  6. Remove the head assembly (B) after removing the cushion pipe fixing clip (C).
    G12932894Courtesy of KIA MOTORS AMERICA, INC.

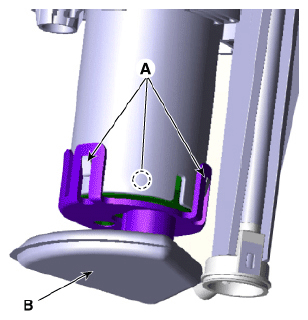

  7. Remove the pre-filter (B) after releasing the fixing hooks (A).
    G12932895Courtesy of KIA MOTORS AMERICA, INC.

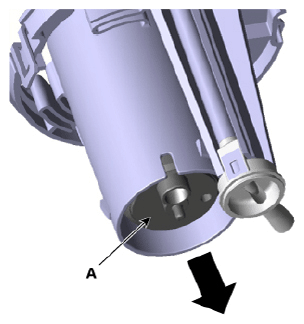

  8. Remove the fuel pump motor (A) in the direction of an arrow.
G12932896Courtesy of KIA MOTORS AMERICA, INC.

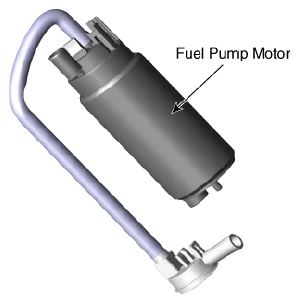

G12932897Courtesy of KIA MOTORS AMERICA, INC.
