Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the rear seat cushion.
(Refer to Body- "REAR SEAT ASSEMBLY ")

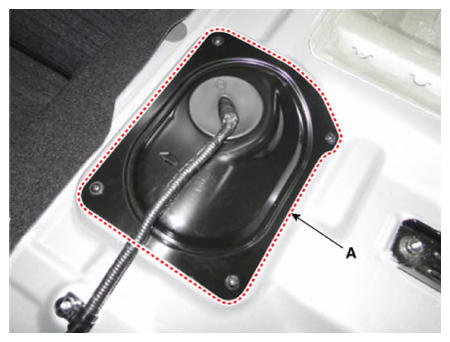

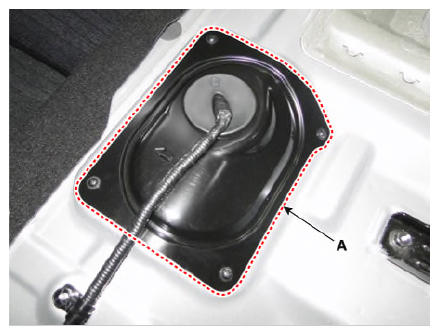

- Remove the fuel pump service cover (A).

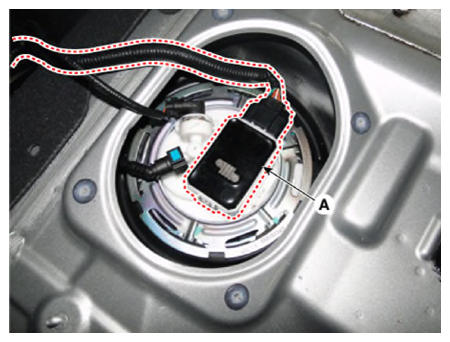

- Disconnect the fuel pump control module connector (A).
- Remove the fuel pressure control module (A) after removing the screws.
