Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat cushion.

    (Refer to Body- "REAR SEAT ASSEMBLY ")

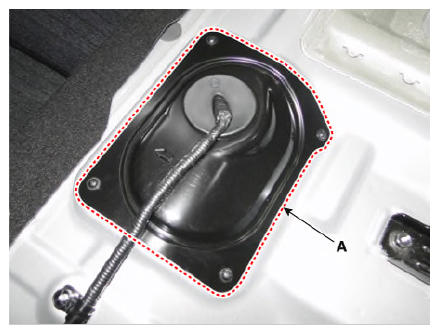

  3. Remove the fuel pump service cover (A).
    G12932916Courtesy of KIA MOTORS AMERICA, INC.

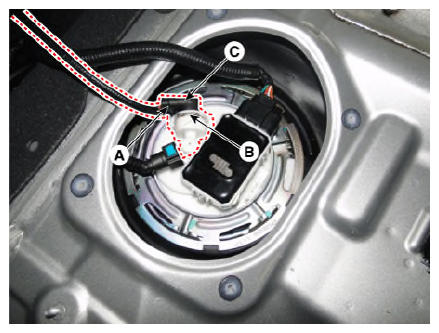

  4. Disconnect the fuel pressure sensor connector (A).
  5. Remove the fuel pressure sensor fixing pin (B).
  6. Remove the fuel pressure sensor (C) from the fuel pump.
G12932917Courtesy of KIA MOTORS AMERICA, INC.
